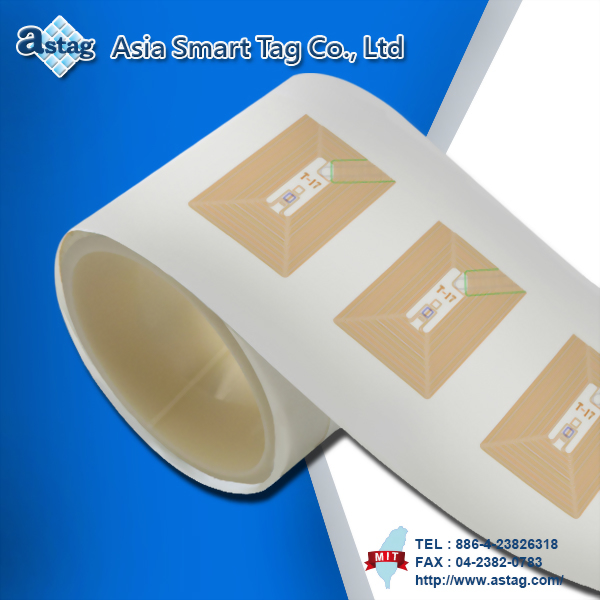

Label

Model : PLH020026

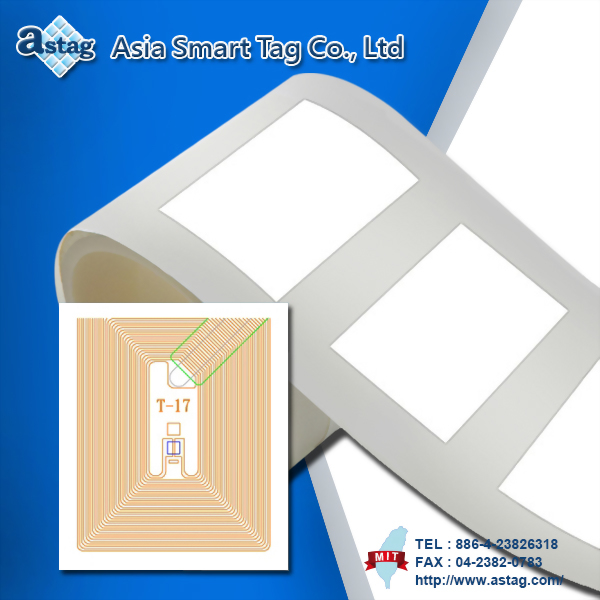

Inlay Label
Iteam number PIH016022 PLH020026
Size 16 x 22 mm(L x W) 20 x 26 mm(L x W)
Frequency band 13.56 MHz ±3%
Read range
(Depends on the reader) 		Up to 3cm
Testing reader PRH578
Transmission principle passive
Antenna substrate PET
Antenna material copper
Label Cover material - Glossy Paper
(PP PEPA Paper)
Tube material ABS
Tube size 3 Inch
Package 1000 pcs/roll , 4 roll/carton
Operating temperature -30°C ~ 75°C
Storage temperature -20°C ~ 35°C
ISO standard ISO 15693
IC item I-code-SLI series
※Any IC is acceptable

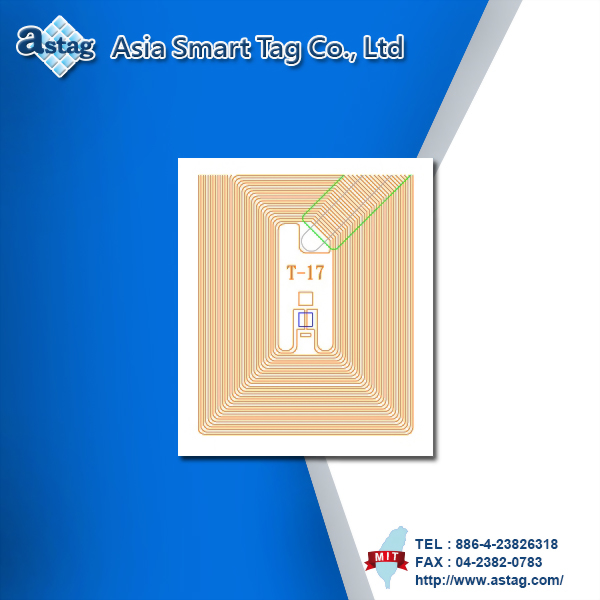

Dimensions



Inlay Size Information　　　 　　　　　(Unit:mm)
X axis Y axis
Position Size Tolerance Position Size Tolerance
A 16 ±0.2 B 22 ±0.2
C 32 ±0.3 D 40 ±0.3
E 7 ±0.2 F 9 ±0.5
G 2 ±0.1 H 8 ±0.1
I 76.2 ±0.5 Frequency 13.56Mhz ±3%

Label Size Information　　 　　　　　　(Unit:mm)
X axis Y axis
Position Size Tolerance Position Size Tolerance
A 16 ±0.2 B 22 ±0.2
C 20 ±0.2 D 26 ±0.2
E 36 ±1.5 F 50 ±1
G 2 ±1.5 H 2 ±1.5
I 16 ±1.5 J 12 ±1.5
K 76.2 ±0.5 Frequency 13.56Mhz ±3%
