Label

Model : PLH024033-T15
Inlay Label
Iteam number PIH020029-T15 PLH024033-T15
Size 20 x 29 mm(L x W) 24 x 33 mm(L x W)
Frequency band 13.56 MHz ±3%
Read range
(Depends on the reader) 		Up to 3cm
Testing reader PRH578
Transmission principle passive
Antenna substrate PET
Antenna material copper
Label Cover material - Glossy Paper
(PP PEPA Paper)
Tube material ABS
Tube size 3 Inch
Package 1000 pcs/roll , 4 roll/carton
Operating temperature -30°C ~ 75°C
Storage temperature -20°C ~ 35°C
ISO standard ISO 14443A
IC item Mifare S50
Mifare S50 UID 7 Byte
Mifare series
※Any IC is acceptable

Dimensions



Inlay Size Information　　　 　　　　　(Unit:mm)
X axis Y axis
Position Size Tolerance Position Size Tolerance
A 20 ±0.2 B 29 ±0.2
C 32 ±0.3 D 40 ±0.3
E1 6 ±0.2 F 5.5 ±0.5
E2 3.5 ±0.2 H 5 ±0.1
G 2.5 ±0.1 Frequency 13.56Mhz ±3%
I 76.2 ±0.5

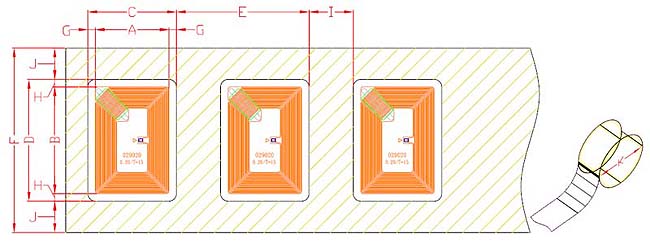

Label Size Information　　 　　　　　　(Unit:mm)
X axis Y axis
Position Size Tolerance Position Size Tolerance
A 20 ±0.2 B 29 ±0.2
C 24 ±0.2 D 33 ±0.2
E 36 ±1.5 F 50 ±1
G 2 ±1.5 H 2 ±1.5
I 12 ±1.5 J 8.5 ±1.5
K 76.2 ±0.5 Frequency 13.56Mhz ±3%
