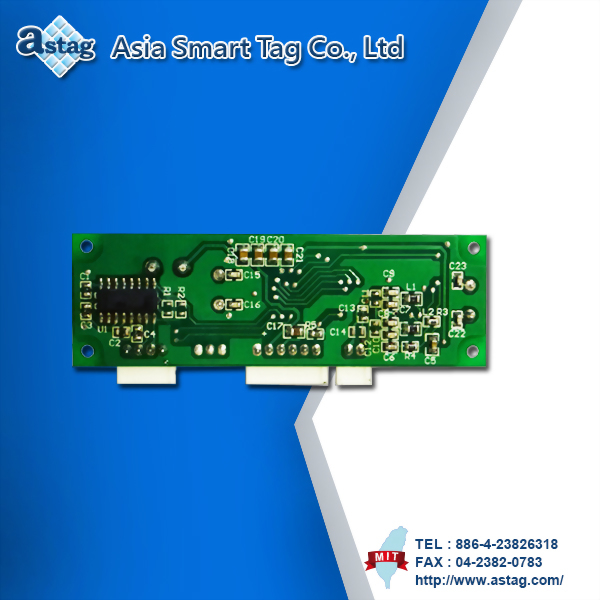

HF RFID Reader Module – UR

Model : PMHNR12R
  • ．UART interface
  • ．Wiegand,RS-232,RS-485,BLE,WiFi  can be option
  • ．External antenna connectivity
  • ．data transmission can customizable
  • ．Buzzer Reminder
  • Interface HF RFID Reader Module – UART
    Part number PMHNR12R
    Frequency band 13.56 MHz
    Read range Up to 30 mm(depend on Tag)
    Host interface UART
    Modulation ASK
    FSK
    PSK
    Transfer rate 848 Kbps(customizable)
    Serial protocol 9600, N, 8, 1(customizable)
    Input voltage range 5V
    UART interface voltage 5V
    Current consumption
    (Dynamic Mode)     		73.2mA
    Operating temperature -30℃ to +65 ℃
    Dimensions 70.8(L) x 22.6(W) x 6.2(H) mm

    Interface
    Product
    number     		PMH-NR12R PMH-NR12U PMH-NR12I PMH-NR12W
    Interface UR USB I2C WEG
    Product
    number     		PMH-NR12B PMH-NR12D PMH-NR12L PMH-NR12F
    Interface RS232 RS485 BLE WIFI

    Supported
    Standard Manufacturer Tag Brand UID Read Write Applications
    ISO 14443A Mifare S50 Y Y Y Transportation
    Access Control
    Mifare S50 UID 7 Byte Y Y Y
    Mifare S50 UID 7 Byte Y Y Y
    Mifare S70 Y Y Y
    Mifare Ultralight Y Y Y
    Mifare Ultralight EV 1 Y N N
    Mifare Ultralight C Y N N
  • Interface HF RFID Reader Module – UART
    Part number PMHNR12R
    Frequency band 13.56 MHz
    Read range Up to 30 mm(depend on Tag)
    Host interface IO
    Modulation ASK
    FSK
    PSK
    Transfer rate 848 Kbps(customizable)
    Serial protocol 9600, N, 8, 1(customizable)
    Input voltage range 5V
    UART interface voltage 5V
    Current consumption
    (Dynamic Mode)     		73.2mA
    Operating temperature -30℃ to +65 ℃
    Dimensions 70.8(L) x 22.6(W) x 6.2(H) mm

    Interface
    Product
    number     		PMH-NR12R PMH-NR12U PMH-NR12I PMH-NR12W
    Interface UR USB I2C WEG
    Product
    number     		PMH-NR12B PMH-NR12D PMH-NR12L PMH-NR12F
    Interface RS232 RS485 BLE WIFI

    Supported
    Standard Manufacturer Tag Brand UID Read Write Applications
    ISO 14443A Mifare S50 Y Y Y Transportation
    Access Control
    Mifare S50 UID 7 Byte Y Y Y
    Mifare S50 UID 7 Byte Y Y Y
    Mifare S70 Y Y Y
    Mifare Ultralight Y Y Y
    Mifare Ultralight EV 1 Y N N
    Mifare Ultralight C Y N N

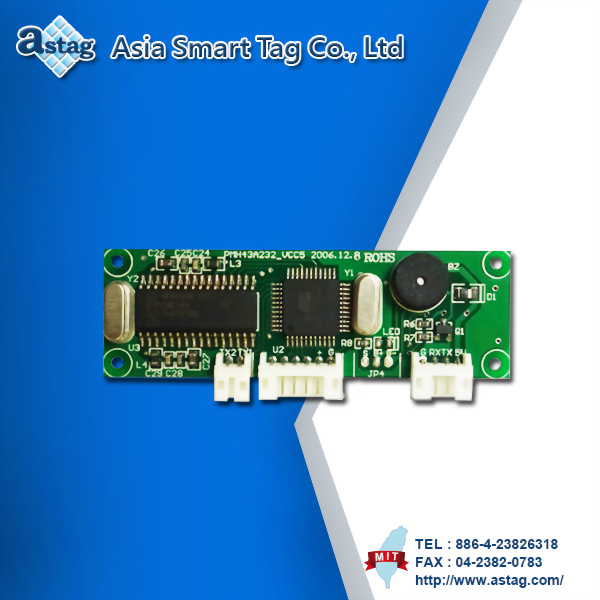

  • pmhnr12r-rs232.jpg
    Interface HF RFID Reader Module – UART
    Part number PMHNR12R
    Frequency band 13.56 MHz
    Read range Up to 30 mm(depend on Tag)
    Host interface RS-232
    Modulation ASK
    FSK
    PSK
    Transfer rate 848 Kbps(customizable)
    Serial protocol 9600, N, 8, 1(customizable)
    Input voltage range 5V
    UART interface voltage 5V
    Current consumption
    (Dynamic Mode)     		73.2mA
    Operating temperature -30℃ to +65 ℃
    Dimensions 70.8(L) x 22.6(W) x 6.2(H) mm

    Interface
    Product
    number     		PMH-NR12R PMH-NR12U PMH-NR12I PMH-NR12W
    Interface UR USB I2C WEG
    Product
    number     		PMH-NR12B PMH-NR12D PMH-NR12L PMH-NR12F
    Interface RS232 RS485 BLE WIFI

    Supported
    Standard Manufacturer Tag Brand UID Read Write Applications
    ISO 14443A Mifare S50 Y Y Y Transportation
    Access Control
    Mifare S50 UID 7 Byte Y Y Y
    Mifare S50 UID 7 Byte Y Y Y
    Mifare S70 Y Y Y
    Mifare Ultralight Y Y Y
    Mifare Ultralight EV 1 Y N N
    Mifare Ultralight C Y N N
  • Interface HF RFID Reader Module – UART
    Part number PMHNR12R
    Frequency band 13.56 MHz
    Read range Up to 30 mm(depend on Tag)
    Host interface RS485
    Modulation ASK
    FSK
    PSK
    Transfer rate 848 Kbps(customizable)
    Serial protocol 9600, N, 8, 1(customizable)
    Input voltage range 5V
    UART interface voltage 5V
    Current consumption
    (Dynamic Mode)     		73.2mA
    Operating temperature -30℃ to +65 ℃
    Dimensions 70.8(L) x 22.6(W) x 6.2(H) mm

    Interface
    Product
    number     		PMH-NR12R PMH-NR12U PMH-NR12I PMH-NR12W
    Interface UR USB I2C WEG
    Product
    number     		PMH-NR12B PMH-NR12D PMH-NR12L PMH-NR12F
    Interface RS232 RS485 BLE WIFI

    Supported
    Standard Manufacturer Tag Brand UID Read Write Applications
    ISO 14443A Mifare S50 Y Y Y Transportation
    Access Control
    Mifare S50 UID 7 Byte Y Y Y
    Mifare S50 UID 7 Byte Y Y Y
    Mifare S70 Y Y Y
    Mifare Ultralight Y Y Y
    Mifare Ultralight EV 1 Y N N
    Mifare Ultralight C Y N N
  • Interface HF RFID Reader Module – UART
    Part number PMHNR12R
    Frequency band 13.56 MHz
    Read range Up to 30 mm(depend on Tag)
    Host interface BLE
    Modulation ASK
    FSK
    PSK
    Transfer rate 848 Kbps(customizable)
    Serial protocol 9600, N, 8, 1(customizable)
    Input voltage range 5V
    UART interface voltage 5V
    Current consumption
    (Dynamic Mode)     		73.2mA
    Operating temperature -30℃ to +65 ℃
    Dimensions 70.8(L) x 22.6(W) x 6.2(H) mm

    Interface
    Product
    number     		PMH-NR12R PMH-NR12U PMH-NR12I PMH-NR12W
    Interface UR USB I2C WEG
    Product
    number     		PMH-NR12B PMH-NR12D PMH-NR12L PMH-NR12F
    Interface RS232 RS485 BLE WIFI

    Supported
    Standard Manufacturer Tag Brand UID Read Write Applications
    ISO 14443A Mifare S50 Y Y Y Transportation
    Access Control
    Mifare S50 UID 7 Byte Y Y Y
    Mifare S50 UID 7 Byte Y Y Y
    Mifare S70 Y Y Y
    Mifare Ultralight Y Y Y
    Mifare Ultralight EV 1 Y N N
    Mifare Ultralight C Y N N
  • Interface HF RFID Reader Module – UART
    Part number PMHNR12R
    Frequency band 13.56 MHz
    Read range Up to 30 mm(depend on Tag)
    Host interface Wifi (option)
    Modulation ASK
    FSK
    PSK
    Transfer rate 848 Kbps(customizable)
    Serial protocol 9600, N, 8, 1(customizable)
    Input voltage range 5V
    UART interface voltage 5V
    Current consumption
    (Dynamic Mode)     		73.2mA
    Operating temperature -30℃ to +65 ℃
    Dimensions 70.8(L) x 22.6(W) x 6.2(H) mm

    Interface
    Product
    number     		PMH-NR12R PMH-NR12U PMH-NR12I PMH-NR12W
    Interface UR USB I2C WEG
    Product
    number     		PMH-NR12B PMH-NR12D PMH-NR12L PMH-NR12F
    Interface RS232 RS485 BLE WIFI

    Supported
    Standard Manufacturer Tag Brand UID Read Write Applications
    ISO 14443A Mifare S50 Y Y Y Transportation
    Access Control
    Mifare S50 UID 7 Byte Y Y Y
    Mifare S50 UID 7 Byte Y Y Y
    Mifare S70 Y Y Y
    Mifare Ultralight Y Y Y
    Mifare Ultralight EV 1 Y N N
    Mifare Ultralight C Y N N

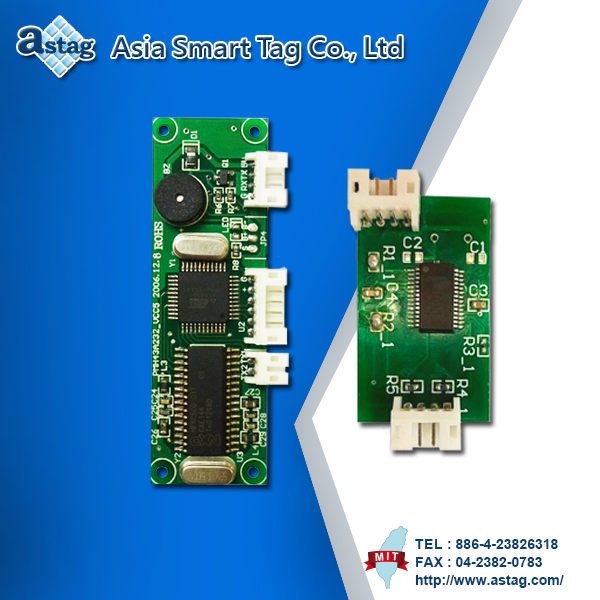

  • pmhnr12r-vcp
    Interface HF RFID Reader Module – UART
    Part number PMHNR12R
    Frequency band 13.56 MHz
    Read range Up to 30 mm(depend on Tag)
    Host interface (USB)VCP
    Modulation ASK
    FSK
    PSK
    Transfer rate 848 Kbps(customizable)
    Serial protocol 9600, N, 8, 1(customizable)
    Input voltage range 5V
    UART interface voltage 5V
    Current consumption
    (Dynamic Mode)     		73.2mA
    Operating temperature -30℃ to +65 ℃
    Dimensions 70.8(L) x 22.6(W) x 6.2(H) mm

    Interface
    Product
    number     		PMH-NR12R PMH-NR12U PMH-NR12I PMH-NR12W
    Interface UR USB I2C WEG
    Product
    number     		PMH-NR12B PMH-NR12D PMH-NR12L PMH-NR12F
    Interface RS232 RS485 BLE WIFI

    Supported
    Standard Manufacturer Tag Brand UID Read Write Applications
    ISO 14443A Mifare S50 Y Y Y Transportation
    Access Control
    Mifare S50 UID 7 Byte Y Y Y
    Mifare S50 UID 7 Byte Y Y Y
    Mifare S70 Y Y Y
    Mifare Ultralight Y Y Y
    Mifare Ultralight EV 1 Y N N
    Mifare Ultralight C Y N N
