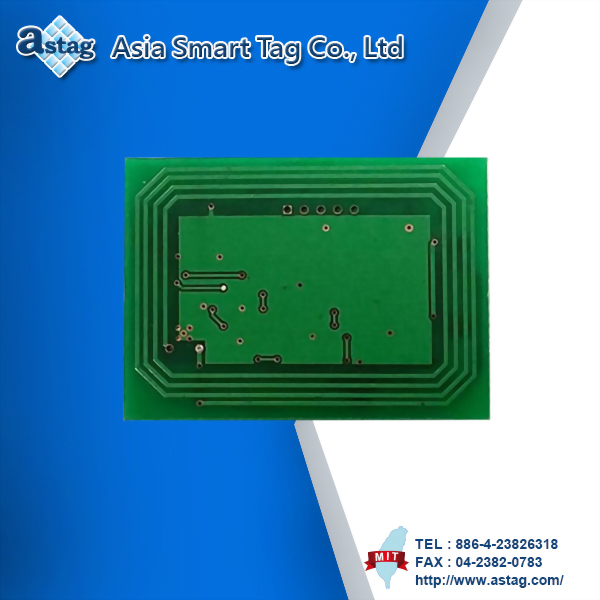

HF RFID Reader Module

Model : PMH-SC11R-01
  • ．UART interface
  • ．Wiegand,RS-232,RS-485,BLE,WiFi can be option
  • ．On-board Antenna
  • ．Mini size for flexible Housing design
  • ．External antenna connectivity
  • ．Data transmission can customizable
  • Interface HF RFID Reader Module
    Part number PMH-SC11R-01
    Frequency band 13.56 MHz
    Read range Up to 30 mm(depend on Tag)
    Host interface UART
    Modulation ASK
    FSK
    PSK
    Transfer rate 848 Kbps(customizable)
    Serial protocol 57600, N, 8, 1(customizable)
    Input voltage range 4 V to 6 V DC
    UART interface voltage 3.3 V DC
    Operating temperature -30℃ to +65 ℃

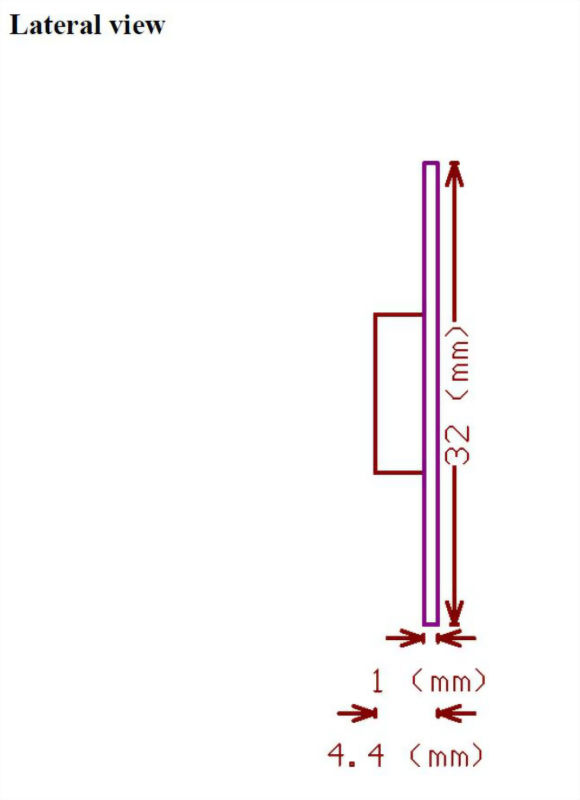

    Dimensions 43.3(L) x 32.4(W) x 4.55(H) mm

    Interface
    Product
    number     		PMH-SC11R-01 PMH-SC11U-01 PMH-SC11I-01 PMH-SC11W-01
    Interface UR USB I2C WEG
    Product
    number     		PMH-SC11B-01 PMH-SC11D-01 PMH-SC11L-01 PMH-SC11F-01
    Interface RS232 RS485 BLE WIFI

    Supported
    Standards Manufacturer Tag Brand UID Read Write Applications
    ISO 15693 NXP I-Code 2(SLI) Y Y Y Library
    Medicine
    Supply Chain
  • Interface HF RFID Reader Module
    Part number PMH-SC11W-01
    Frequency band 13.56 MHz
    Read range Up to 30 mm(depend on Tag)
    Host interface Wiegand
    Modulation ASK
    FSK
    PSK
    Transfer rate 848 Kbps(customizable)
    Serial protocol 57600, N, 8, 1(customizable)
    Input voltage range 4 V to 6 V DC
    UART interface voltage 3.3 V DC
    Operating temperature -30℃ to +65 ℃
    Dimensions 43.3(L) x 32.4(W) x 4.55(H) mm

    Interface
    Product
    number     		PMH-SC11R-01 PMH-SC11U-01 PMH-SC11I-01 PMH-SC11W-01
    Interface UR USB I2C WEG
    Product
    number     		PMH-SC11B-01 PMH-SC11D-01 PMH-SC11L-01 PMH-SC11F-01
    Interface RS232 RS485 BLE WIFI

    Supported
    Standards Manufacturer Tag Brand UID Read Write Applications
    ISO 15693 NXP I-Code 2(SLI) Y Y Y Library
    Medicine
    Supply Chain
  • Interface HF RFID Reader Module
    Part number PMH-SC11B-01
    Frequency band 13.56 MHz
    Read range Up to 30 mm(depend on Tag)
    Host interface RS-232
    Modulation ASK
    FSK
    PSK
    Transfer rate 848 Kbps(customizable)
    Serial protocol 57600, N, 8, 1(customizable)
    Input voltage range 4 V to 6 V DC
    UART interface voltage 3.3 V DC
    Operating temperature -30℃ to +65 ℃
    Dimensions 43.3(L) x 32.4(W) x 4.55(H) mm

    Interface
    Product
    number     		PMH-SC11R-01 PMH-SC11U-01 PMH-SC11I-01 PMH-SC11W-01
    Interface UR USB I2C WEG
    Product
    number     		PMH-SC11B-01 PMH-SC11D-01 PMH-SC11L-01 PMH-SC11F-01
    Interface RS232 RS485 BLE WIFI

    Supported
    Standards Manufacturer Tag Brand UID Read Write Applications
    ISO 15693 NXP I-Code 2(SLI) Y Y Y Library
    Medicine
    Supply Chain
  • Interface HF RFID Reader Module
    Part number PMH-SC11D-01
    Frequency band 13.56 MHz
    Read range Up to 30 mm(depend on Tag)
    Host interface RS-485
    Modulation ASK
    FSK
    PSK
    Transfer rate 848 Kbps(customizable)
    Serial protocol 57600, N, 8, 1(customizable)
    Input voltage range 4 V to 6 V DC
    UART interface voltage 3.3 V DC
    Operating temperature -30℃ to +65 ℃
    Dimensions 43.3(L) x 32.4(W) x 4.55(H) mm

    Interface
    Product
    number     		PMH-SC11R-01 PMH-SC11U-01 PMH-SC11I-01 PMH-SC11W-01
    Interface UR USB I2C WEG
    Product
    number     		PMH-SC11B-01 PMH-SC11D-01 PMH-SC11L-01 PMH-SC11F-01
    Interface RS232 RS485 BLE WIFI

    Supported
    Standards Manufacturer Tag Brand UID Read Write Applications
    ISO 15693 NXP I-Code 2(SLI) Y Y Y Library
    Medicine
    Supply Chain
  • Interface HF RFID Reader Module
    Part number PMH-SC11L-01
    Frequency band 13.56 MHz
    Read range Up to 30 mm(depend on Tag)
    Host interface BLE
    Modulation ASK
    FSK
    PSK
    Transfer rate 848 Kbps(customizable)
    Serial protocol 57600, N, 8, 1(customizable)
    Input voltage range 4 V to 6 V DC
    UART interface voltage 3.3 V DC
    Operating temperature -30℃ to +65 ℃
    Dimensions 43.3(L) x 32.4(W) x 4.55(H) mm

    Interface
    Product
    number     		PMH-SC11R-01 PMH-SC11U-01 PMH-SC11I-01 PMH-SC11W-01
    Interface UR USB I2C WEG
    Product
    number     		PMH-SC11B-01 PMH-SC11D-01 PMH-SC11L-01 PMH-SC11F-01
    Interface RS232 RS485 BLE WIFI

    Supported
    Standards Manufacturer Tag Brand UID Read Write Applications
    ISO 15693 NXP I-Code 2(SLI) Y Y Y Library
    Medicine
    Supply Chain
  • Interface HF RFID Reader Module
    Part number PMH-SC11F-01
    Frequency band 13.56 MHz
    Read range Up to 30 mm(depend on Tag)
    Host interface Wifi (option)
    Modulation ASK
    FSK
    PSK
    Transfer rate 848 Kbps(customizable)
    Serial protocol 57600, N, 8, 1(customizable)
    Input voltage range 4 V to 6 V DC
    UART interface voltage 3.3 V DC
    Operating temperature -30℃ to +65 ℃
    Dimensions 43.3(L) x 32.4(W) x 4.55(H) mm

    Interface
    Product
    number     		PMH-SC11R-01 PMH-SC11U-01 PMH-SC11I-01 PMH-SC11W-01
    Interface UR USB I2C WEG
    Product
    number     		PMH-SC11B-01 PMH-SC11D-01 PMH-SC11L-01 PMH-SC11F-01
    Interface RS232 RS485 BLE WIFI

    Supported
    Standards Manufacturer Tag Brand UID Read Write Applications
    ISO 15693 NXP I-Code 2(SLI) Y Y Y Library
    Medicine
    Supply Chain
