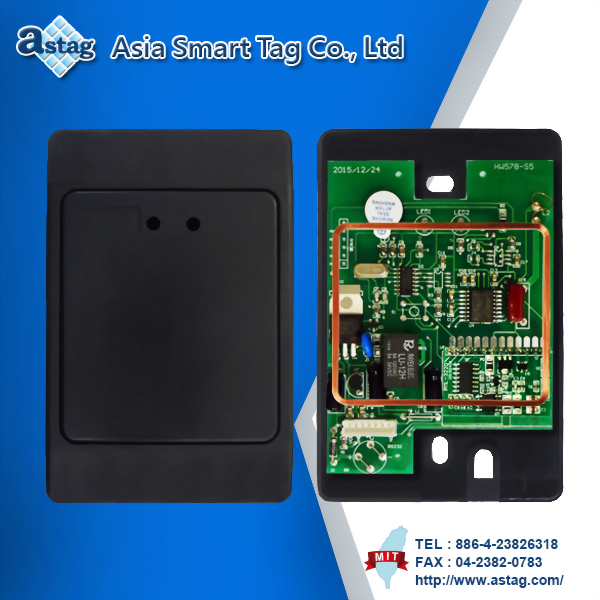

RFID LF Reader Module - UART

Model : PML578R
  • ．UART interface
  • ．Wiegand,RS-232,RS-485,BLE,WiFi can be option
  • ．On-board Antenna
  • ．Mini size for flexible Housing design
  • ．External antenna connectivity
  • ．Data transmission can customizable

  • Interface RFID LF Reader Module - UART
    Part number PML578R
    Frequency band 125 KHz
    Read range Up to 30 mm(depend on Tag)
    Host interface UART
    Modulation ASK
    FSK
    PSK
    Transfer rate 848 Kbps(customizable)
    UART data rate 57600, N, 8, 1(customizable)
    Input voltage range 4V to 6V DC
    UART interface voltage 3.3 V DC
    Current consumption
    (Dynamic Mode)    		 93mA
    Current consumption
    (Standby)    		 4mA
    Operating temperature -30℃ to +65 ℃
    Dimensions 117(L) x 76(W) x 20(H) mm

    Interface
    Product
    number    		 PML578R PML578U PML578I PML578W
    Interface UR USB I2C Wiegand
    Product
    number    		 PML578B PML578D PML578L PML578F
    Interface RS232 RS485 BLE WIFI
  • Interface RFID LF Reader Module - UART
    Part number PML578R
    Frequency band 125 KHz
    Read range Up to 30 mm(depend on Tag)
    Host interface Wig
    Modulation ASK
    FSK
    PSK
    Transfer rate 848 Kbps(customizable)
    UART data rate 57600, N, 8, 1(customizable)
    Input voltage range 4V to 6V DC
    UART interface voltage 3.3 V DC
    Current consumption
    (Dynamic Mode)    		 93mA
    Current consumption
    (Standby)    		 4mA
    Operating temperature -30℃ to +65 ℃
    Dimensions 117(L) x 76(W) x 20(H) mm

    Interface
    Product
    number    		 PML578R PML578U PML578I PML578W
    Interface UR USB I2C Wiegand
    Product
    number    		 PML578B PML578D PML578L PML578F
    Interface RS232 RS485 BLE WIFI
  • Interface RFID LF Reader Module - UART
    Part number PML578R
    Frequency band 125 KHz
    Read range Up to 30 mm(depend on Tag)
    Host interface RS-232
    Modulation ASK
    FSK
    PSK
    Transfer rate 848 Kbps(customizable)
    UART data rate 57600, N, 8, 1(customizable)
    Input voltage range 4V to 6V DC
    UART interface voltage 3.3 V DC
    Current consumption
    (Dynamic Mode)    		 93mA
    Current consumption
    (Standby)    		 4mA
    Operating temperature -30℃ to +65 ℃
    Dimensions 117(L) x 76(W) x 20(H) mm

    Interface
    Product
    number    		 PML578R PML578U PML578I PML578W
    Interface UR USB I2C Wiegand
    Product
    number    		 PML578B PML578D PML578L PML578F
    Interface RS232 RS485 BLE WIFI
  • Interface RFID LF Reader Module - UART
    Part number PML578R
    Frequency band 125 KHz
    Read range Up to 30 mm(depend on Tag)
    Host interface RS-485
    Modulation ASK
    FSK
    PSK
    Transfer rate 848 Kbps(customizable)
    UART data rate 57600, N, 8, 1(customizable)
    Input voltage range 4V to 6V DC
    UART interface voltage 3.3 V DC
    Current consumption
    (Dynamic Mode)    		 93mA
    Current consumption
    (Standby)    		 4mA
    Operating temperature -30℃ to +65 ℃
    Dimensions 117(L) x 76(W) x 20(H) mm

    Interface
    Product
    number    		 PML578R PML578U PML578I PML578W
    Interface UR USB I2C Wiegand
    Product
    number    		 PML578B PML578D PML578L PML578F
    Interface RS232 RS485 BLE WIFI
  • Interface RFID LF Reader Module - UART
    Part number PML578R
    Frequency band 125 KHz
    Read range Up to 30 mm(depend on Tag)
    Host interface BLE
    Modulation ASK
    FSK
    PSK
    Transfer rate 848 Kbps(customizable)
    UART data rate 57600, N, 8, 1(customizable)
    Input voltage range 4V to 6V DC
    UART interface voltage 3.3 V DC
    Current consumption
    (Dynamic Mode)    		 93mA
    Current consumption
    (Standby)    		 4mA
    Operating temperature -30℃ to +65 ℃
    Dimensions 117(L) x 76(W) x 20(H) mm

    Interface
    Product
    number    		 PML578R PML578U PML578I PML578W
    Interface UR USB I2C Wiegand
    Product
    number    		 PML578B PML578D PML578L PML578F
    Interface RS232 RS485 BLE WIFI
  • Interface RFID LF Reader Module - UART
    Part number PML578R
    Frequency band 125 KHz
    Read range Up to 30 mm(depend on Tag)
    Host interface WiFi (option)
    Modulation ASK
    FSK
    PSK
    Transfer rate 848 Kbps(customizable)
    UART data rate 57600, N, 8, 1(customizable)
    Input voltage range 4V to 6V DC
    UART interface voltage 3.3 V DC
    Current consumption
    (Dynamic Mode)    		 93mA
    Current consumption
    (Standby)    		 4mA
    Operating temperature -30℃ to +65 ℃
    Dimensions 117(L) x 76(W) x 20(H) mm

    Interface
    Product
    number    		 PML578R PML578U PML578I PML578W
    Interface UR USB I2C Wiegand
    Product
    number    		 PML578B PML578D PML578L PML578F
    Interface RS232 RS485 BLE WIFI
