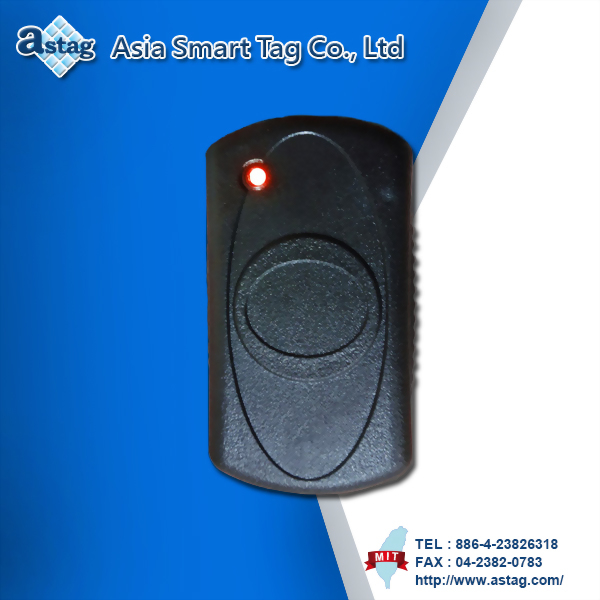

RFID LF Reader Module - USB

Model : PML588U
  • ．High power sawing
  • ．USB interface HID/CCID/Keyboard Wedge
  • ．On-board Antenna
  • ．Mini size for flexible Housing design
  • ．External antenna connectivity
  • Interface RFID LF Reader Module - USB
    Part number PML578U
    Frequency band 125 KHz
    Read range Up to 30 mm(depend on Tag)
    Host interface USB
    Modulation ASK
    FSK
    PSK
    UART data rate 57600, N, 8, 1(customizable)
    Data output Continuous transmission
    Only send data once
    Current consumption
    (Dynamic Mode)    		 93mA
    Current consumption
    (Standby)    		 4mA
    Input voltage 5V USB
    Operating temperature -30℃ to +65 ℃
    Dimensions 78(L) x 45(W) x 17(H) mm

    Interface
    Product
    number    		 PML578H PML578C PML578K
    Interface HID CCID Key board wedge
  • Interface RFID LF Reader Module - USB
    Part number PML578U
    Frequency band 125 KHz
    Read range Up to 30 mm(depend on Tag)
    Host interface HID
    Modulation ASK
    FSK
    PSK
    UART data rate 57600, N, 8, 1(customizable)
    Data output Continuous transmission
    Only send data once
    Current consumption
    (Dynamic Mode)    		 93mA
    Current consumption
    (Standby)    		 4mA
    Input voltage 5V USB
    Operating temperature -30℃ to +65 ℃
    Dimensions 78(L) x 45(W) x 17(H) mm

    Interface
    Product
    number    		 PML578H PML578C PML578K
    Interface HID CCID Key board wedge
  • Interface RFID LF Reader Module - USB
    Part number PML578U
    Frequency band 125 KHz
    Read range Up to 30 mm(depend on Tag)
    Host interface CCID
    Modulation ASK
    FSK
    PSK
    UART data rate 57600, N, 8, 1(customizable)
    Data output Continuous transmission
    Only send data once
    Current consumption
    (Dynamic Mode)    		 93mA
    Current consumption
    (Standby)    		 4mA
    Input voltage 5V USB
    Operating temperature -30℃ to +65 ℃
    Dimensions 78(L) x 45(W) x 17(H) mm

    Interface
    Product
    number    		 PML578H PML578C PML578K
    Interface HID CCID Key board wedge
  • Interface RFID LF Reader Module - USB
    Part number PML578U
    Frequency band 125 KHz
    Read range Up to 30 mm(depend on Tag)
    Host interface Keyboard Wedge(option)
    Modulation ASK
    FSK
    PSK
    UART data rate 57600, N, 8, 1(customizable)
    Data output Continuous transmission
    Only send data once
    Current consumption
    (Dynamic Mode)    		 93mA
    Current consumption
    (Standby)    		 4mA
    Input voltage 5V USB
    Operating temperature -30℃ to +65 ℃
    Dimensions 78(L) x 45(W) x 17(H) mm

    Interface
    Product
    number    		 PML578H PML578C PML578K
    Interface HID CCID Key board wedge
