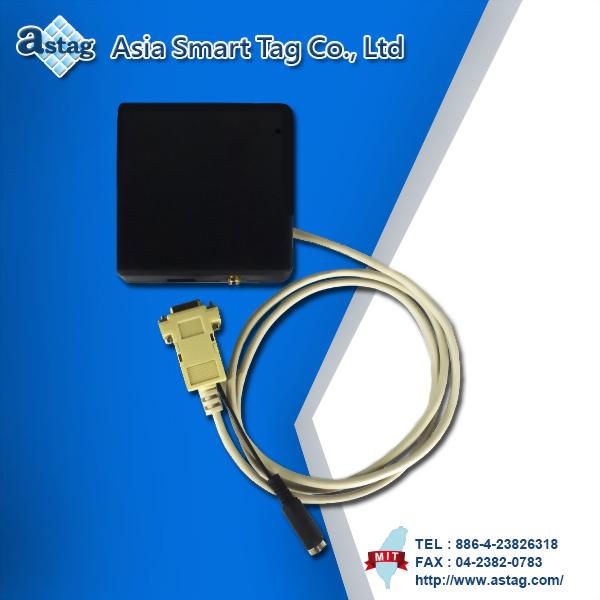

UHF RFID Reader Module
Frequency：860 ~ 960 MHz Band
Dimension：87mm x 87mm x 30mm
Model :
1PMUFF12B01
| Support protocol | UHF EPC G2、ISO-18000-6C | |
|---|---|---|
| Frequency | 860 ~ 960 MHz | |
| Reader dimension | 87mm x 87mm x 30mm | |
| External antenna dimension | 141mm x 87mm x 30mm | |
| Weight | 470 g | |
| Reading range | Around 3m, dependent on ANT type | |
| Power supply | 5 V | |
| Standby current | 15 mA | |
| Dynamic mode | 80 mA | |
| 105 mA | ||
| 260 mA | ||
| Dependent on RF Output Power type | ||
| RF output power | 12 dbm | |
| 18 dbm | ||
| 25 dbm | ||
| Interface | UART | |
| RS232 | ||
| USB | ||
| Serial protocol | 115200, N, 8, 1(option) | |
| USB interface | HID | |
| CCID | ||
| Keyboard wedge (option) | ||
| External control | Reset | |
| Buzzer | ||
| LED | ||
| Control switch | ||
| Operation temperature | 0℃ ~ 40℃ | |
| Storage temperature | 0℃ ~ 30℃ | |
