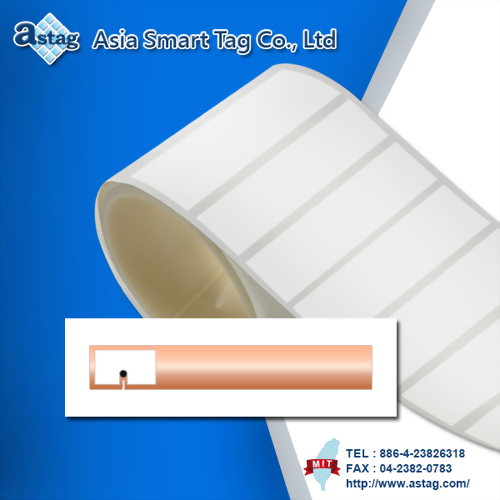

RFID Label

RFID Label

Frequency band：860 ~ 868 MHz；902 ~ 928 MHz
Size：43 x 43 mm,21.5 x 21.5 mm,30 x 30 mm

Q'ty :

Specifications
Applications

Frequency band	860 ~ 868 MHz；902 ~ 928 MHz
Size	43 x 43 mm	21.5 x 21.5 mm	30 x 30 mm
Read range (Depends on the reader)	Up to 10M	Up to 6M	Up to 7M
Testing reader	1PRU258A0R2
Transmission principle	passive
Antenna substrate	PET
Antenna material	Copper
Tube size	3 inch
Operating temperature	-30°C ~ 75°C
Storage temperature	-20°C ~ 75°C
UID	96 bits
EPC	128 bits
ISO standard	ISO 18000-6C / EPC-C1G2
IC	Monza 4E / Monza R6 ALIEN H3 / ALIEN H9 NXP U Code 8 / NXP U Code 9

. UHF far-end tag.
. Can be used in lane system, logistics, warehouse management, with wide practicality.
. Easy to carry and paste.
. Easy to track and manage.
