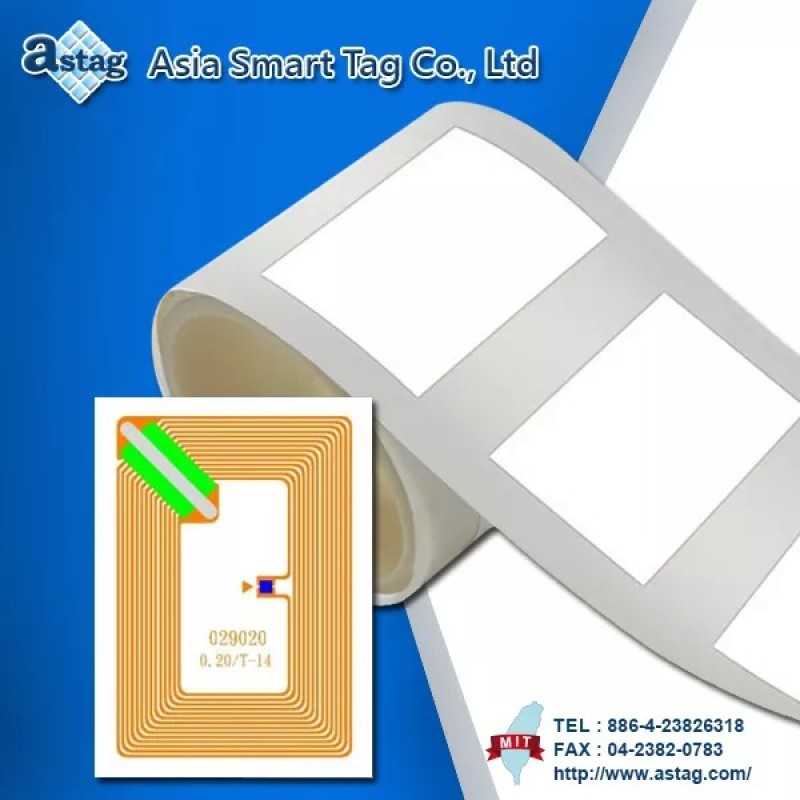

RFID 標籤
規格

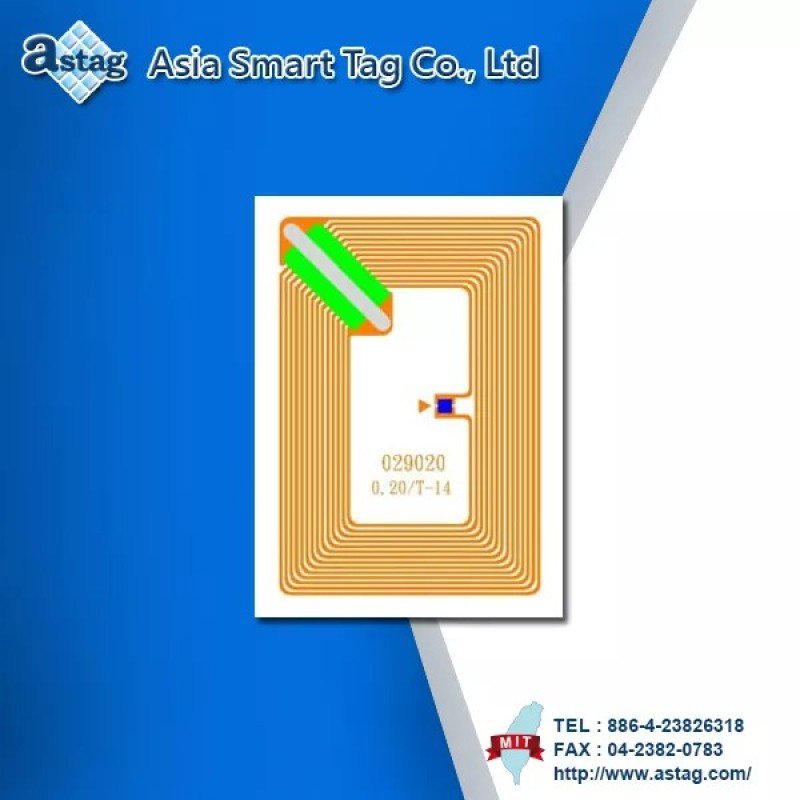

| Inlay | Label | |
| Iteam number | PIH020029-T14 | PLH024033 |
| Size | 20 x 29 mm(L x W) | 24 x 33 mm(L x W) |
| Frequency band | 13.56 MHz ±3% | |
| Read range (Depends on the reader) |
Up to 3cm | |
| Testing reader | PRH578 | |
| Transmission principle | passive | |
| Antenna substrate | PET | |
| Antenna material | Copper | |
| Label Cover material | - | 光面紙 (PP PEPA Paper) |
| Tube material | ABS | |
| Tube size | 3 Inch | |

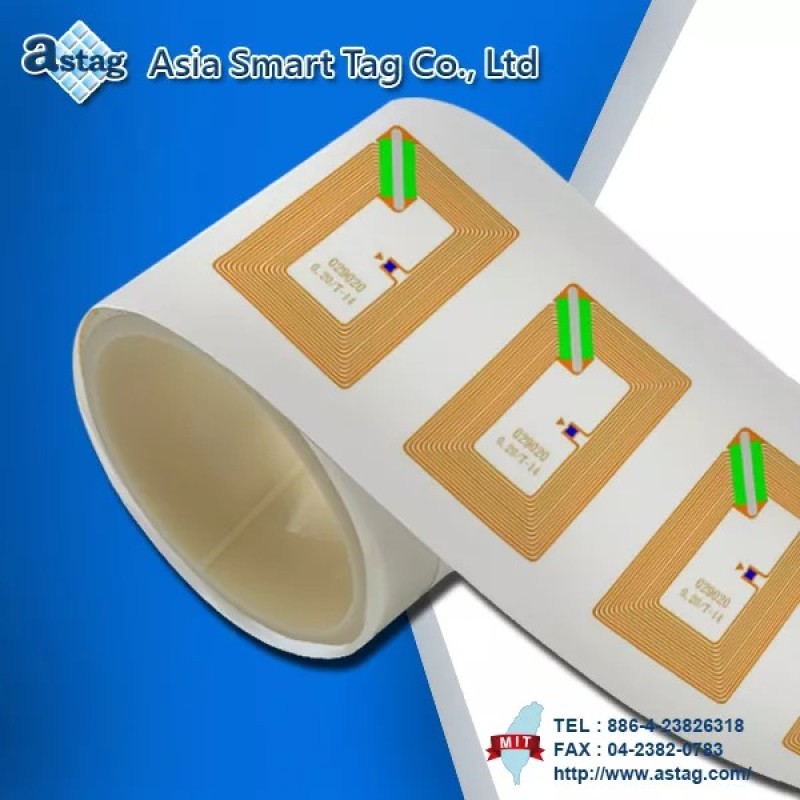

| Package | 1000 pcs/roll , 4 roll/carton | |
| Operating temperature | -30°C ~ 75°C | |
| Storage temperature | -20°C ~ 75°C | |
| ISO standard | ISO-14443A / ISO-14443B / ISO 15693 | |
| IC 項目 | Mifare standard series / I-Code series Mifare desfire series /NFC series / ST25T series ※任何 IC 均可接受 (customizable) |
|
功能
尺寸
| Inlay 尺寸資訊 (單位:mm) | |||||
| X 軸 | Y 軸 | ||||
| 位置 | 尺寸 | 公差 | 位置 | 尺寸 | 公差 |
| A | 20 | ±0.2 | B | 29 | ±0.2 |
| C | 32 | ±0.3 | D | 40 | ±0.3 |
| E1 | 6 | ±0.2 | F | 5.5 | ±0.5 |
| E2 | 3.5 | ±0.2 | H | 5 | ±0.1 |
| G | 2.5 | ±0.1 | Frequency | 13.56Mhz | ±3% |
| I | 76.2 | ±0.5 | |||
標籤
| 標籤尺寸資訊 (單位:mm) | |||||
| X 軸 | Y 軸 | ||||
| 位置 | 尺寸 | 公差 | 位置 | 尺寸 | 公差 |
| A | 20 | ±0.2 | B | 29 | ±0.2 |
| C | 24 | ±0.2 | D | 33 | ±0.2 |
| E | 36 | ±1.5 | F | 50 | ±1 |
| G | 2 | ±1.5 | H | 2 | ±1.5 |
| I | 12 | ±1.5 | J | 8.5 | ±1.5 |
| K | 76.2 | ±0.5 | Frequency | 13.56Mhz | ±3% |
應用程式
- 可用於車輛管理、物流管理、倉儲管理、門禁管理，應用範圍廣泛。
- 品質穩定。
- 便於追蹤與管理。
- 提供客製化服務。
