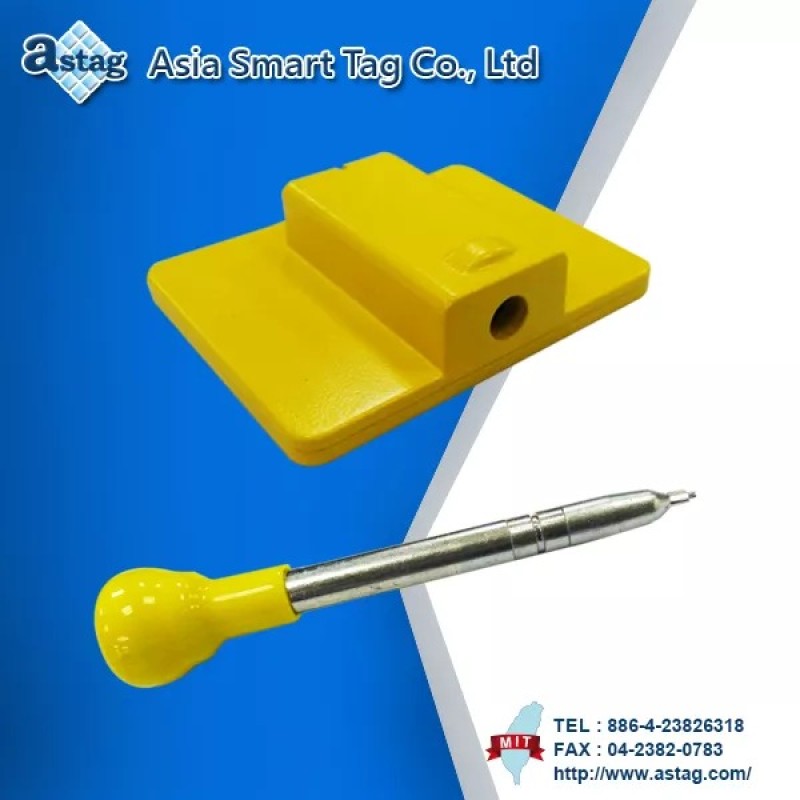

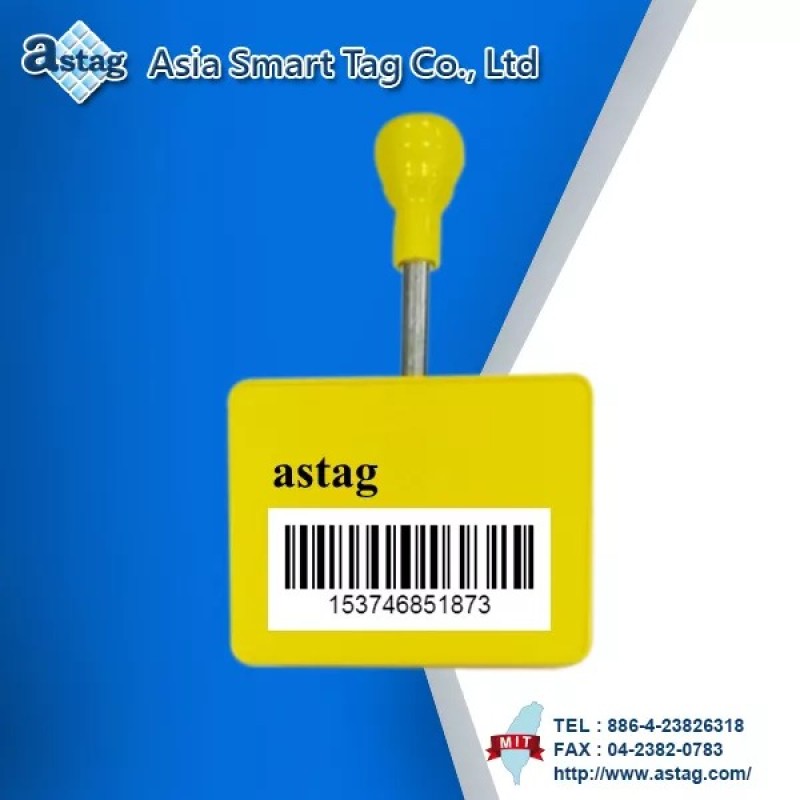

Bolt Seal
Bolt Seal
Type：PTUP7-BOLT-1YISO standard: EPC-C1G2 / ISO 18000-6C
Specifications
| Model | PTUP7-BOLT-1Y |
|
Frequency band |
860~868 MHz；902~930 MHz |
|
ISO standard |
EPC-C1G2 / ISO 18000-6C |
|
Size |
122 x 81 x 19 mm(L x W x H) |
|
Material |
ABS、Stainless steel |
|
Support |
1.Remote monitoring of container status. 2.Container transportation, can facilitate rapid customs clearance. |
|
Seal status (single-use) |
1. “00”-Opened Status-The steel bolt is not inserted. 2. “01”-Closed Status- The steel bolt is inserted. 3. “10”-Tampered Status-The steel bolt was damaged or compromised. 4. “11”-Abnormal Status- To cause damage without altering the appearance. |
|
Tensile |
It can withstand a tensile force of 1000 kg. |
|
Applications |
Port container management, container entry and exit management, fast customs clearance detection management. |
|
Patent |
I861473 |
|
Certificate |
ISO 17712；112TD0606-204-C01、FCC、CE |
Features
This will increase the safety of container movement and ensure the safety of container movement, thereby effectively reducing the customs clearance cost of the industry, while preventing illegal smuggling and creating a safe and convenient customs clearance environment.
．Can not be reused.
．Prevent tampering with data.
．Prevent counterfeiting.
．Fast pass.

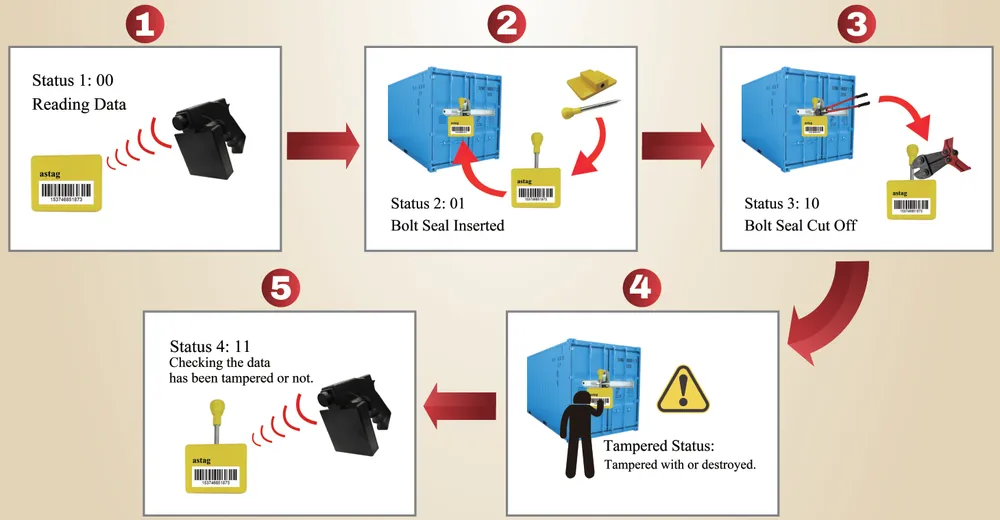

Status Diagram :
Applications
TRANSPORTATION MANAGEMENT
Since the tragic September 11 attacks, there's a highlighted need from US government for terrorist attacks prevention and security. In the US government security plan, it includes RFID H/W, smart seal, etc. to prevent destruction of container or illegal smuggling at safe and scalable solution. These technologies are also used at Taiwan's custom border. Other application: prisoners transportation, oil transportation, or any other transportation that require extreme high level security protection.
