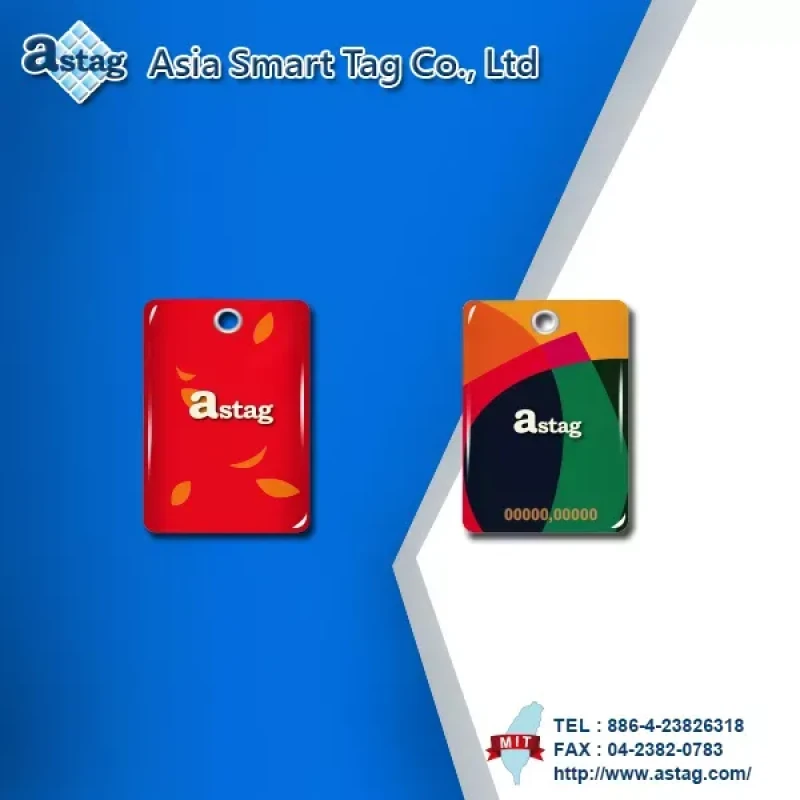

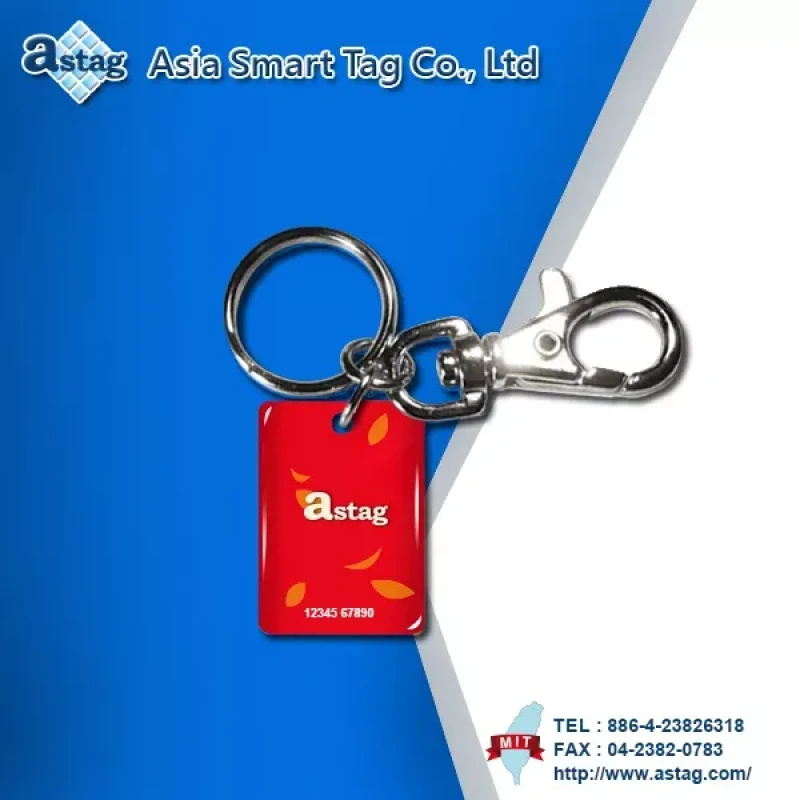

Epoxy Tag
Specifications
| Frequency band | 125 KHz Band |

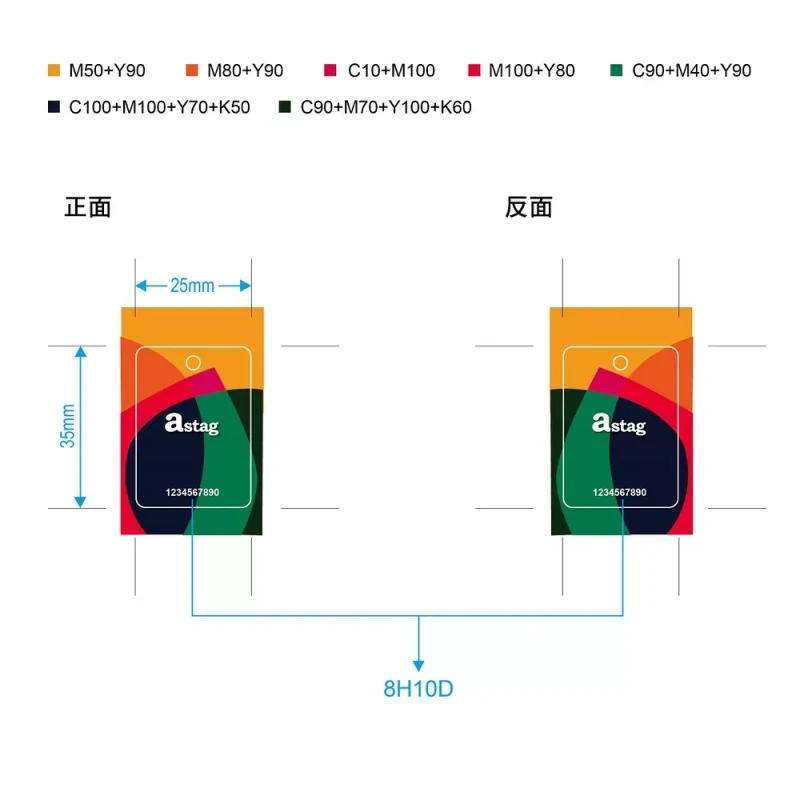

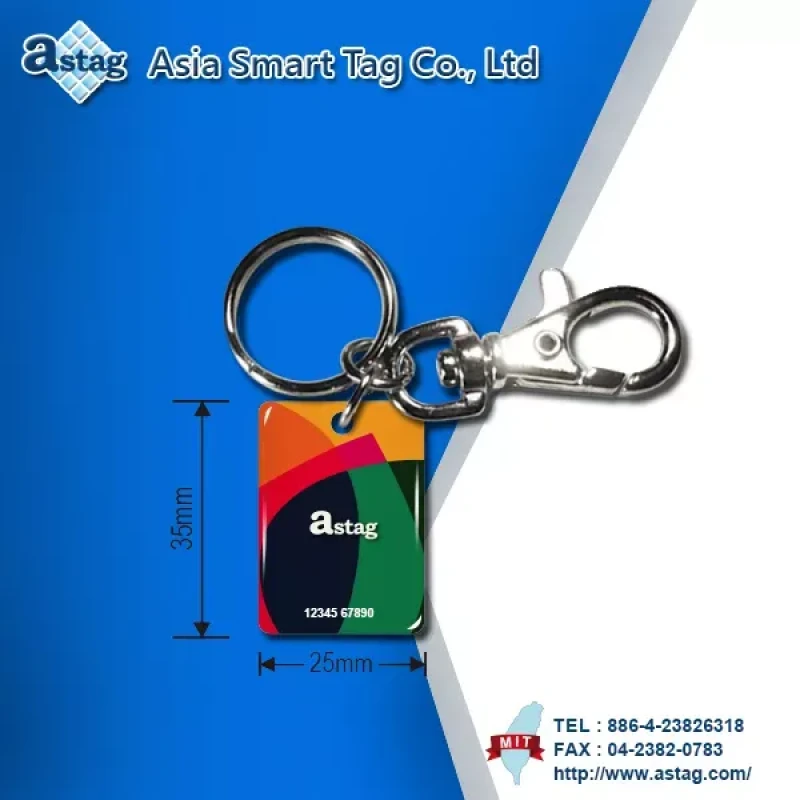

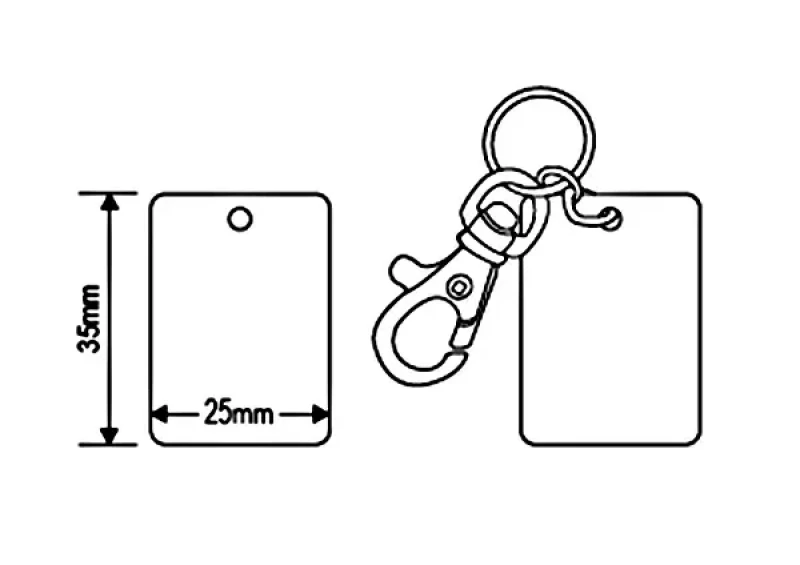

| Size | 35 x 25 x 2 mm(L x W x H) |
| Read range | Up to 5cm(Depends on the reader) |
| Testing reader | PRL578 |
| Tag weight | 3.3 g |
| Material | PVC + Poly |
| Key-ring weight | 8 g |
| Key-ring material | Steel,Iron,Zinc-Alloy |
| Color | Customized color available |
| Waterproof | IP68 |
| Operating temperature | -40°C ~ 60°C |
| Process | Heat-Lamination |
| Package | 50 pcs / box 20 box / carton |
| IC ITEM | EM- series / Temic5577 Silic5777 / HiTag series (Customized IC available) |
Format Chart
| Format Chart (H=HEX,D=DEC) | |
| Coding Format | Number |
| 6H8D | 05492794 |
| 8H10D | 0022270010 |
| WEG24 | 083,53306 |
| WEG32 | 00339,53306 |
| 10H10D | 4446779450 |
| 10H14D | 00064446779450 |
| 8H | 0153D03A |
| 10H | 0F-0153D03A |
| 12H | 07215230* |
| 65535- WEG24 five figures at the back |
12229 |
If you want to customiz, please provided Us AI file.
Features
Customized projects
LASER CARVING
Laser carving is the new customization service. With provided pictures and carving specification, we can create your desired image or number with laser technology. (Single color and gradient colors are not available)
INKJET PRINTING
Using inkjet printer, we can print the UID/identification number on the card and tag. Customized or standard printing are both available.
COLOR PRINTING
Artwork or graphic design will be provided by client’s side (*.AI、*.CDR、*.JPG), and we will print this and manufacture. (Any further details will be discussed before manufacturing).
OTHER
Tag size、colors and frequency can be customized.
Applications
- RFID Epoxy tag
- Attendance / access control
- Key chain style
- Member tag/ proximity tag
ATTENDENCE / ACCESS CONTROL
RFID application is very popular in access and attendance control for convenience and security purposes. With proximity reader (sensor and standalone), access and security management is possible with proximity card and key chain. Information such as attendance, access data tracking and monitoring is stored and can be printed for analysis.
ELEVATOR MANAGEMENT
RFID enables the power of security and access control for elevator access management.
