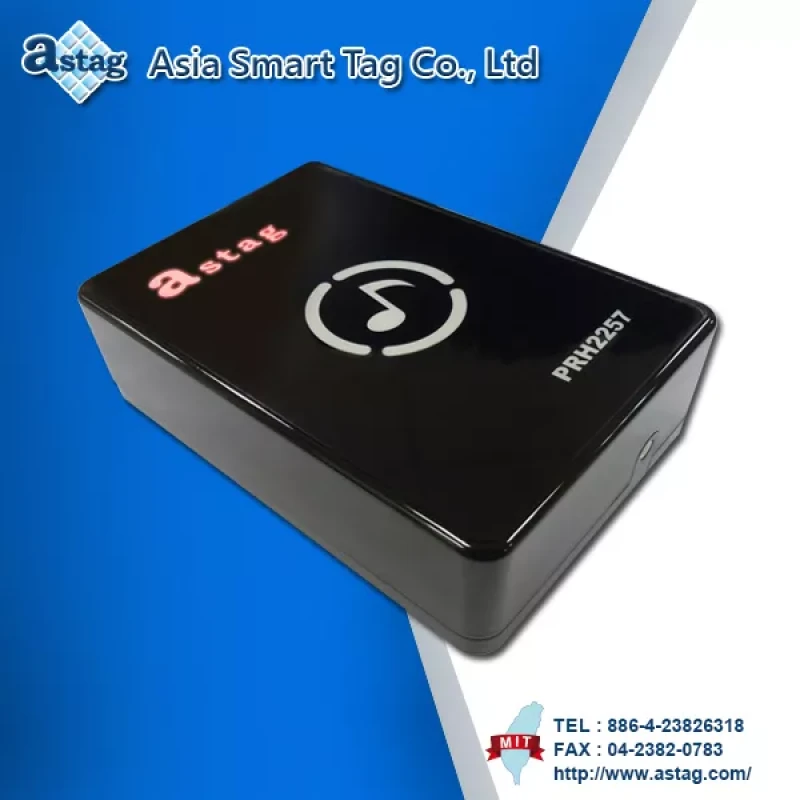

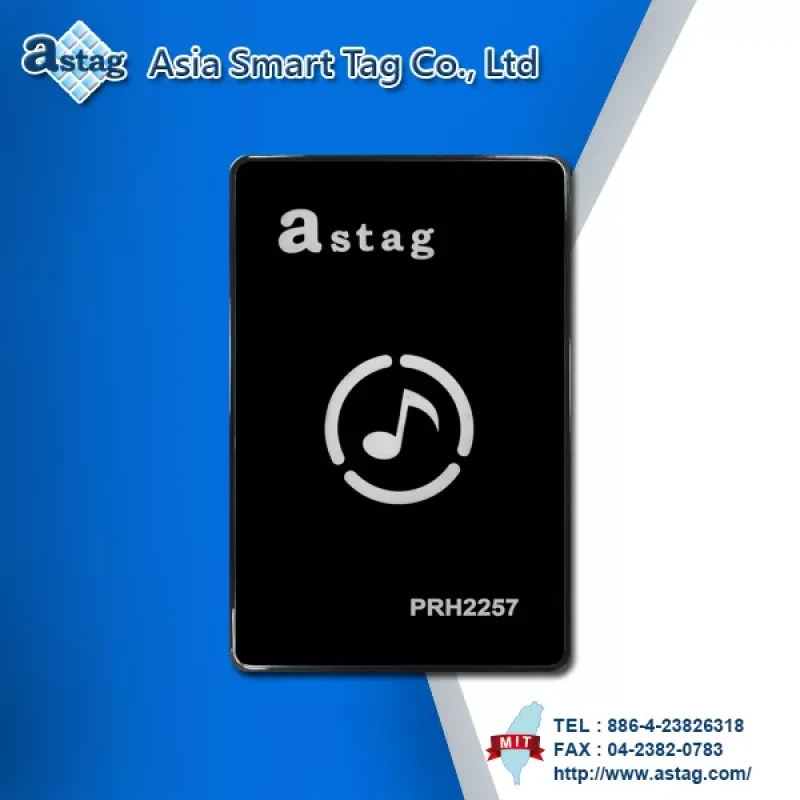

HF Reader
Description
Input/Output：
Electronic Locks (change NC or NO), Warning Indicator (5V), Surveillance (NO), Electric bell.
Supports：
1. LED light signal: provides three kinds of LED light signal, such as standby mode, communication detecting, induction card or electric bell.
2. Voice: play the voice message through SD card (MP3).
3. Time: built-in RTC (Real-time clock).
4. Support IC: Mifare standard series、Mifare desfire series、I-Code series.
Function：
1. Can be set motion time.
2. Can function as Time-delay Combination Lock.
3. Can control the electronic lock, warning indicator, surveillance by connecting to the computer.
Specifications
| Frequency band | 13.56 MHz | |
|---|---|---|
| Read range | 5cm ±1cm(for ISO card) | |
| Interface | TCP/IP | |
| RS-485 | ||
| Wiegand | ||
| ISO standard | ISO-14443A / ISO 15693 | |
| RS485 baud-rate | 9600,n,8,1 | |
| TCP/IP setting | IP and PORT can be adjust automatically | |
| Input voltage range | DC 12V | |
| Static mode | 160 mA | |
| Dynamic mode | 260 mA | |
| Card max capacity | 6000 | |
| Memory max capacity | 12000 | |
| Operating temperature | -30°C ~ +75°C | |
| Storage temperature | 0°C ~ +75°C | |
| Size | 113 x 75 x 27 mm(L x W x H) | |
| Weight | 70 g | |
| Reader | Desfire / Mifare (UID) | |
- Can be set motion time.
- Can function as Time-delay Combination Lock.
- Cards of identification can be added one after another or be added in a row through software.
- Certain/all card of identification can be deleted at the same time.
- The latest/all record can be read/deleted at the same time.
- Can be set system time.
- Can control the electronic lock, warning indicator, surveillance by connecting to the computer.
- Can play the voice message through SD card by connecting to the computer.
- Can function as Elevator Controller.
- Can function as Code Lock with keyboard.
Features
Supported
| Standard | Manufacturer Tag Brand | UID | Read | Write |
| ISO 15693 | I-Code series | Y | Y | Y |
| TiTag series | Y | Y | Y | |
| Suitable ISO 15693 series | Y | Y | Y | |
| ISO 14443A | NFC series | Y | Y | Y |
| Mifare standard series | Y | Y | Y | |
| Mifare desfire series | Y | Y | Y | |
| Mifare Ultralight series | Y | Y | Y | |
| Mifare Plus series | Y | Y | Y | |
| Suitable ISO 14443A series | Y | Y | Y | |
Applications
ATTENDENCE / ACCESS CONTROL
RFID application is very popular in access and attendance control for convenience and security purposes. With proximity reader (sensor and standalone), access and security management is possible with proximity card and key chain. Information such as attendance, access data tracking and monitoring is stored and can be printed for analysis.
OTHER
Reader's function can be customized.
