Label for Product Identification
Specifications
| Inlay | Label | |
| Iteam number | PIH134134C | PLH018018 |
| Size | 13.4 x 13.4 mm(L x W) | 18 x 18 mm(L x W) |
| Frequency band | 13.56 MHz ±3% | |
| Read range (Depends on the reader) |
Up to 2cm | |
| Testing reader | PRH578 | |
| Transmission principle | passive | |
| Antenna substrate | PET | |
| Antenna material | Copper | |
| Label Cover material | - | Glossy Paper (PP PEPA Paper) |
| Tube material | ABS | |
| Tube size | 3 Inch | |
| Package | 1000 pcs/roll , 4 roll/carton | |
| Operating temperature | -30°C ~ 75°C | |
| Storage temperature | -20°C ~ 75°C | |
| ISO standard | ISO-14443A / ISO-14443B / ISO 15693 | |
| IC item | Mifare standard series / I-Code series Mifare desfire series /NFC series / ST25T series ※Any IC is acceptable (customizable) |
|
Features
Dimensions

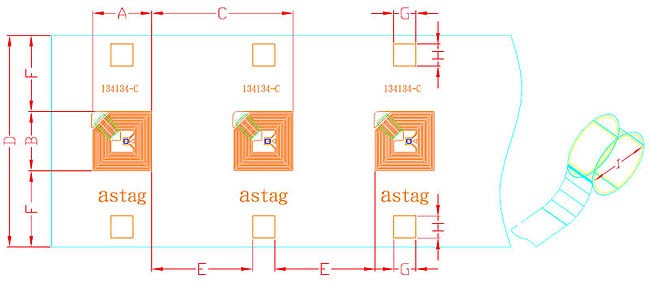

| Inlay Size Information (Unit:mm) | |||||
| X axis | Y axis | ||||
| Position | Size | Tolerance | Position | Size | Tolerance |
| A | 13.4 | ±0.2 | B | 13.4 | ±0.2 |
| C | 32 | ±0.3 | D | 48 | ±0.3 |
| E | 22.8 | ±0.2 | F | 17.3 | ±0.5 |
| I | 5 | ±0.1 | H | 5 | ±0.1 |
| G | 76.2 | ±0.5 | Frequency | 13.56Mhz | ±3% |

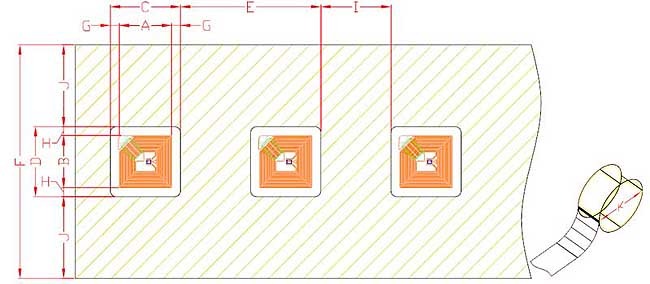

Label
| Label Size Information (Unit:mm) | |||||
| X axis | Y axis | ||||
| Position | Size | Tolerance | Position | Size | Tolerance |
| A | 13.4 | ±0.2 | B | 13.4 | ±0.2 |
| C | 18 | ±0.2 | D | 18 | ±0.2 |
| E | 36 | ±1.5 | F | 60 | ±1 |
| G | 2.3 | ±1.5 | H | 2.3 | ±1.5 |
| I | 18 | ±1.5 | J | 21 | ±1.5 |
| K | 76.2 | ±0.5 | Frequency | 13.56Mhz | ±3% |
Applications
- Can be used for car management, logistics management, warehouse management, access control management, and has a wide range of practicality.
- Stable quality.
- Easy to track and manage.
- Customized service.
