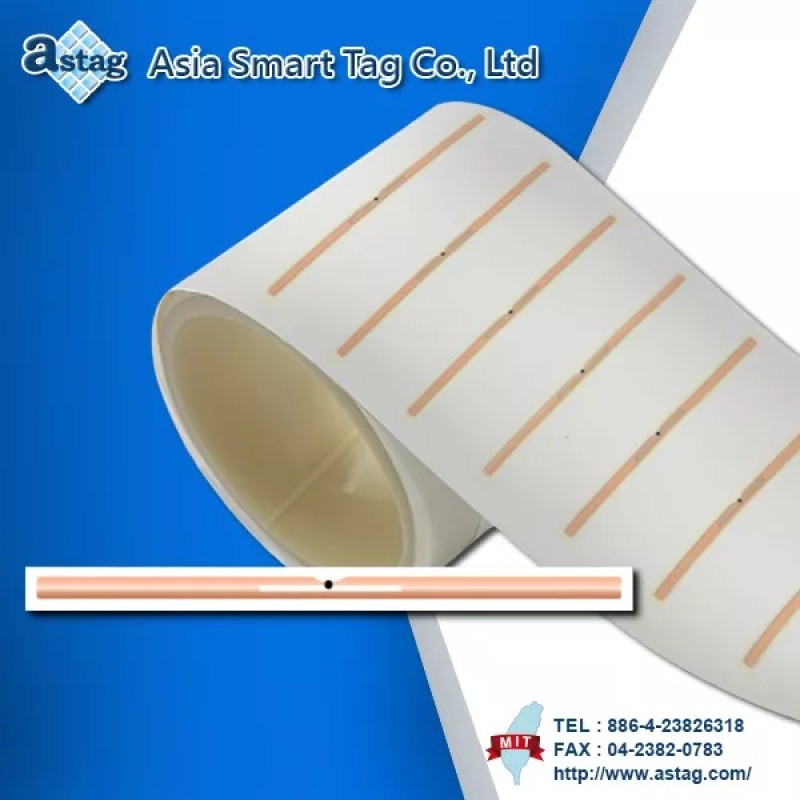

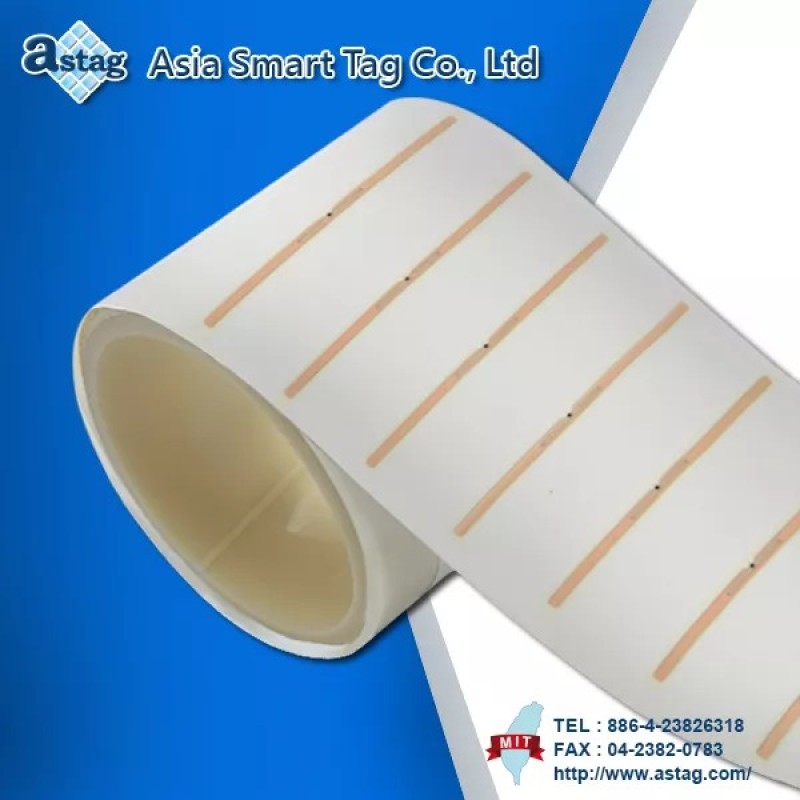

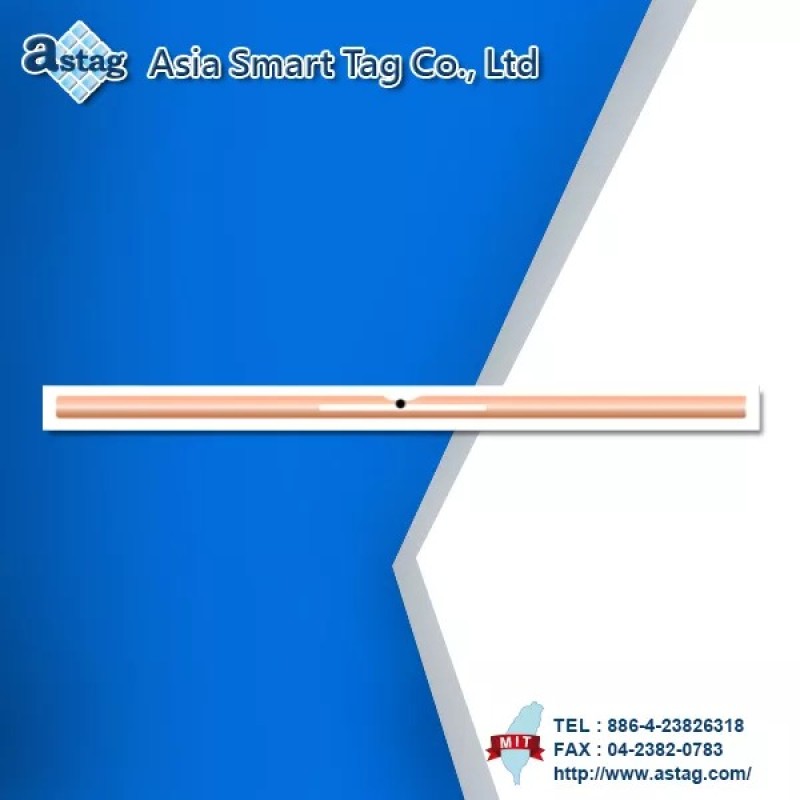

Library Inlay & Label
Specifications
| Operating frequency | 860 ~ 868 MHz；902 ~ 928 MHz |
|---|---|
| Tested read range |
12 m |
| Tested reader |
PRU-29 |
| Power source | Passive |
| Transmission principle | HDX (Half Duplex) |
| ISO Standard | ISO 18000-6C |
| EPC-C1G2 | |
| IC |
ALIEN H3 / ALIEN H9 Impinj R6 / Impinj M830 NXP U Code 8 / NXP U Code 9 |
| IC memory(Bits) | 800 |
| EPC memory(Bits) | 96 |
| TID memory(Bits) | 96 |
| Programming cycles | 100000 |
| Functionality | Read |
| Write | |
| EPC-extended temperature | -30 ℃ ~ +80 ℃ |
| Antenna material | Copper |
| Size(Label) |
100 x 6 x 0.35 (mm) |
Features

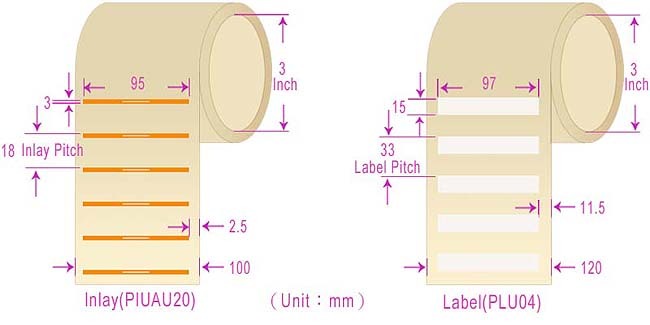

Dimensions

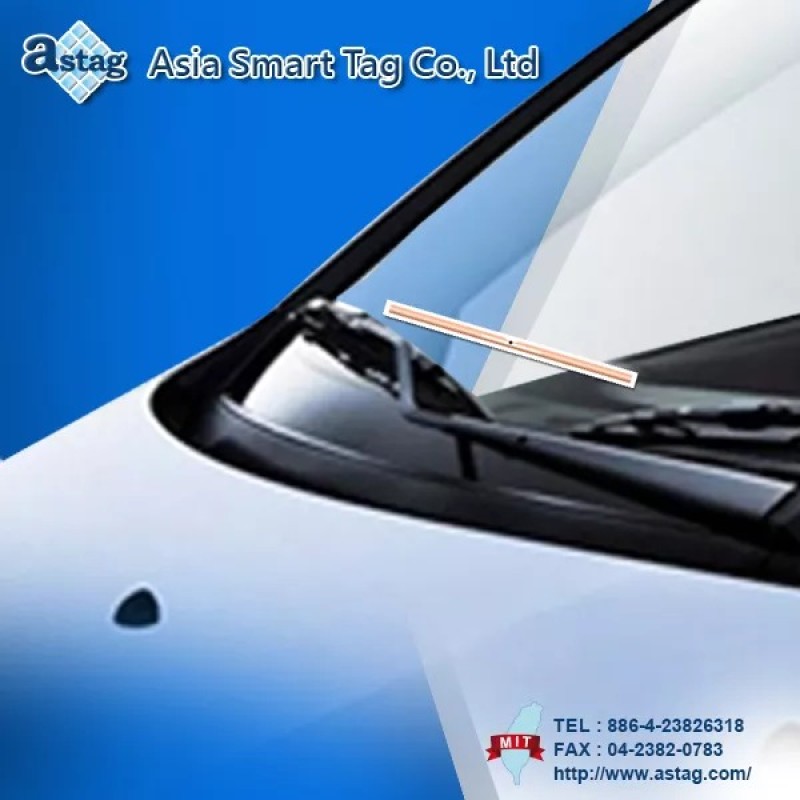

Applications
- Library label.
- Tracking Meanagment.
