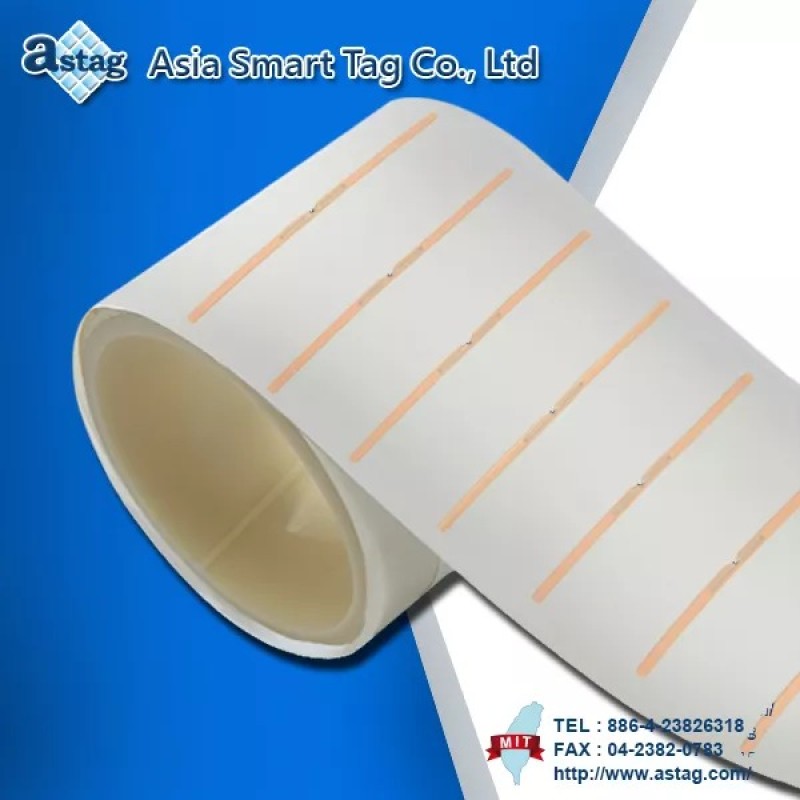

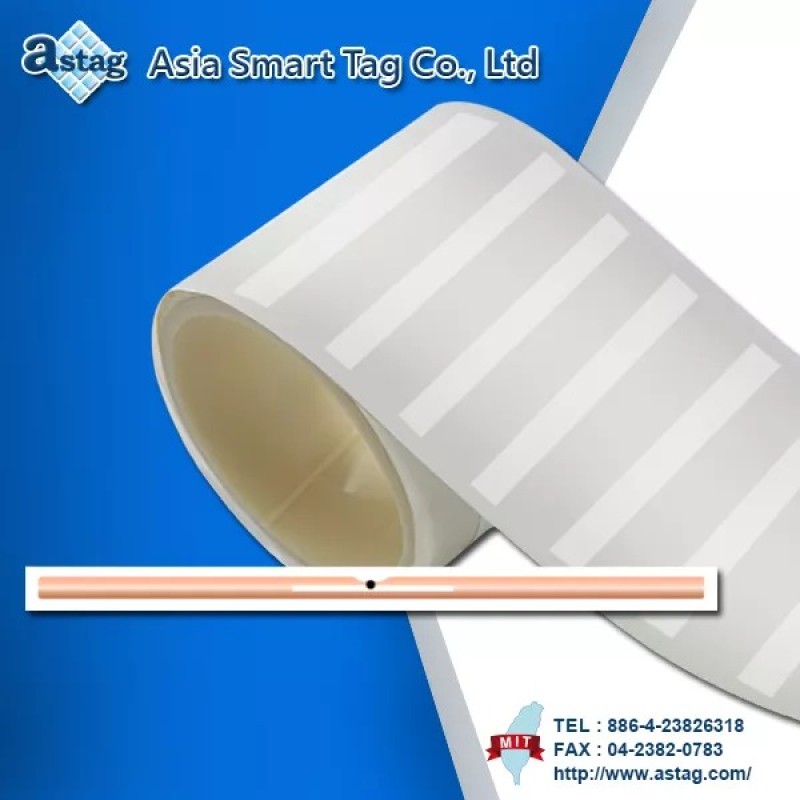

Library Label
Library Label
Type：PLU-006105
Frequency band：860 ~ 868 MHz；902 ~ 928 MHz
Size：6 x 105 mm(L x W)
Size：6 x 105 mm(L x W)
Specifications
| Inlay(PIUA003095) | Label(PLU006105) | |
| Frequency band | 860 ~ 868 MHz；902 ~ 928 MHz | |
| Size | 3 x 95 mm(L x W) | 6 x 105 mm(L x W) |
| Read range | 8 M | 24 dbm |
| Testing reader | 1PRU258A0R2 | |
| Transmission principle | HDX(Half Duplex) | |
| ISO standard | ISO 18000-6C / EPC-C1G2 | |
| IC item | Monza 4E / Monza R6 ALIEN H3 / ALIEN H9 NXP U Code 8 / NXP U Code 9 |
|
| Modulation | ASK | |
| EPC (Bits) | 96-bits EPC Memory, extensible to 480-bits | |
| IC Thickness | 150 um | |
| Functionality | Read / Write | |
| Operating temperature | -30℃ ~ +75℃ | -30℃ ~ +75℃ |
| Storage temperature | -20℃ ~ +75℃ | -20℃ ~ +75℃ |
| Antenna material | Copper | |
| Label cover material | Glossy Paper (PP PEPA Paper) |
|
| Label cover color* | White(Can color printing,marking) | |
| Tube material | ABS | |
| Tube size | 3 Inch | |
| Package | 1000 pcs/roll | |
| 4 roll/carton | ||
| Applications | library management | |
| * is can customizable | ||
Features

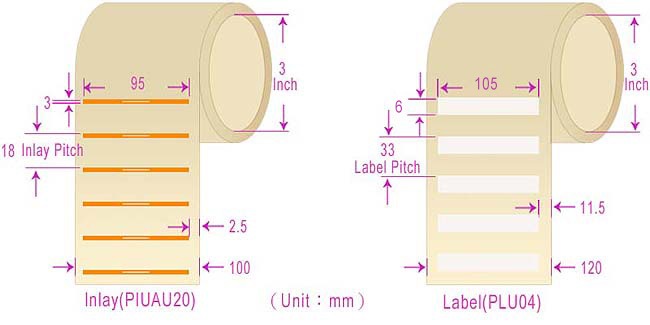

Dimensions
Applications
- Book Management Tab.
- Easy to track and manage.
