RFID Active Reader-50m
Active RFID Reader-50m
Type：ALR-728P
Frequency：433.96 MHz Band
Transfer rate：128 kbps
Read distance：50 M
Transfer rate：128 kbps
Read distance：50 M
Specifications
| RFID type | Active RFID |
| Frequency | 433.96 MHz Band |
| Transmission mode | Two-way |
| Transfer rate | 128 kbps |
| Signal strength | 10 dbm |
| System support requirements | UR |
| RS232 | |
| RS485 | |
| Bluetooth | |
| Wiegand | |
| TCP/IP | |
| Output interface | UR |
| RS232 | |
| RS485 | |
| TCP/IP | |
| Weg | |
| Power supply | DC12V |
| Size | 75 x 113 x 27 mm |
| Weight | 70 g |
| Read distance | 50 m |
| Operating temperature | -20°C ～ 50°C |
Features
Product number |
ALR-728PR | ALR-728PB | ALR-728PD |
Interface |
UR | RS232 | RS485 |
Product number |
ALR-728PL | ALR-728PT | ALR-728PW |
Interface |
BLE | TCP/IP | Wiegand |

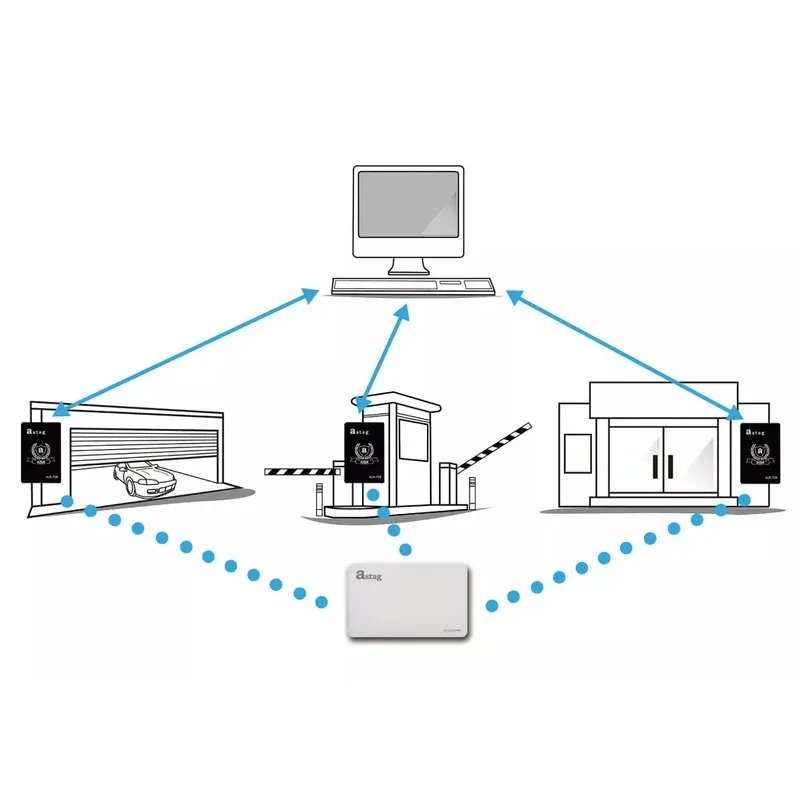

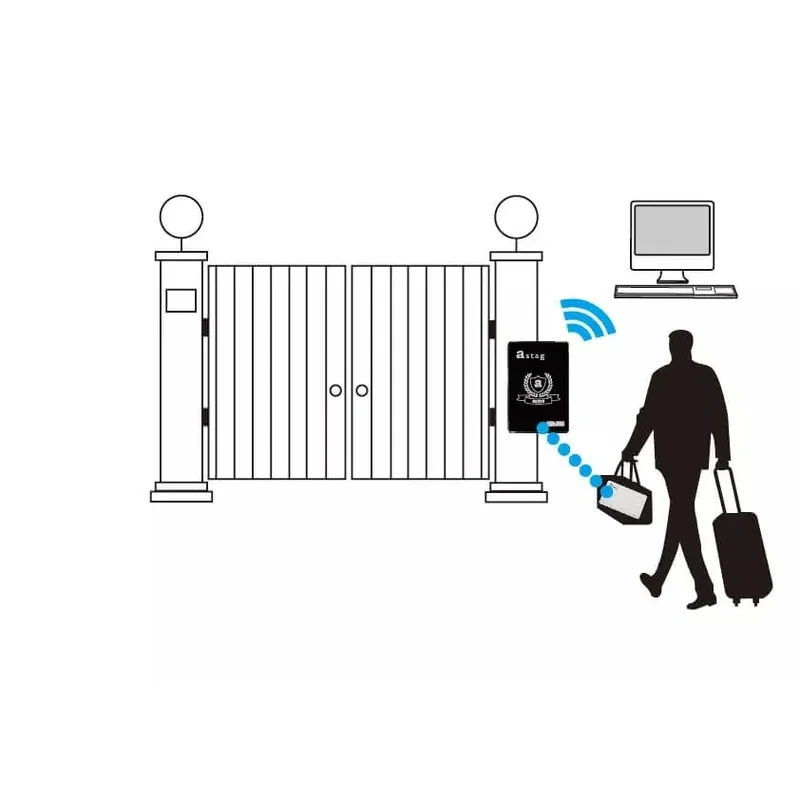

Applications
- Anti-collision models,which can read multiple tags.
- Can also control access control systems, lane management and distress devices.
- Can be used with astag driveway, access control systems.
- Output interface Weg, UR, RS-485,TCP / IP output.
- Can be used with other brands of access control host, lane host common use.
- Signal transmission encryption, to prevent being copied, high security secrets.
- Each host has a specific code, easy to manage.
