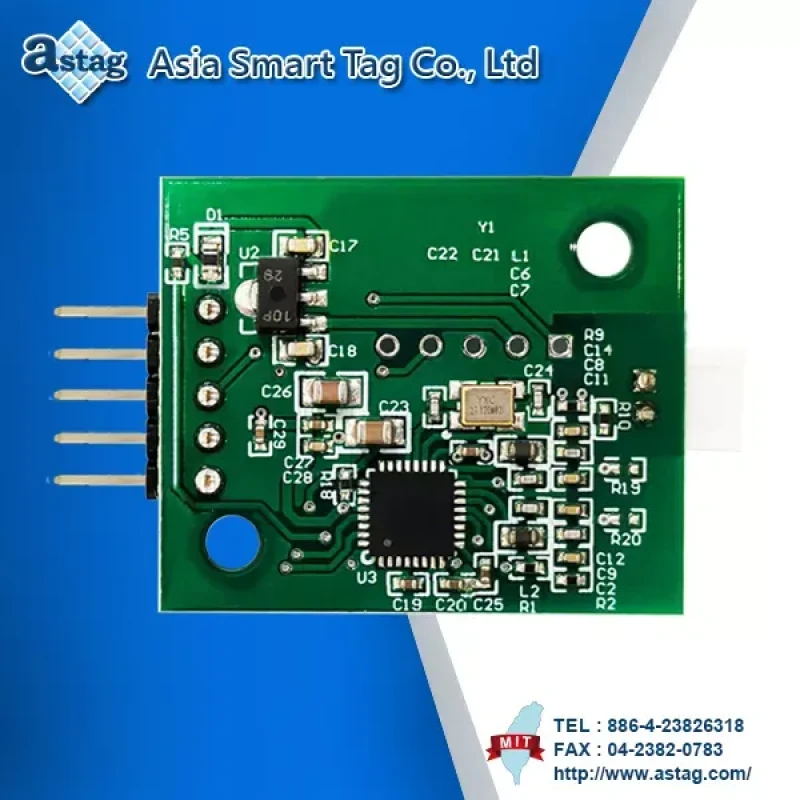

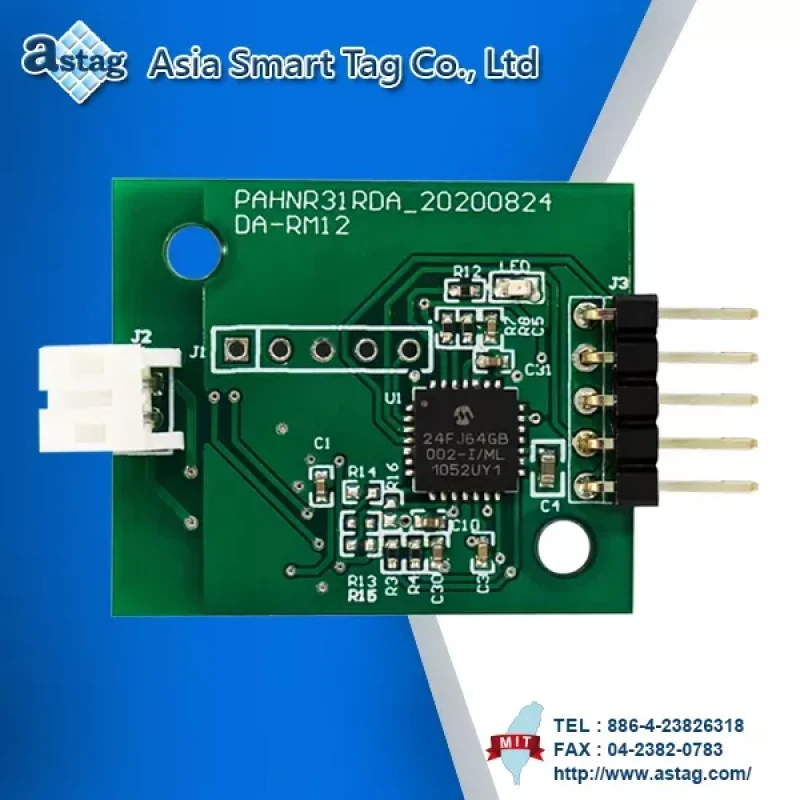

RFID HF Module
Description
- USB interface UART.
- Frequency Reader Module 13.56 MHz (frequency band).
- Data transmission can customizable.
- Supports：These interfaces allow the reader module to communicate with external devices such as computers(Windows 10/11), microcontrollers, or network servers.
- Support IC：Mifare standard series、Mifare desfire series、I-Code series、NFC series.
- Other support：Read/Write, can be connected to external Antenna and LED.
Specifications
| Product Name | RFID HF Module |
| Product No. | PAHNR31RDA |
| Frequency band | 13.56 MHz |
| Read range |
10cm ±1 cm (External Antenna) |
| Interface |
UART (customizable) |
| Baud-Rate | 115200, N, 8, 1 (customizable) |
| Input Voltage Range | DC 5V |
| UART Interface Voltage | 3.3 VDC |
| Dynamic mode | 93 mA |
| Operating temperature | -30℃ ~ 70℃ |
| Storage temperature | -30℃ ~ 70℃ |
| Dimensions | 41(L) x 26(W) x 8.2(H) mm |
| Audio / Visual Indication | Buzzer、LED |
|
HF reader supports |
ISO-14443A/B/C |
| ISO-15693 |
Interface
| Product No. | PAHNR31RDA |
| Interface | UART |
Supported
| Standard | Manufacturer Tag Brand | UID | Read | Write |
| ISO 15693 | I-Code series | Y | Y | Y |
| TiTag series | Y | Y | Y | |
| Suitable ISO 15693 series | Y | Y | Y | |
| ISO 14443A | NFC series | Y | Y | Y |
| Mifare standard series | Y | Y | Y | |
| Mifare desfire series | Y | Y | Y | |
| Mifare Ultralight series | Y | Y | Y | |
| Mifare Plus series | Y | Y | Y | |
| Suitable ISO 14443A series | Y | Y | Y | |
| ISO 14443B | ATMEL series | Y | Y | Y |
Applications
- Access Control
- Inventory Management
- Asset Tracking
