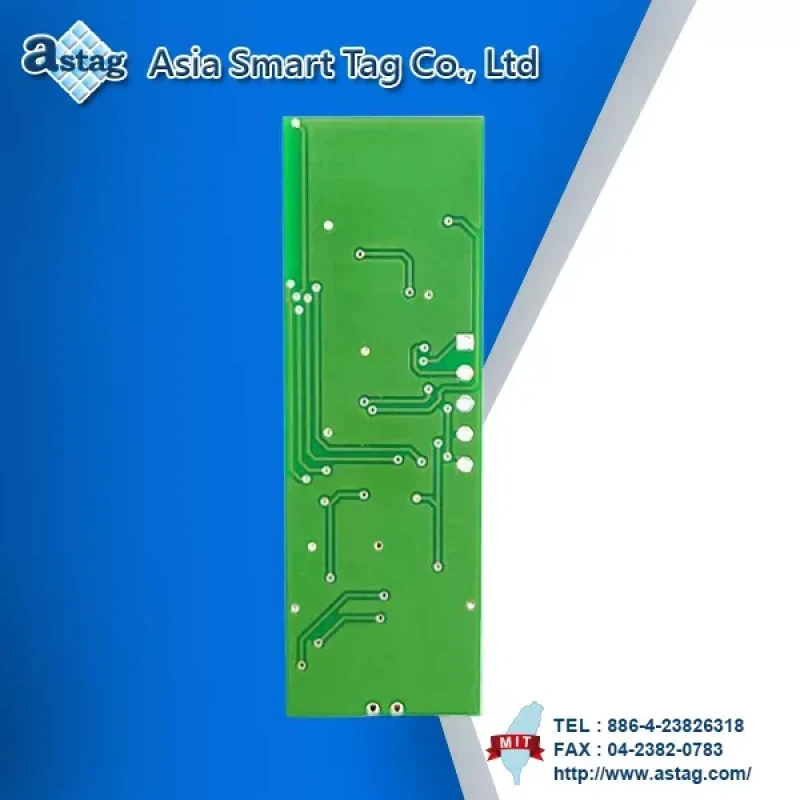

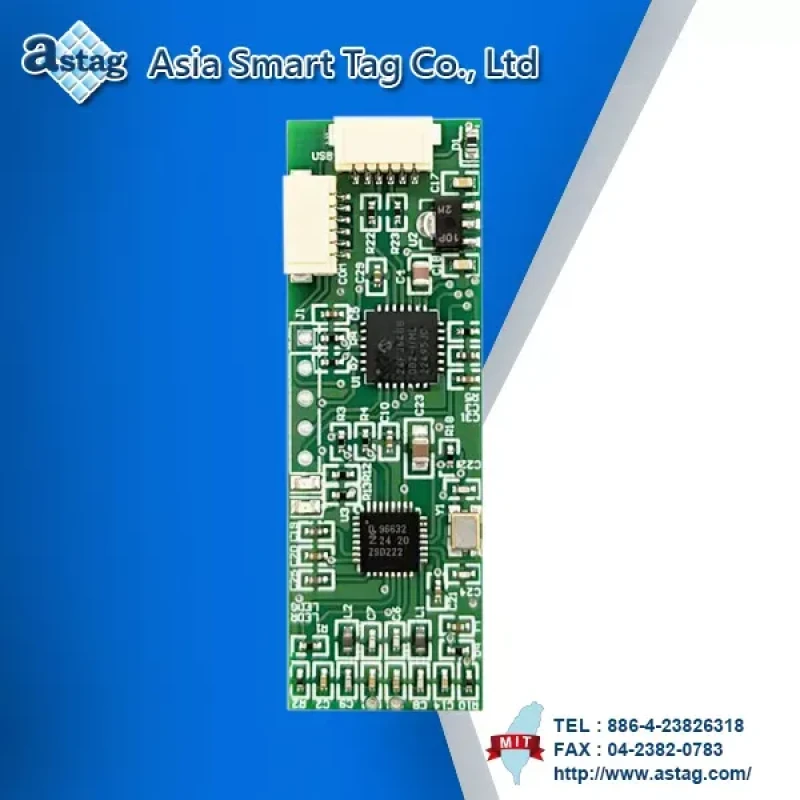

RFID HF Module
Description
- USB interface UART / HID / CCID / Keyboard Wedge.
- Frequency Reader Module 13.56 MHz (frequency band).
- Data transmission can customizable.
- Software support：Windows 10/11.
- Language support：English、Germany、French、Netherland、Italian、 Spanish、 Dutch、Swedish、 Danish、Portuguese.
- Other support：Can be connected to external antenna and LED. It is small in size and can be placed inside a computer screen or tablet for sensing use.
- Support IC：Mifare standard series、Mifare desfire series、I-Code series、NFC series.
Specifications
| Product Name | RFID HF Module |
| Product No. | PMHNR32K_APL |
| Frequency band | 13.56 MHz |
| Read range |
5cm ±1 cm (External Antenna) |
| Interface |
UART / USB HID / USB CCID / USB keyboard wedge (customizable) |
| Baud-Rate | 115200, N, 8, 1 (customizable) |
| Input Voltage Range | DC 5V |
| UART Interface Voltage | 3.3 VDC |
| Dynamic mode | 93 mA |
| Operating temperature | -30℃ ~ 70℃ |
| Storage temperature |
-30℃ ~ 70℃ |
| Dimensions | 50(L) x 16.5(W) x 4.0(H) mm |
| Audio / Visual Indication | Buzzer、LED |
|
HF reader supports |
ISO-14443A/B/C |
| ISO-15693 |
Interface
| Product No. | PMHNR32R_APL | PMHNR32H_APL |
| Interface | UART | USB HID |
| Product No. | PMHNR32C_APL | PMHNR32K_APL |
| Interface | USB CCID | USB keyboard wedge |
Supported
| Standard | Manufacturer Tag Brand | UID | Read | Write |
| ISO 15693 | I-Code series | Y | Y | Y |
| TiTag series | Y | Y | Y | |
| Suitable ISO 15693 series | Y | Y | Y | |
| ISO 14443A | NFC series | Y | Y | Y |
| Mifare standard series | Y | Y | Y | |
| Mifare desfire series | Y | Y | Y | |
| Mifare Ultralight series | Y | Y | Y | |
| Mifare Plus series | Y | Y | Y | |
| Suitable ISO 14443A series | Y | Y | Y | |
| ISO 14443B | ATMEL series | Y | Y | Y |
Applications
- Access Control
- Inventory Management
- Asset Tracking
- Medical Devices
- Industrial Computer
