RFID HF Reader - USB
RFID HF Reader - USB
Type：PRH-578U
Frequency：13.56 MHz
Read range：8 cm (depend on Tag)
Read range：8 cm (depend on Tag)
Specifications
| Frequency band | 13.56 MHz | |
|---|---|---|
| Read range | Up to 8cm (depend on Tag) | |
| USB interface | ||
| HID | ||
| CCID | ||
| Keyboard Wedge (option) | ||
| ISO standard | ISO-14443A/B/C | |
| ISO-15693 | ||
| Modulation | ASK | |
| FSK | ||
| PSK | ||
| Data output | Continuous transmission | |
| Only send data once | ||
| Power | Bus Powered | |
| Operating temperature | -30℃ to +75℃ | |

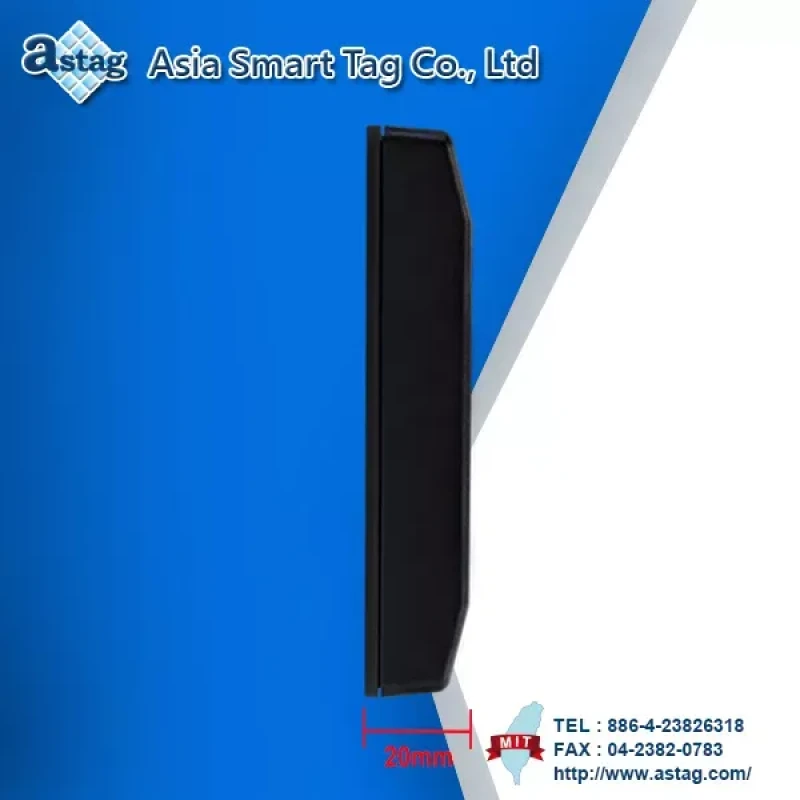

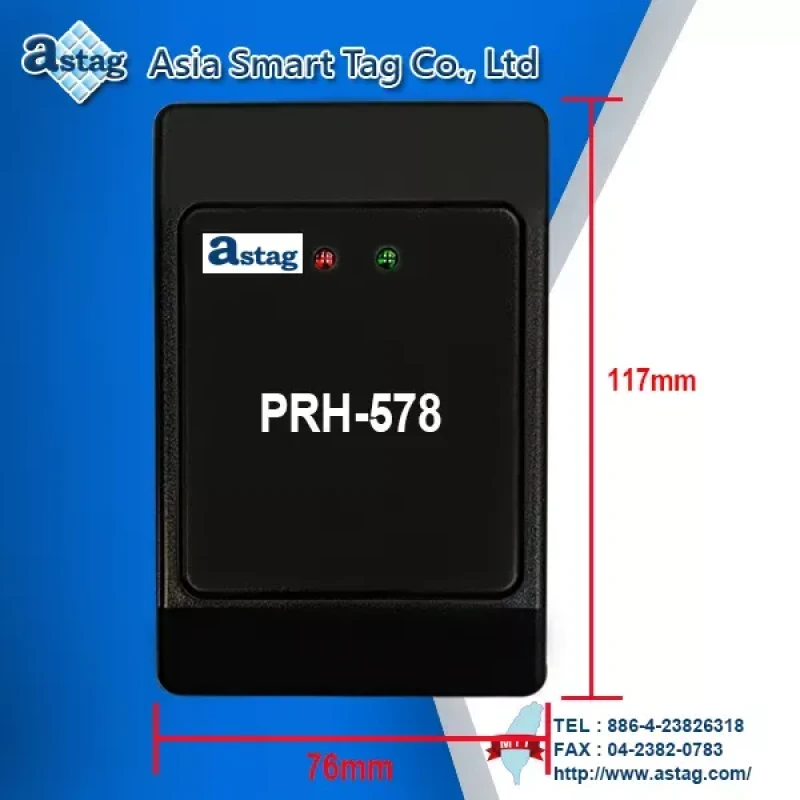

| Dimensions | 117 x 76 x 20mm(L x W x H) | |
- High power.
- Can read/write.
- HID/CCID/Keyboard Wedge can be used with USB interface.
Features
1. Supports：These interfaces allow the module to communicate with external devices such as computers(Windows 10/11), microcontrollers, or network servers.
2. Supports IC：Mifare standard series、Mifare desfire series、I-Code series、NFC series.
3. Function：HF RFID reader may include security features such as encryption and authentication to prevent unauthorized access or data tampering.
4. Advantages：HF RFID readers play a crucial role in enabling efficient and automated identification and tracking processes across various industries.
Interface
Product number |
PRH578H | PRH578C | PRH578K |
Interface |
HID | CCID | Keyboard wedge |
Supported
| Standard | Manufacturer Tag Brand | UID | Read | Write |
| ISO 15693 | I-Code series | Y | Y | Y |
| TiTag series | Y | Y | Y | |
| Suitable ISO 15693 series | Y | Y | Y | |
| ISO 14443A | NFC series | Y | Y | Y |
| Mifare standard series | Y | Y | Y | |
| Mifare desfire series | Y | Y | Y | |
| Mifare Ultralight series | Y | Y | Y | |
| Mifare Plus series | Y | Y | Y | |
| Suitable ISO 14443A series | Y | Y | Y | |
| ISO 14443B | ATMEL series | Y | Y | Y |
Applications
1. Access management
2. Access control
3. Asset tracking
4. Inventory management
Product Inquiry
| Image | Product Name |
|---|---|
|
RFID HF Reader - USB PRH-578U |
