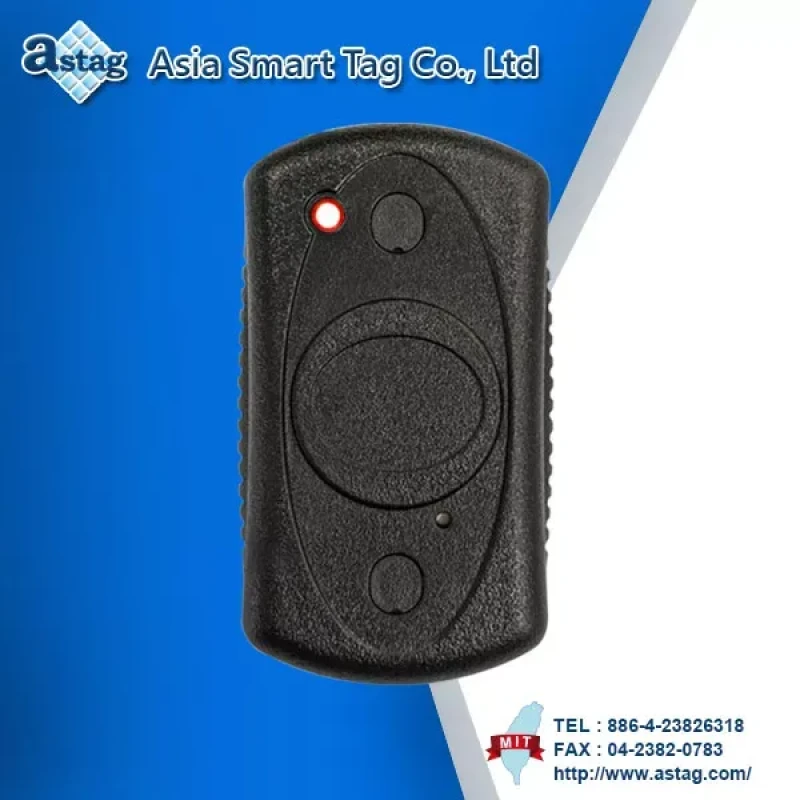

RFID HF Reader - USB
RFID HF Reader - USB
Type：PRH-588URead range：5 cm (depend on Tag)
Specifications
| Frequency band | 13.56 MHz | |
|---|---|---|
| Read range | Up to 5cm (depend on Tag) | |
| USB interface | ||
| HID | ||
| CCID | ||
| Keyboard Wedge (option) | ||
| ISO standard | ISO-14443A/B/C | |
| ISO-15693 | ||
| Modulation | ASK | |
| FSK | ||
| PSK | ||
| Data output | Continuous transmission | |
| Only send data once | ||
| Power | Bus Powered | |
| Operating temperature | -30℃ to +75℃ | |

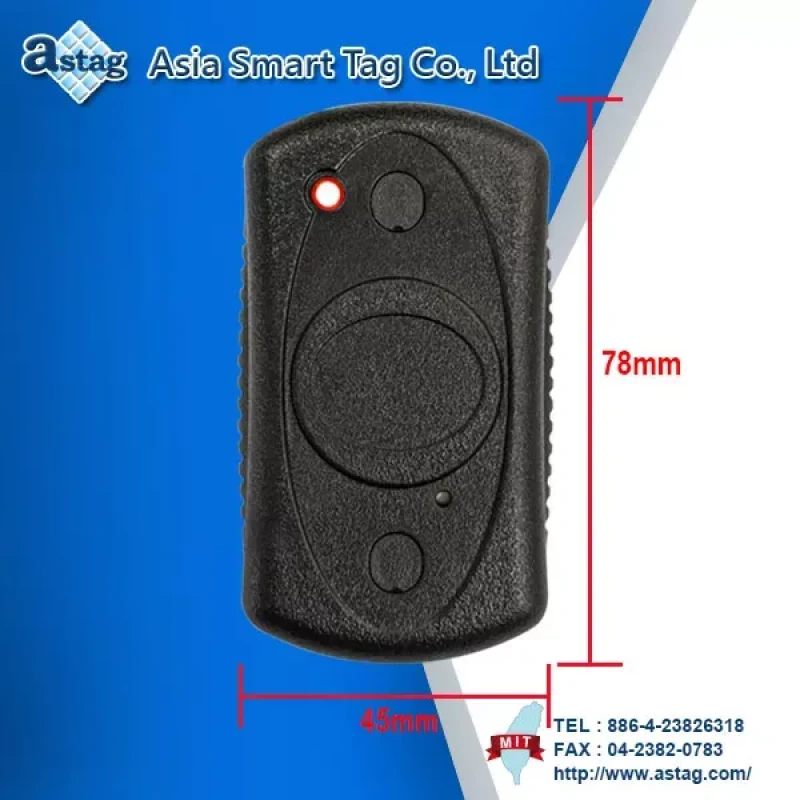

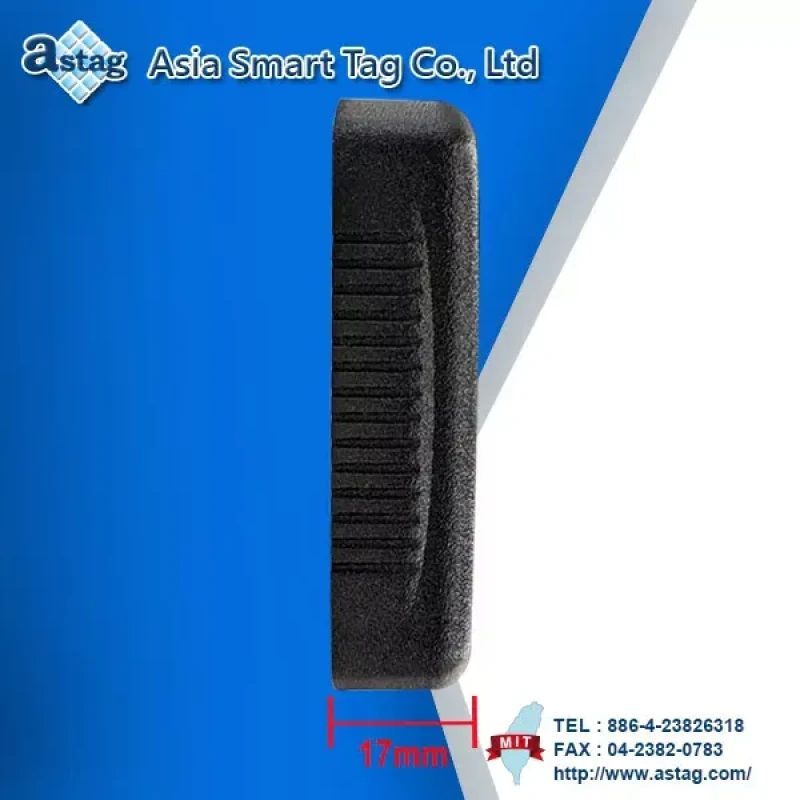

| Dimensions | 78 x 45 x 17 mm(L x W x H) | |
- High power sawing.
- USB interface HID/CCID/Keyboard Wedge.
Features
1. Supports：These interfaces allow the module to communicate with external devices such as computers(Windows 10/11), microcontrollers, or network servers.
2. Supports IC：Mifare standard series、Mifare desfire series、I-Code series、NFC series.
3. Advantages：HF RFID readers play a crucial role in enabling efficient and automated identification and tracking processes across various industries.
|
Standards |
Manufacturer Tag Brand |
UID |
Read |
Write |
|
|
NXP I-Code 2(SLI) |
Y |
Y |
Y |
|
TI / Tag - it |
Y |
Y |
Y |
|
|
Other ISO15693 |
Y |
Y |
Y |
|
|
|
NXP Mifare Ultralight |
Y |
Y |
Y |
|
NXP Mifare standard NXP Mifare S50 4byte NXP Mifare S50 7byte NXP Mifare S70 4byte NXP Mifare S70 7byte |
Y Y Y Y Y |
Y Y Y Y Y |
Y Y Y Y Y |
|
|
NXP Mifare Desfire EV1 NTAG213 NTAG215 NTAG216 |
Y Y Y Y |
Y Y Y Y |
Y Y Y Y |
|
|
ISO 14443B |
ATMEL |
Y |
Y |
N |
Interface
Product number |
PRH588H | PRH588C | PRH588K |
Interface |
HID | CCID | Keyboard wedge |
Applications
1. Access management
2. Access control
3. Asset tracking
4. Inventory management
