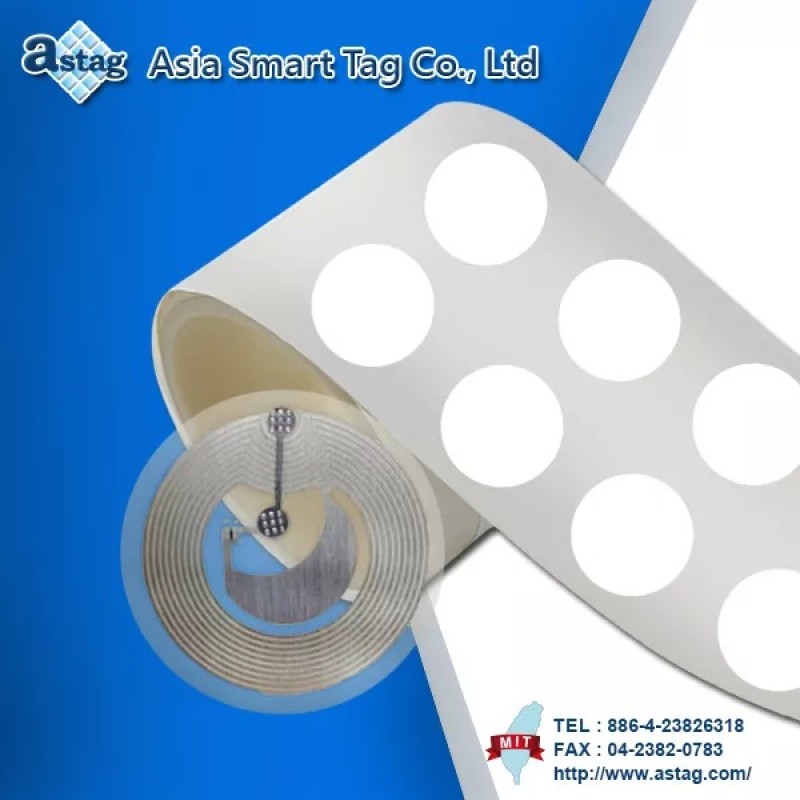

RFID Label
Specifications
| Product | RFID HF Label | |
| Iteam number | PLH-Q28 | |
| Size | Ø28 mm | |
| Frequency band | 13.56 MHz | |
| Antenna substrate | PET | |
| Antenna material | aluminum | |

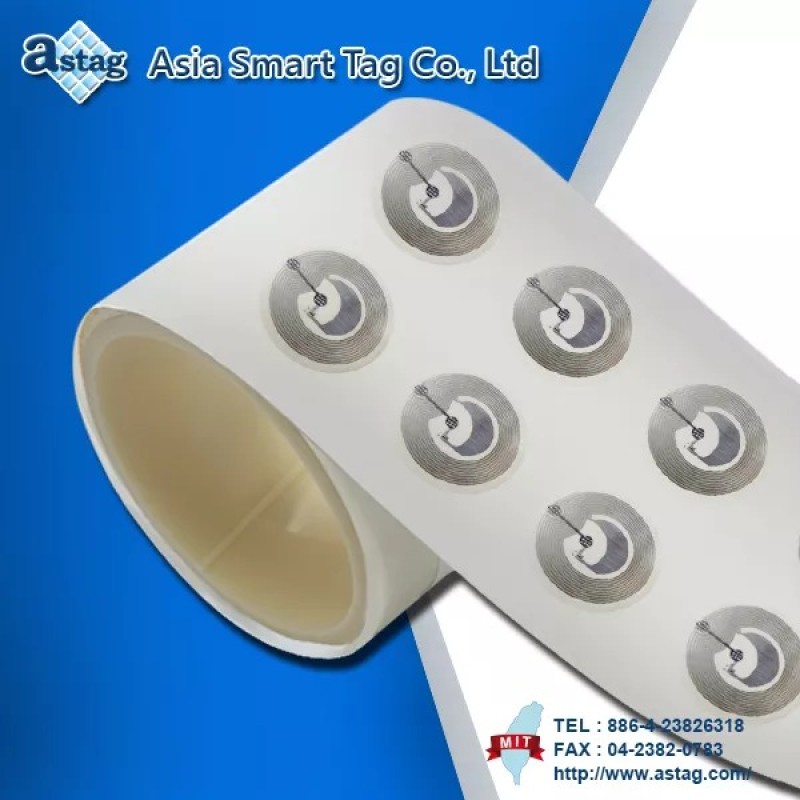

| Package | 2000 pcs/roll , 4 roll/carton | |
| Operating temperature | -20°C ~ 60°C | |
| Storage temperature | -20°C ~ 75°C | |
| ISO standard | ISO-14443A / ISO-14443B / ISO 15693 | |
| IC item | Mifare standard series / I-Code series Mifare desfire series /NFC series / ST25T series ※Any IC is acceptable (customizable) |
|
Features

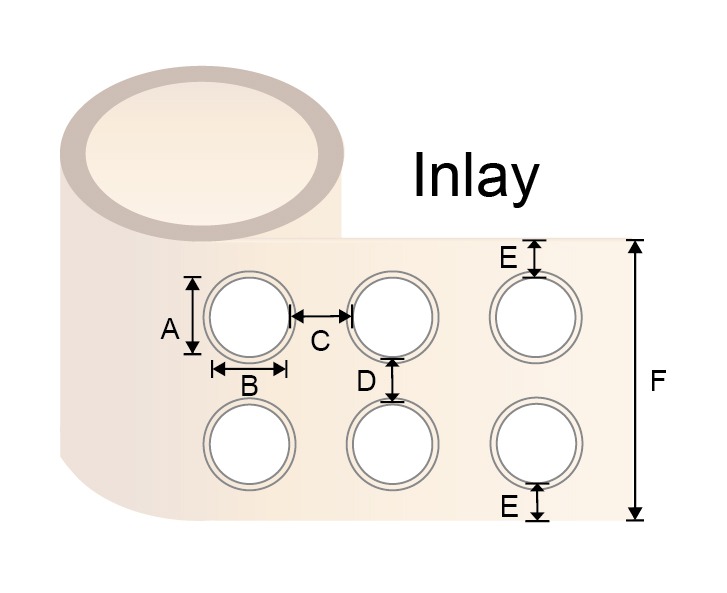

| Inlay Size Information | (Unit:mm) | ||||
| Position | Size | Tolerance | Position | Size | Tolerance |
| A | 25 | ± 0.2 | D | 18 | ± 0.2 |
| B | 25 | ± 0.2 | E | 3.5 | ± 0.2 |
| C | 6 | ± 0.2 | F | 86 | ± 0.2 |

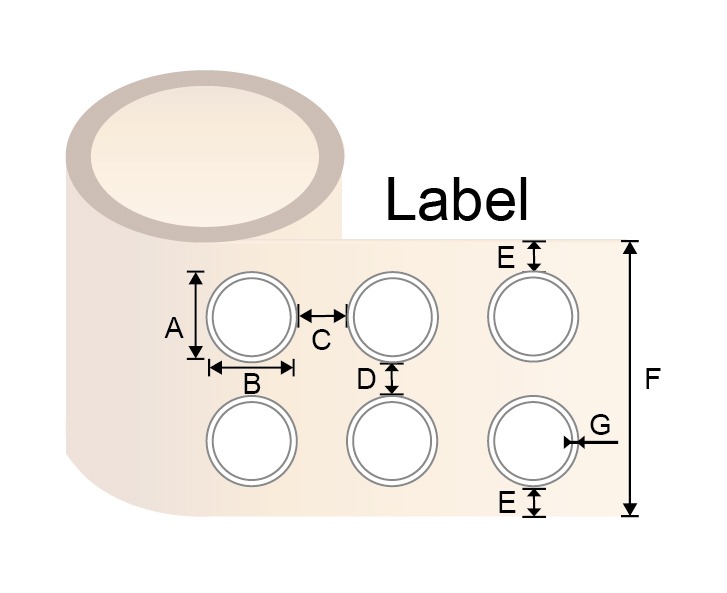

| Label Size Information | (Unit:mm) | ||||
| Position | Size | Tolerance | Position | Size | Tolerance |
| A | 28 | ± 0.2 | E | 7 | ± 0.2 |
| B | 28 | ± 0.2 | F | 86 | ± 0.2 |
| C | 4 | ± 0.2 | G | 1 | ± 0.2 |
| D | 14 | ± 0.2 | |||
Applications
- Can be used for car management, logistics management, warehouse management, access control management, and has a wide range of practicality.
- Stable quality.
- Easy to track and manage.
- Customized service.
