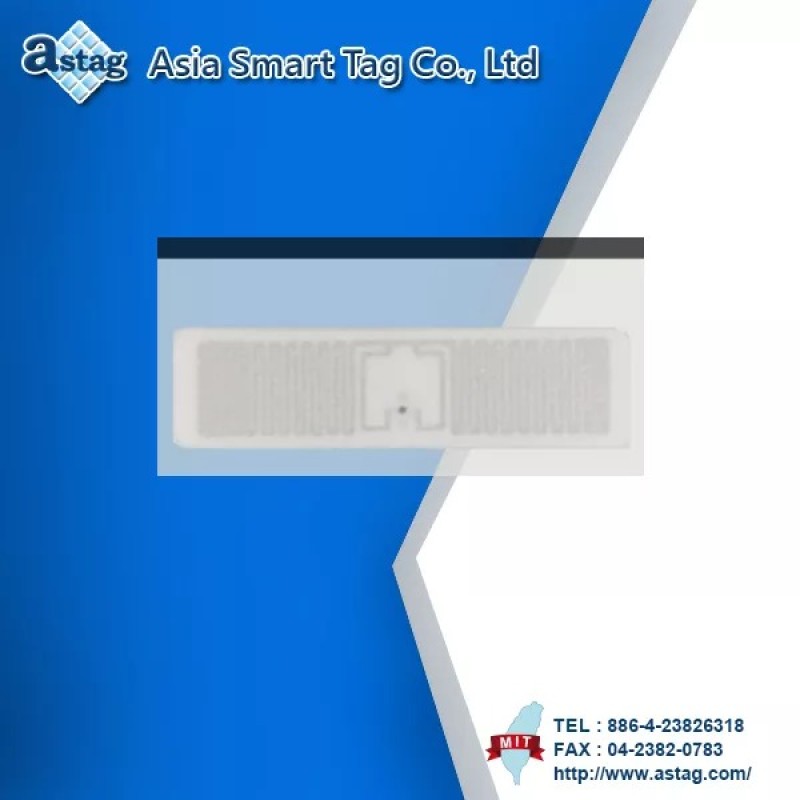

RFID Label
Specifications
| Product | RFID UHF Label |
| Iteam number | PLU-050013 |
| Size | 50 x 13 mm(L x W) |
| ISO standard | ISO 18000-6C / EPC-C1G2 |
| Frequency band | 860 ~ 868 MHz；902 ~ 928 MHz |
| Antenna substrate | PET |
| Antenna material | aluminum |
| EPC Memory | 128 bit |
| TID Memory | 96 bit |
| Operating temperature | -20°C ~ 60°C |
| Storage temperature | -20°C ~ 75°C |

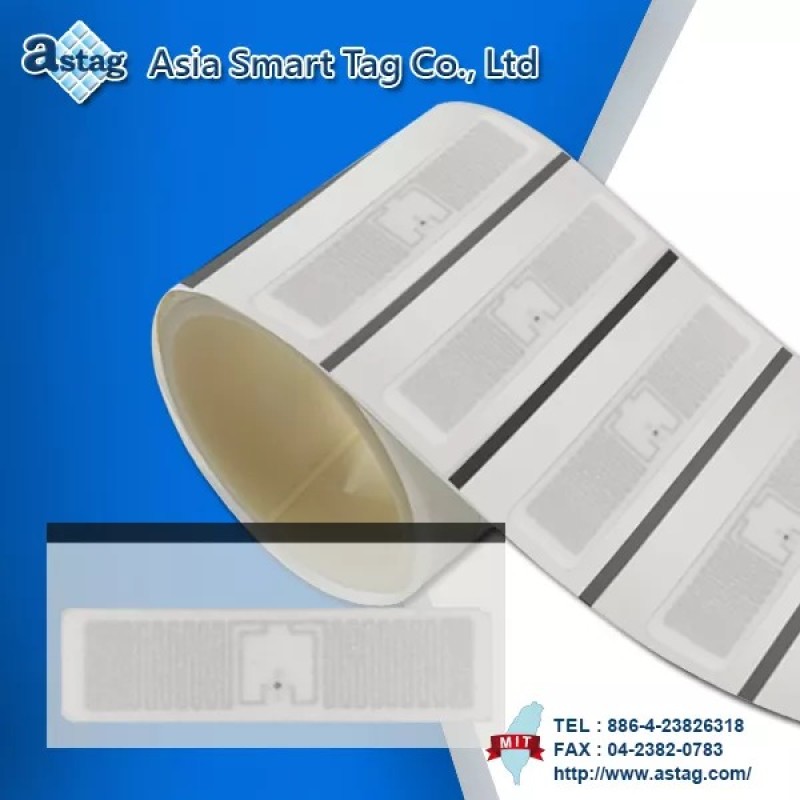

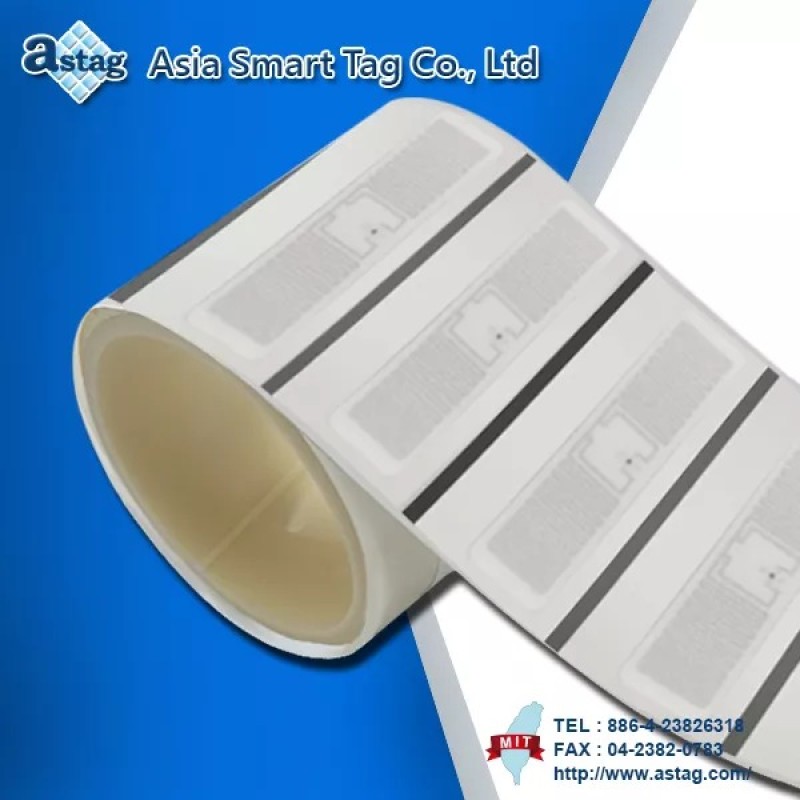

| Package | 2000 pcs/roll , 4 roll/carton |
| IC item | Monza 4E / Monza R6 ALIEN H3 / ALIEN H9 NXP U Code 8 / NXP U Code 9 ※Any IC is acceptable (customizable) |
Features

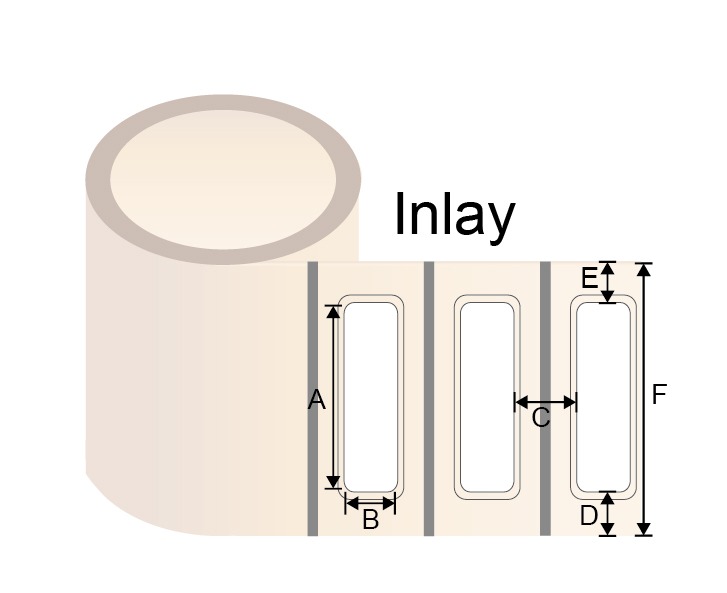

| Inlay Size Information | (Unit:mm) | ||||
| Position | Size | Tolerance | Position | Size | Tolerance |
| A | 45 | ± 0.2 | D | 7 | ± 0.2 |
| B | 10.5 | ± 0.2 | E | 7 | ± 0.2 |
| C | 21 | ± 0.2 | F | 60.5 | ± 0.2 |

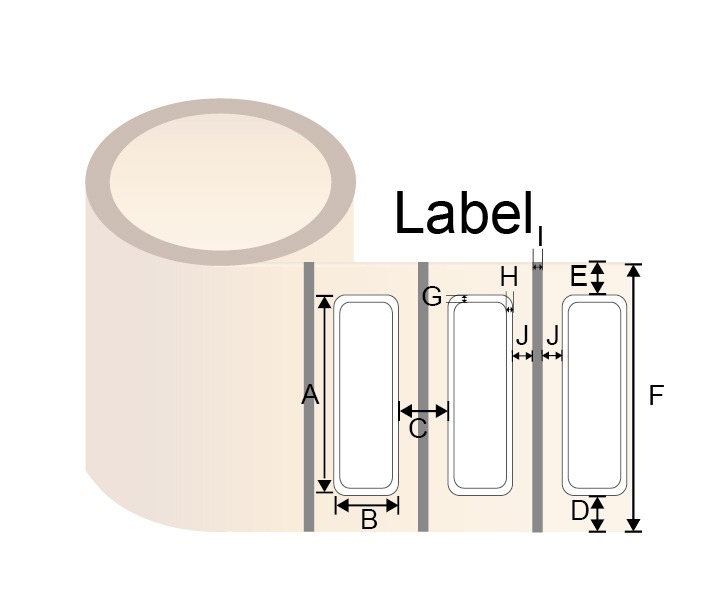

| Label Size Information | (Unit:mm) | ||||
| Position | Size | Tolerance | Position | Size | Tolerance |
| A | 50 | ± 0.2 | F | 60 | ± 0.2 |
| B | 13 | ± 0.2 | G | 2.5 | ± 0.2 |
| C | 19 | ± 0.2 | H | 1 | ± 0.2 |
| D | 4.5 | ± 0.2 | I | 3 | ± 0.2 |
| E | 4.5 | ± 0.2 | J | 8 | ± 0.2 |
Applications
- Can be used for car management, logistics management, warehouse management, access control management, and has a wide range of practicality.
- Stable quality.
- Easy to track and manage.
- Customized service.
