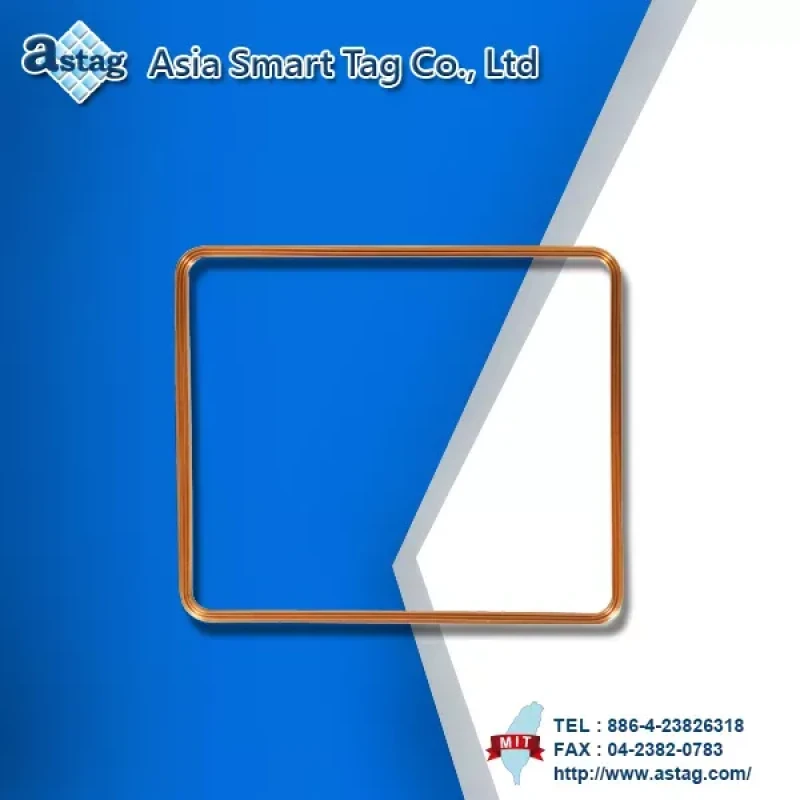

RFID LF Antenna
Specifications
| Frequency | 100-150 KHz | |
|---|---|---|
| Material | Copper wire | |
| Size | 59 x 69 mm | |
| Wire diameter | 0.3 mm | |
| Inductor value | 520 mh ±3% | |
| Resistance | 4.2Ω | |
| Number of turns | 56 | |
| ROHs | OK | |
| Temperature | -40 °C to +200 °C | |
| Packing | Package 10pcs | |
- Suitable for RFID low-frequency induction IC matching or other needs.
- Reader antenna Diameter, appearance, coil size, size, thickness can be customized.
Features

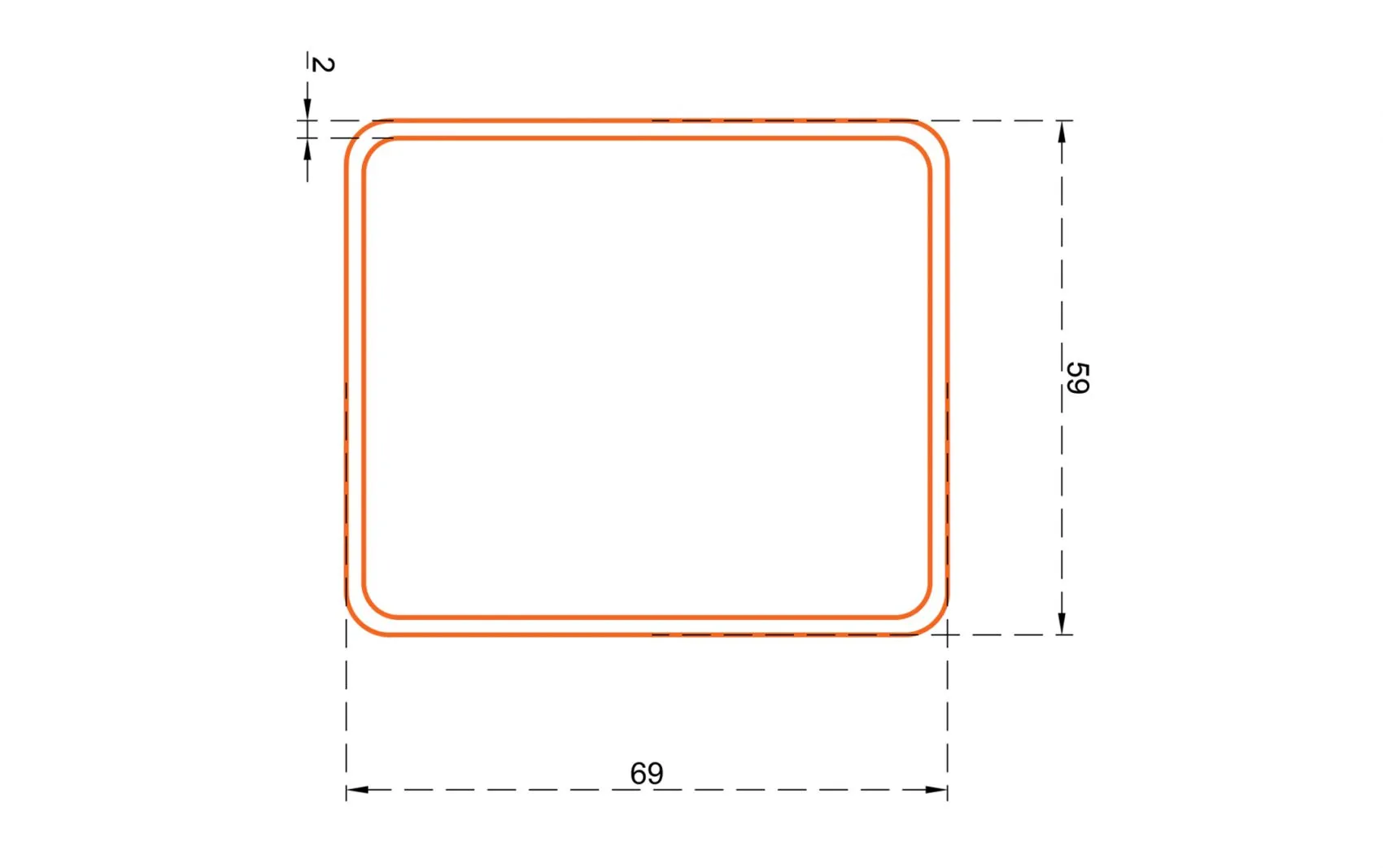

Dimensions
Product Inquiry
| Image | Product Name |
|---|---|
|
RFID LF Antenna POL03R |
