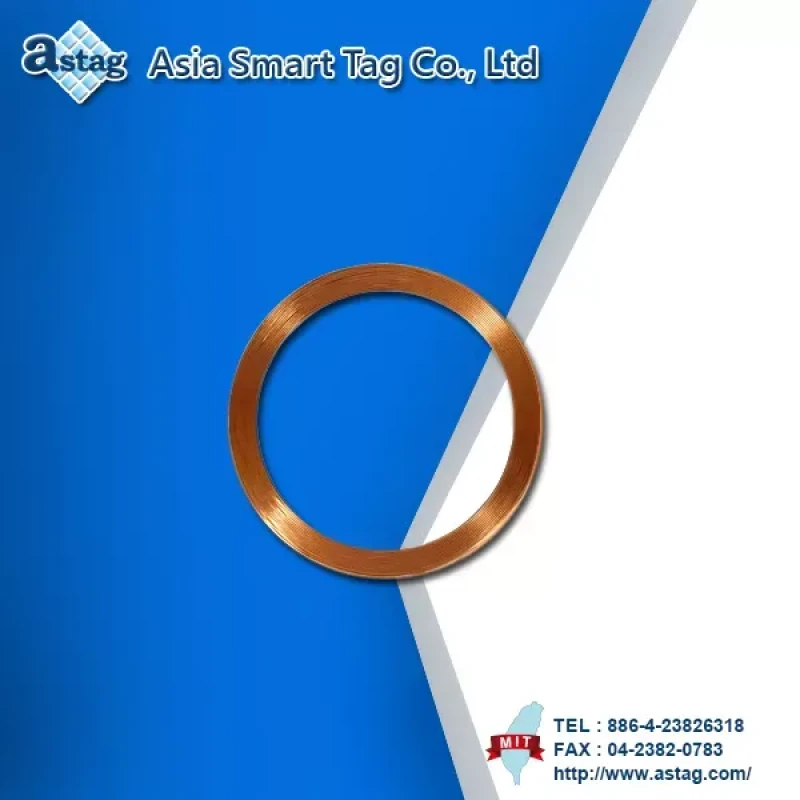

RFID LF Antenna
Specifications
| Frequency | 100-150 KHz |
|---|---|
| Material | Copper wire |
| Size | Within 24.2 mm |
| Outside 27.7 mm | |
| Wire diameter | 0.1 mm |
| Inductor value | 4.9 mh ±3% |
| Resistance | 68Ω |
| Thickness | 1.42 mm |
| Temperature | -40 °C to +200 °C |

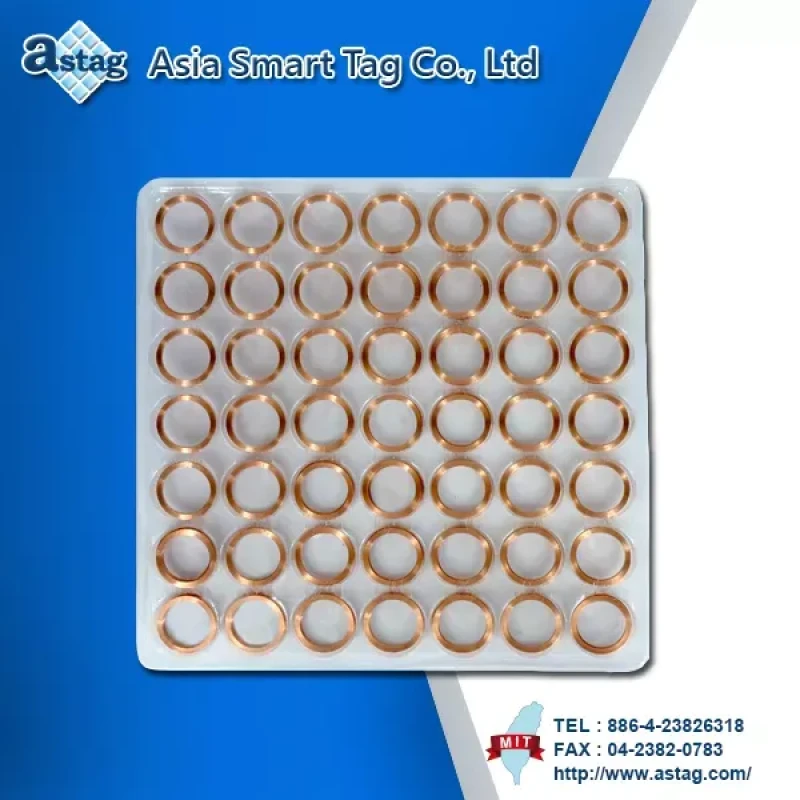

| Packing | Disc 196 , box 1960 |
| Number of turns | 307 |
| ROHs | OK |
- Rfid low-frequency induction IC can be applied to the matching or other needs.
- "Antenna" powered by Diameter, appearance, coil size, size, thickness can be customized.
Features

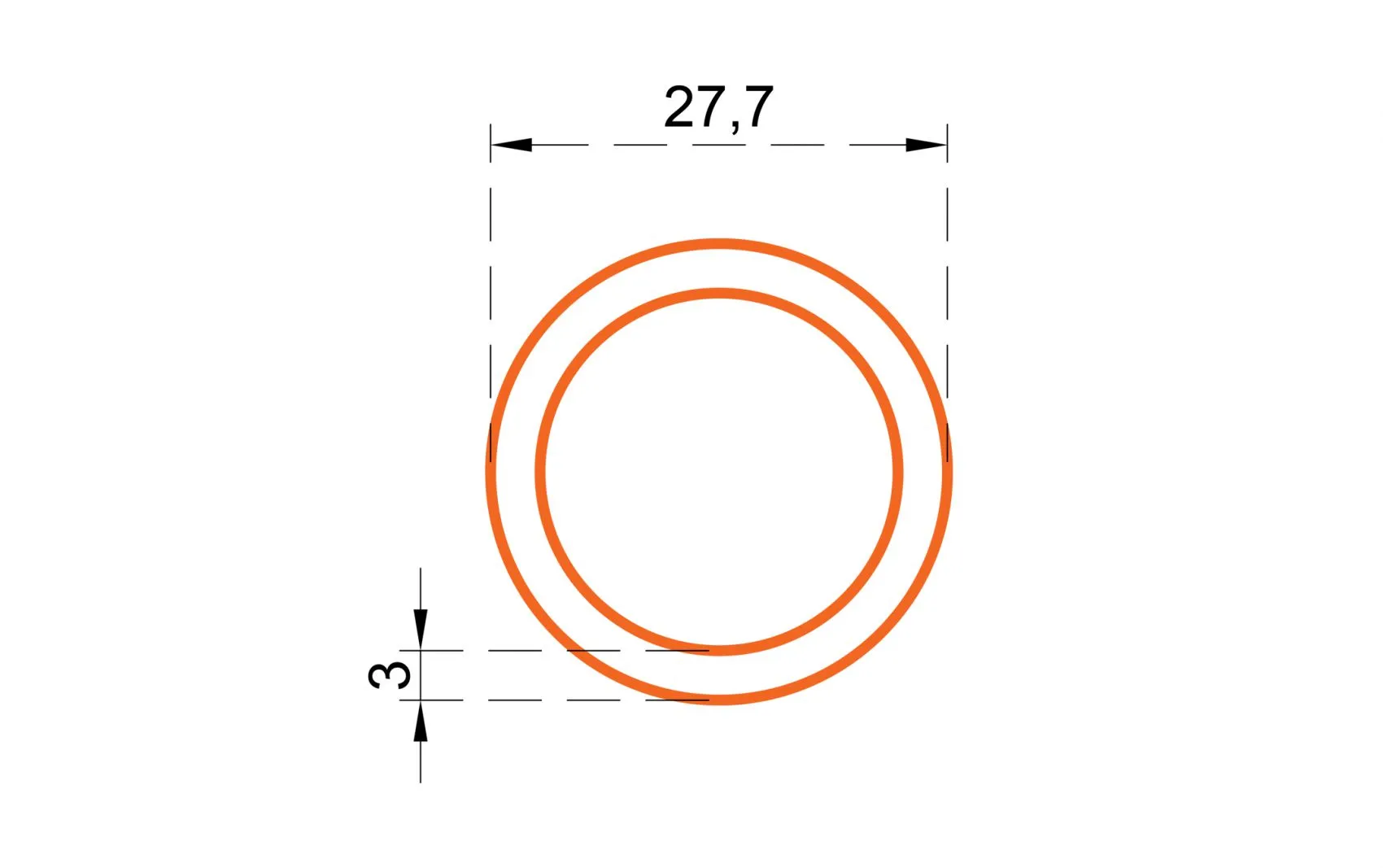

Dimensions
