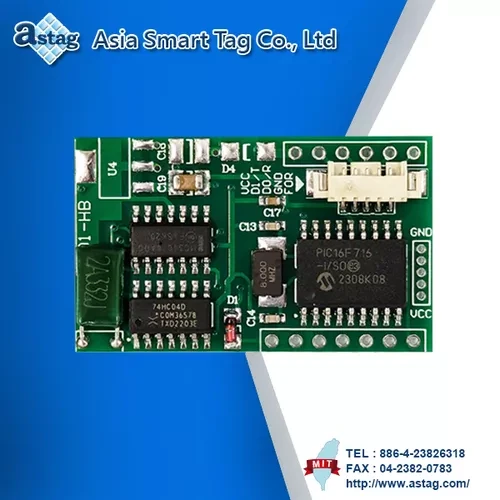

RFID LF Module
Description
- UART / Wiegand Interface.
- Frequency Reader Module 125KHz.
- External antenna connection.
- Data transmission can customizable.
Specifications
| Product Name | RFID LF Module |
| Product No. | PML-HH12-R |
| Frequency band | 125 KHz |
| Read range |
8cm ±1 cm (External Antenna) |
| Interface |
UART / Wiegand |
| Power supply | DC 9~15V |
| Operating temperature | -30℃ ~ 70℃ |
| Storage temperature | -30℃ ~ 70℃ |
| Dimensions | 39 x 23.5 x 5mm (L x W x H) |
| Support | HID standard card |
|
ISO standard |
ISO 11785 |
Interface
| Product No. | PML-HH12-R | PML-HH12-W |
| Interface | UART | Wiegand |
