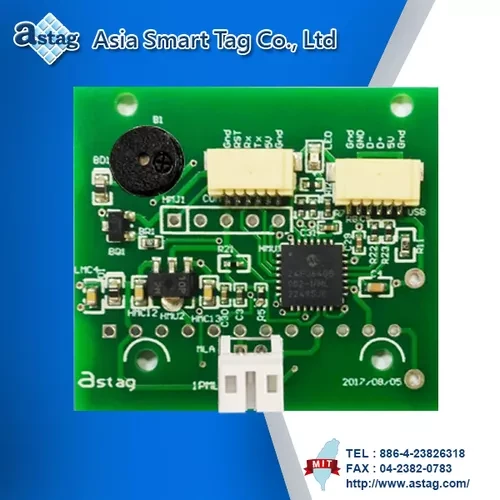

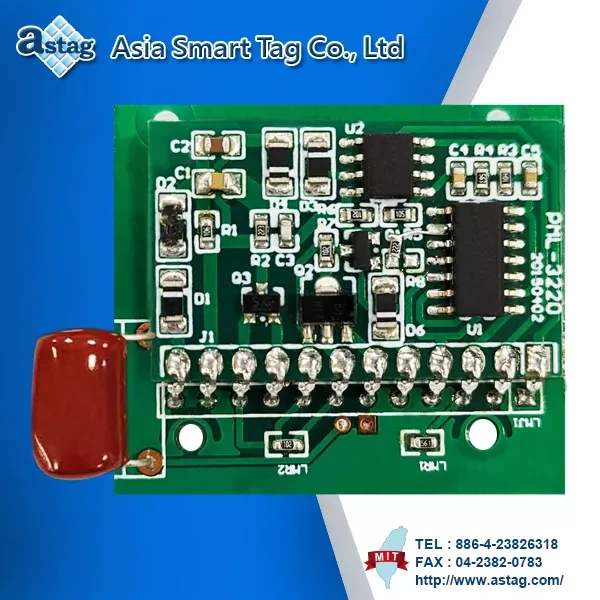

RFID LF Module
Description
- UART / USB Keyboard Wedge Interface.
- Frequency Reader Module 125KHz.
- External antenna connection.
- Data transmission can customizable.
Specifications
| Product Name | RFID LF Module |
| Product No. | PMLDD12KBU |
| Frequency band | 125 KHz |
| Read range |
10cm ±1 cm (External Antenna) |
| Interface |
UART / USB-HID / USB Keyboard Wedge |
| Power supply | DC 5V |
| Dynamic mode | 93 mA |
| Operating temperature | -30℃ ~ 70℃ |
| Storage temperature | -30℃ ~ 70℃ |
| Dimensions | 44.7 x 32.0 x 9.9mm (L x W x H) |
| Support | Buzzer、LED |
|
ISO standard |
ISO 11785 |
Interface
| Product No. | PMLDD12RBU | PMLDD12HBU |
| Interface | UART | USB-HID |
| Product No. | PMLDD12KBU | |
| Interface | USB Keyboard Wedge |
