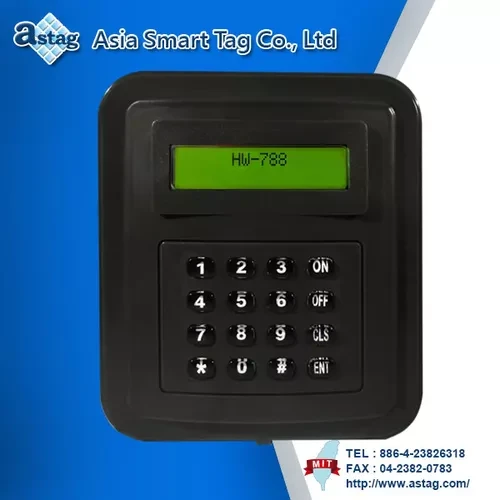

RFID LF Proximity Reader
RFID LF Proximity Reader
Type：PRL-788Read range：15 cm
Model : PRL-788
Specifications
| Frequency band | 125 KHz | |
|---|---|---|
| Read range | 15 cm (Proximity Card) | |
| Reading time | 0.1 Sec | |
| Operating time | 0.6 Sec | |
| Output interface | Wiegand 26 bit | |
| ISO standard | ISO 11785 | |
| Power | DC 12 V | |
| Parameter | 475 uH(3300PF) | |
| Data baud rate | 400 ~ 4K(bits / sec) | |
| Max supply current | 300 mA | |
| Stand by current | 69.8 mA | |
| Operating current | 161.2 mA | |
| Card max capacity | 6000 | |
| Memory | 12000 | |
| Operating temperature | -30°C ～ +75°C | |
| Storage temperature | 0°C ～ +75°C | |
| Weight | 300 g | |

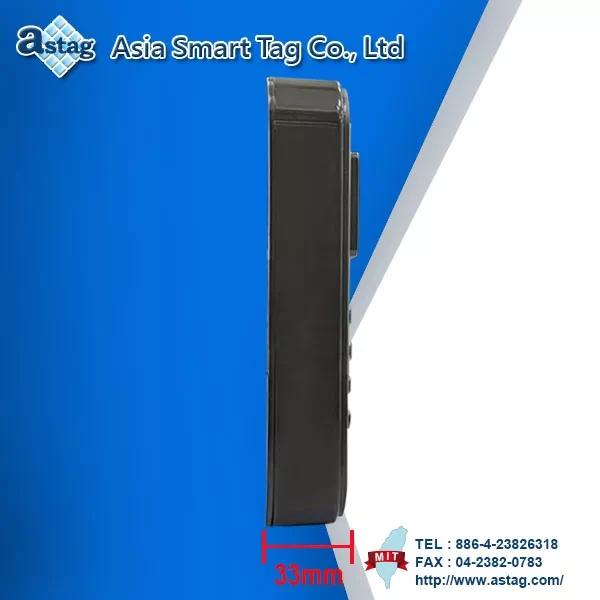

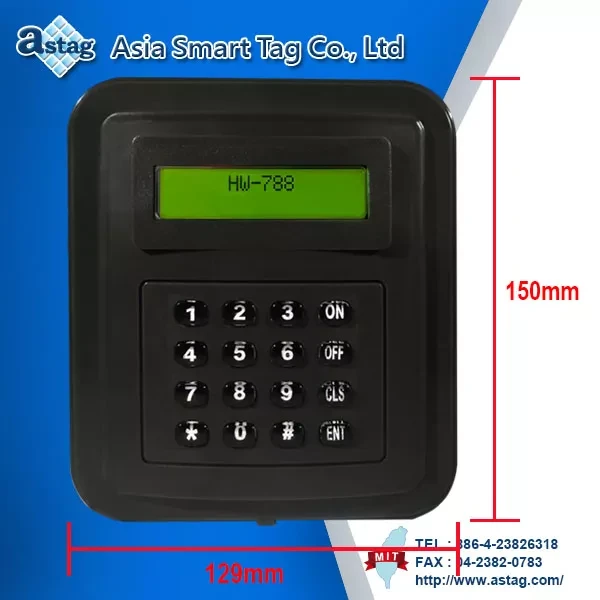

| Size | 150 x 129 x 33 mm(L x W x H) | |
- The sensor can be used separately indoors or
outdoors which is compatible with the proximity
reader and access control system. - Reading ranges 15cm.
- Can not pass in and out event if the reader is
broken.
Features
Supports：
1. Support IC EM standard series.
2. These interfaces allow the module to communicate with external devices such as computers(Windows 10/11), microcontrollers, or network servers.
Function：
1. It can be identified through proximity card and tag sensing.
2. The low-frequency band has stronger penetration and is less affected by external interference.
Applications
ATTENDENCE / ACCESS CONTROL
RFID application is very popular in access and attendance control for convenience and security purposes. With proximity reader (sensor and standalone), access and security management is possible with proximity card and key chain. Information such as attendance, access data tracking and monitoring is stored and can be printed for analysis.
OTHER
Reader's function can be customized.
