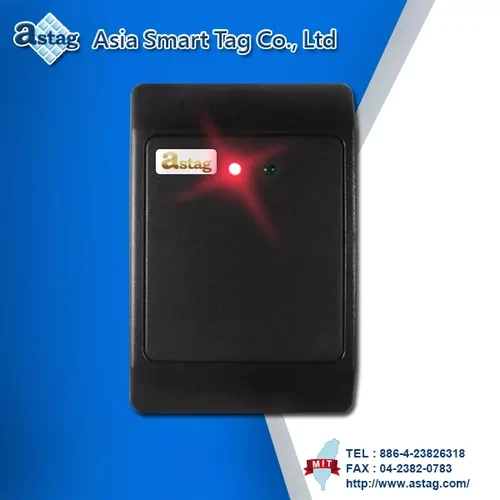

RFID LF Reader – UART
RFID LF Reader – UART
Type：PRL-578R
Frequency：125 KHz
Read range：Up to 15 cm(PCL-05)
Model : PRL-578R
Read range：Up to 15 cm(PCL-05)
Model : PRL-578R
Specifications
| Frequency band | 125 KHz | |
|---|---|---|
| Read range | Up to 15 cm(PCL-05) | |
| Host interface | UART | |
| Wiegand | ||
| RS-232 | ||
| RS-485 | ||
| BLE | ||
| WiFi (option) | ||
| Virtual Com Port | ||
| ISO standard | ISO 11785 | |
| Modulation | ASK | |
| FSK | ||
| PSK | ||
| UART data rate | 57600, N, 8, 1(customizable) | |
| Input voltage range | DC 12V | |
| Operating temperature | -30℃ to +75℃ | |

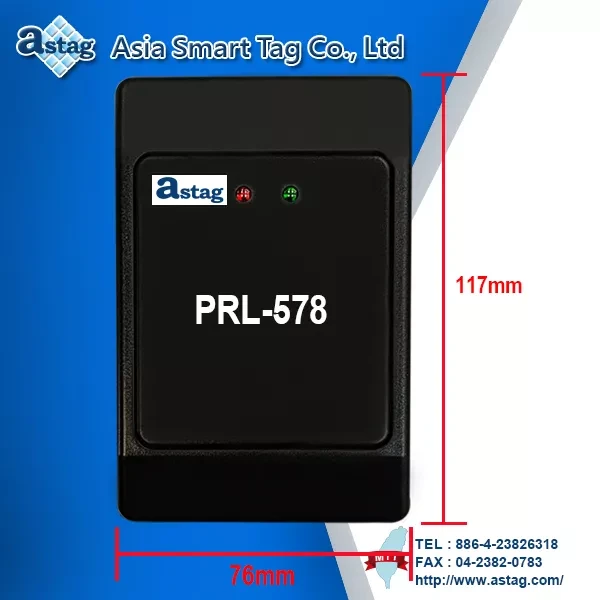

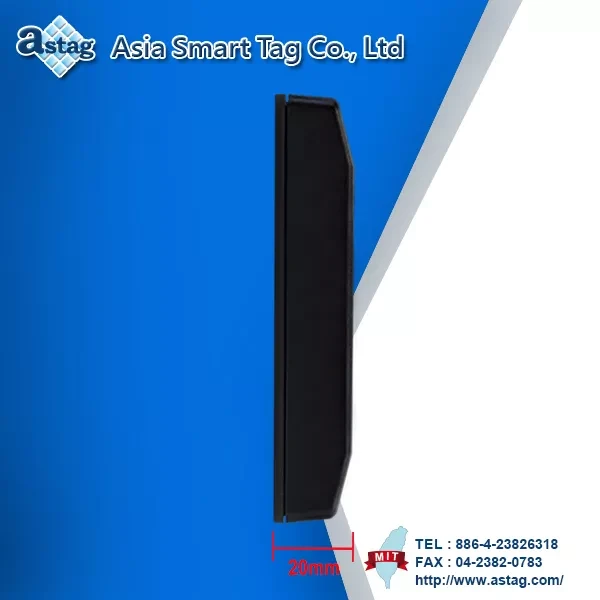

| Dimensions | 117 x 76 x 20 mm(L x W x H) | |
- UART interface.
- Wiegand，RS-232，RS-485，BLE，WiFi can be option.
- Data transmission can customizable.
Features
Supports：
1. EM standard series, station number setting.
2. These interfaces allow the module to communicate with external devices such as computers(Windows 10/11), microcontrollers, or network servers.
Function：
1. It can be identified through proximity card and tag sensing.
2. Continuous transmission or single data transmission.
3. The low-frequency band has stronger penetration and is less affected by external interference.
Interface
Product number |
PRL578R | PRL578U | PRL578I | PRL578W |
Interface |
UART | USB | I2C | Wiegand |
Product number |
PRL578B | PRL578D | PRL578L | PRL578F |
Interface |
RS232 | RS485 | BLE | WIFI |
Applications
1. Identity recognition
2. access management
3. access control
