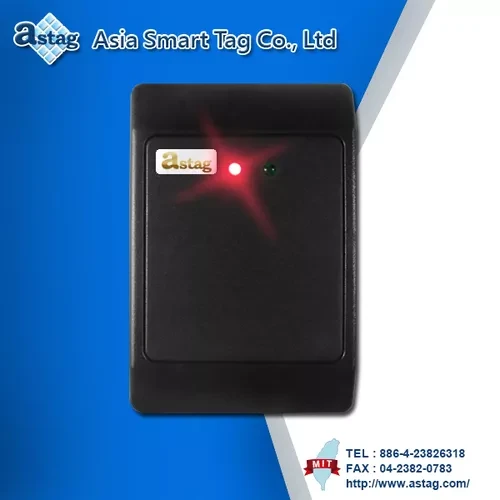

RFID LF Reader – USB
RFID LF Reader – USB
Type：PRL-578U
Frequency：125 KHz
Read range：Up to 15 cm(PCL-05)
Model : PRL-578U
Read range：Up to 15 cm(PCL-05)
Model : PRL-578U
Specifications
| Frequency band | 125 KHz | |
|---|---|---|
| Read range | Up to 15 cm(PCL-05) | |
| USB interface | USB | |
| HID | ||
| CCID | ||
| Keyboard Wedge(option) | ||
| Virtual Com Port | ||
| ISO standard | ISO 11785 | |
| Modulation | ASK | |
| Data output | Continuous transmission | |
| Only send data once | ||
| Power | Bus Powered | |
| Output Power | DC 12V | |
| Operating temperature | -30℃ to +75℃ | |

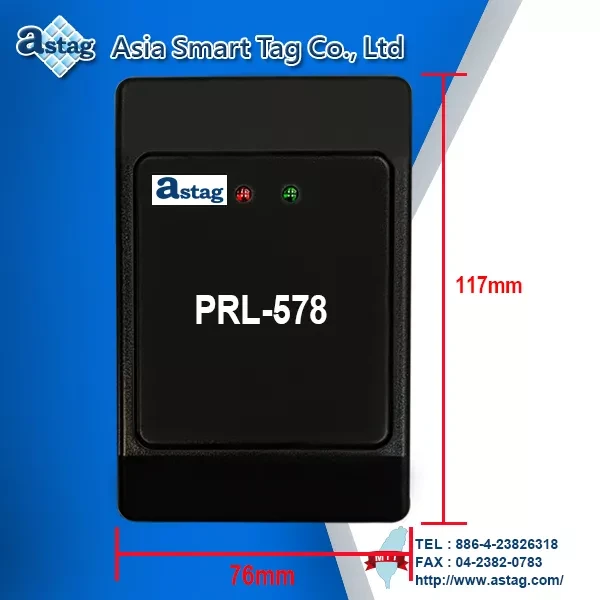

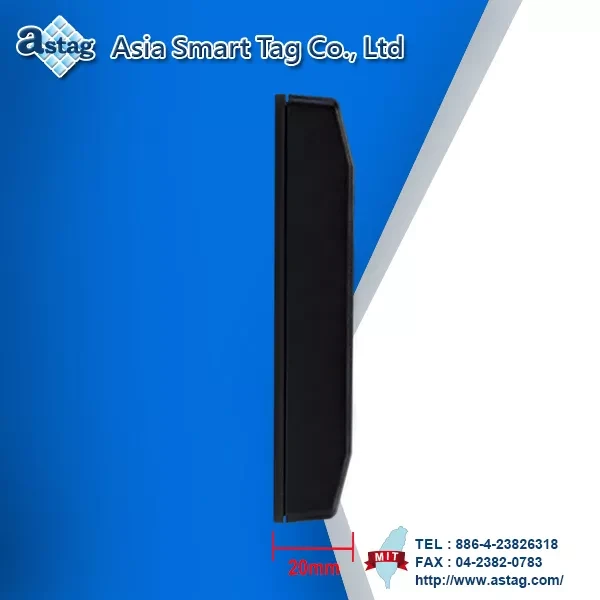

| Dimensions | 117 x 76 x 20 mm(L x W x H) | |
- High power sawing.
- USB interface HID/CCID/Keyboard Wedge.
Features
Supports：
1. EM standard series.
2. These interfaces allow the module to communicate with external devices such as computers(Windows 10/11), microcontrollers, or network servers.
Function：
1. It can be identified through proximity card and tag sensing.
2. Continuous transmission or single data transmission.
3. The low-frequency band has stronger penetration and is less affected by external interference.
Interface
Product number |
PRL578H | PRL578C | PRL578K |
Interface |
HID | CCID | Keyboard wedge |
Applications
1. Identity recognition
2. access management
3. access control
