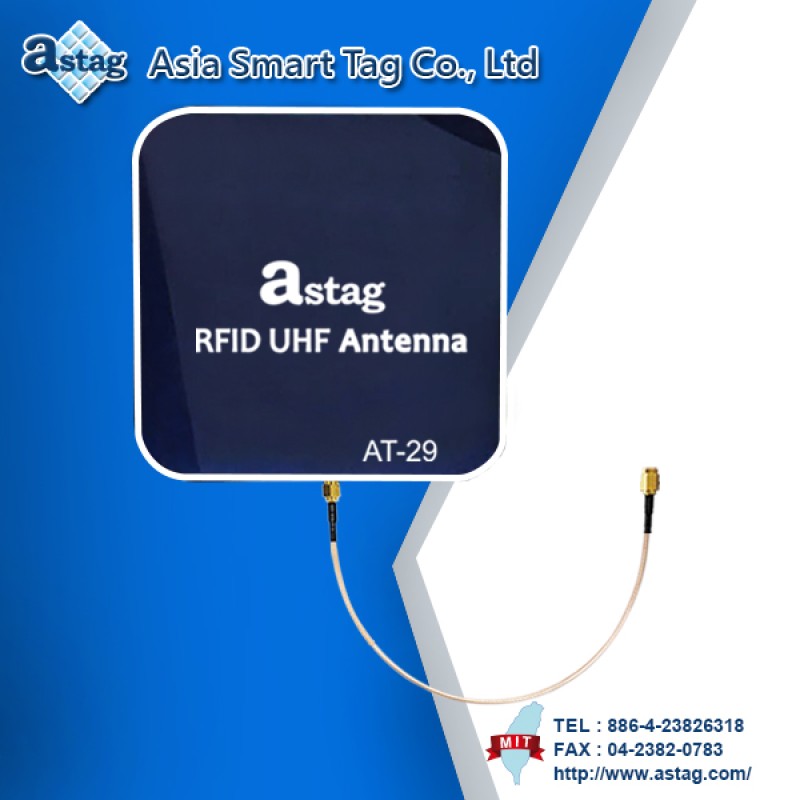

RFID UHF Antenna
Specifications
|
Model |
AT-29 |
|
Frequency band |
902~928 MHz |
|
Gain |
9dBi |
|
Polarization |
Circular Polarization |
|
Impedance |
50 Ω |
|
Connector |
SMA male |
|
Size |

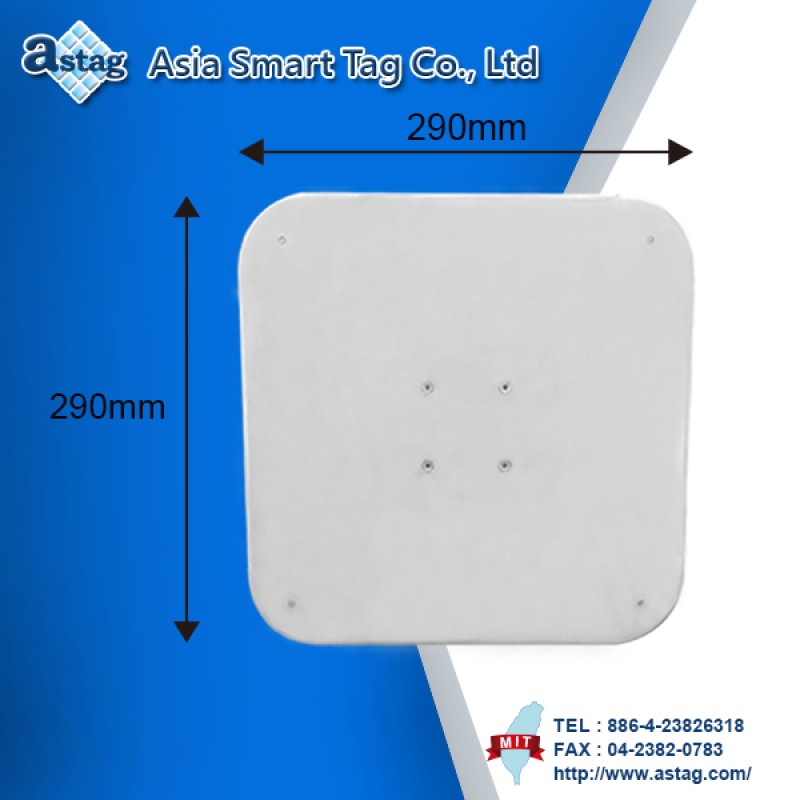

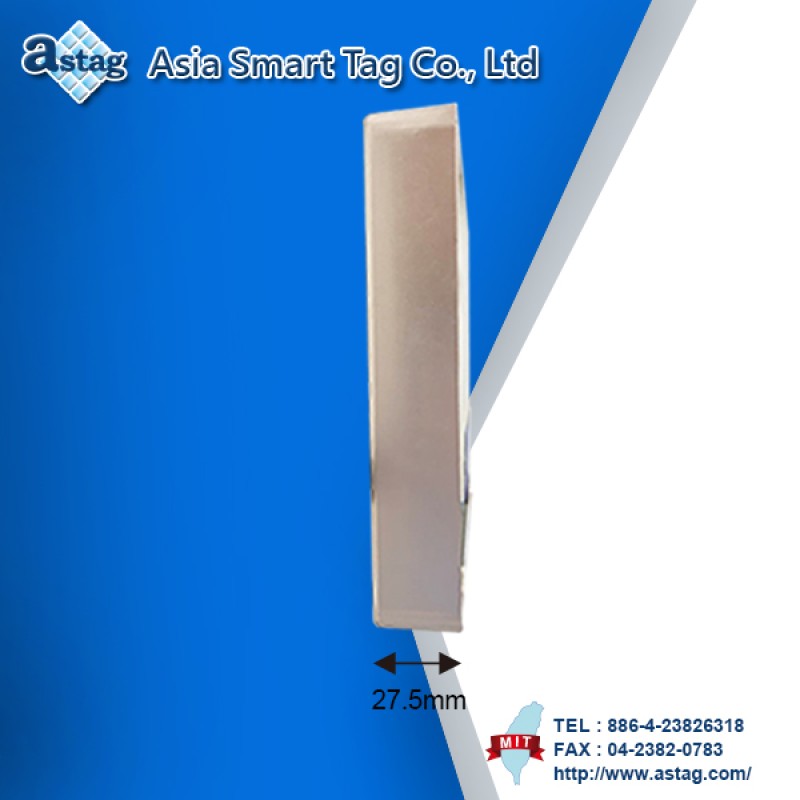

290 x 290 x 27.5mm(L x W x H) |
Features
AT-29 Radiation pattern：
|

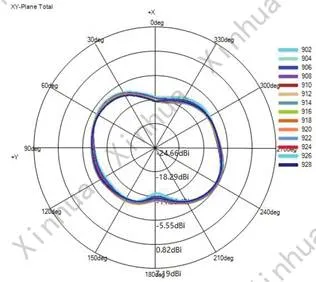

(1) X-Y Plane(unit:dBi): |

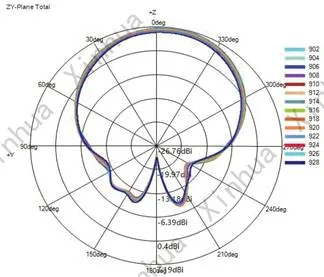

(2) Z-Y Plane(unit:dBi): |

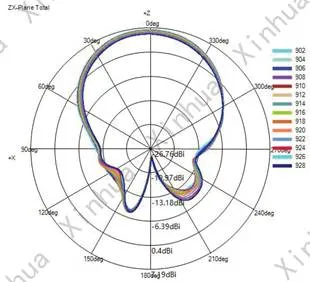

(3) Z-X Plane(unit:dBi): |
|
|
|
|
|

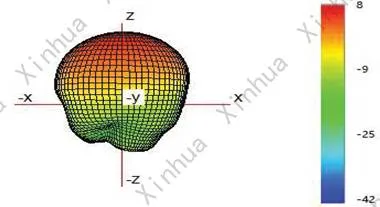

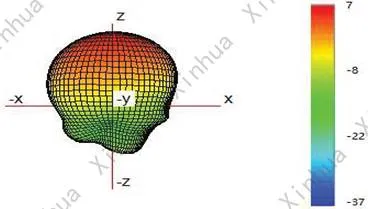

(4) Typicall Free Space 3D Radiation Pattern at 902MHz(unit:dBi): |
(5) Typicall Free Space 3D Radiation Pattern at 916MHz(unit:dBi): |
(6) Typicall Free Space 3D Radiation Pattern at 928MHz(unit:dBi): |
|
|
|
|
