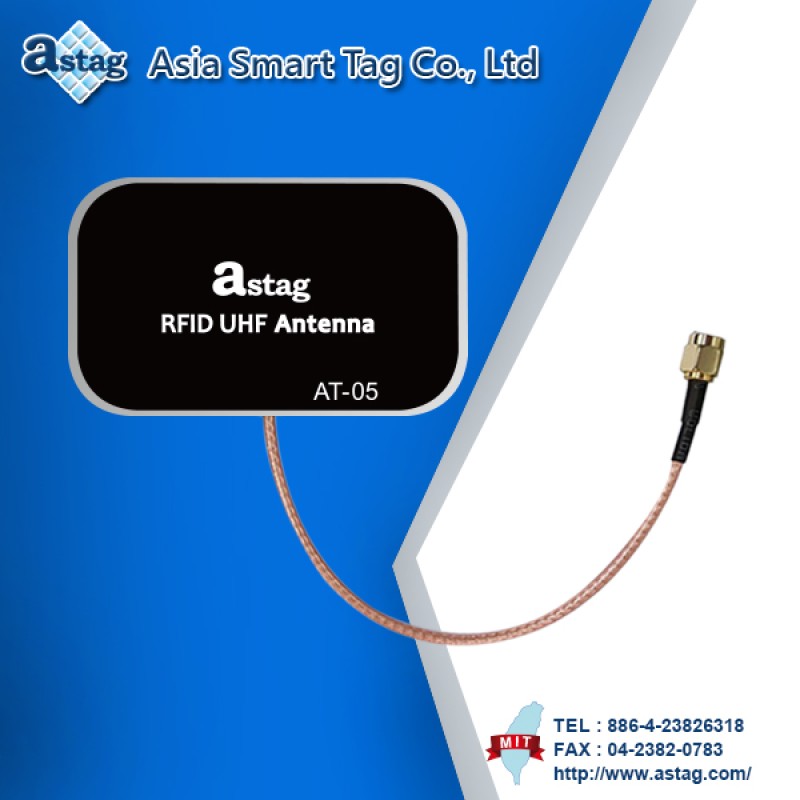

RFID UHF Antenna
Specifications
|
Model |
AT-05 |
|
Frequency band |
915 MHz |
|
Gain |
2dBi |
|
Polarization |
Linear Polarization |
|
Impedance |
50 Ω |
|
Connector |
SMA male |
|
Size |
90 x 54 x 20 mm(L x W x H) |
Features
AT-05 Radiation pattern：
|

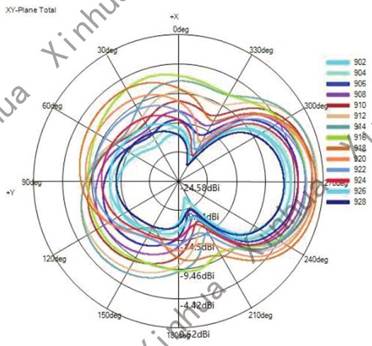

(1) X-Y Plane(unit:dBi): |

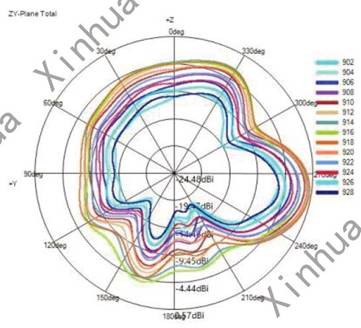

(2) Z-Y Plane(unit:dBi): |

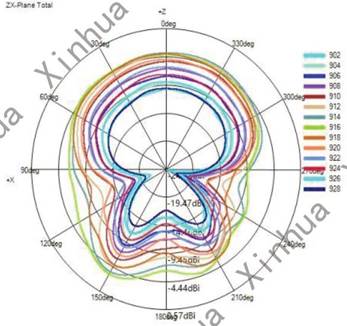

(3) Z-X Plane(unit:dBi): |
|
|
|
|
|

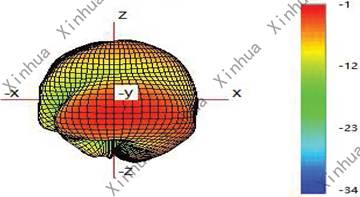

(4) Typicall Free Space 3D Radiation Pattern at 902MHz(unit:dBi): |

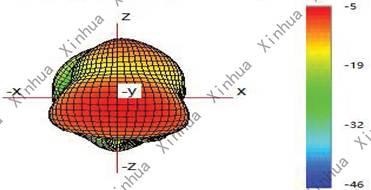

(5) Typicall Free Space 3D Radiation Pattern at 916MHz(unit:dBi): |

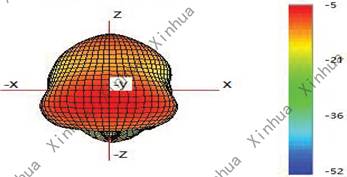

(6) Typicall Free Space 3D Radiation Pattern at 928MHz(unit:dBi): |
|
|
|
|
