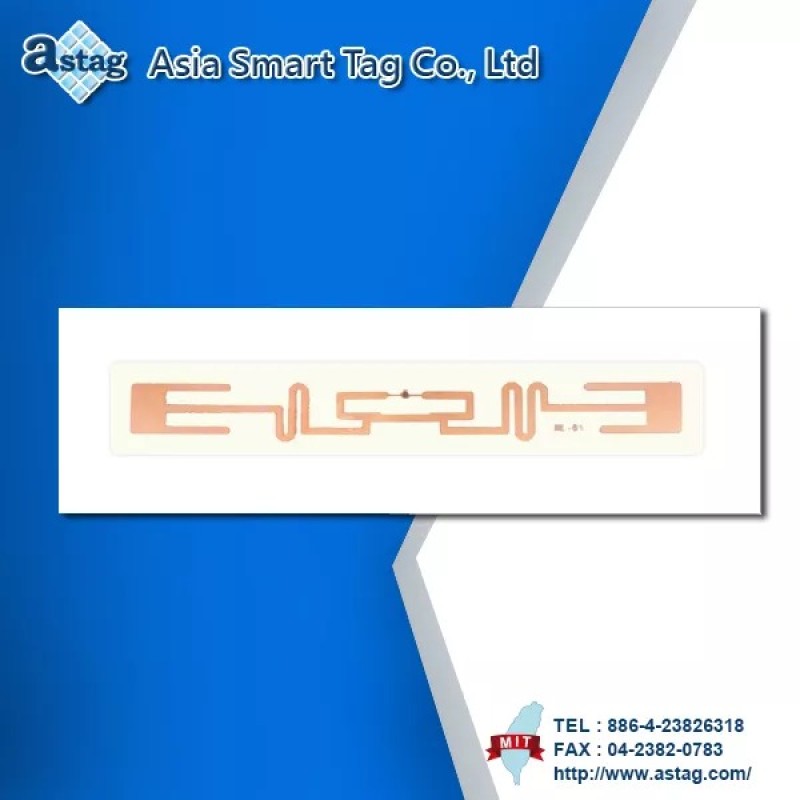

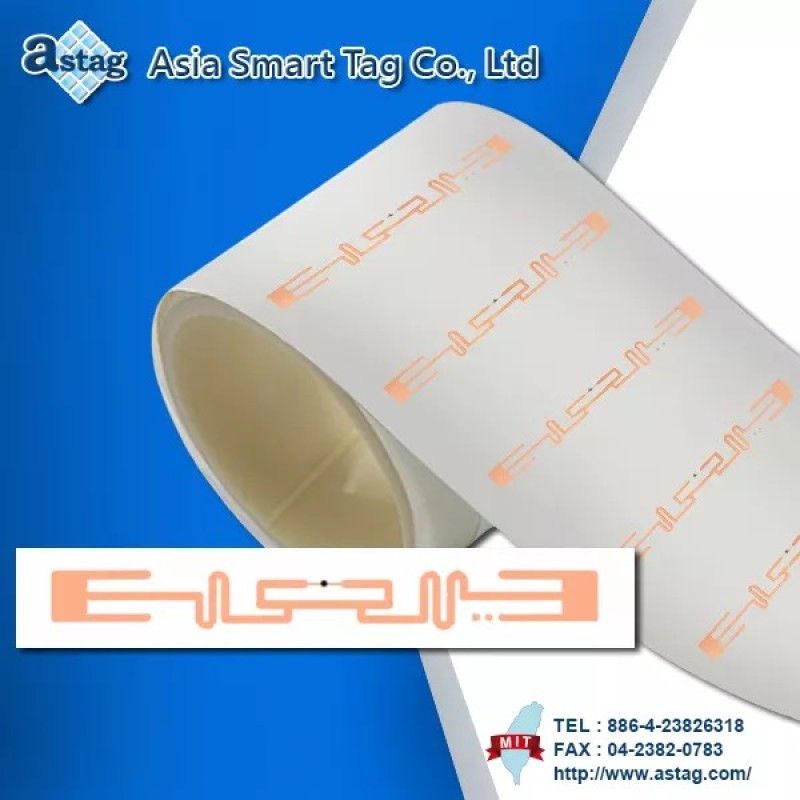

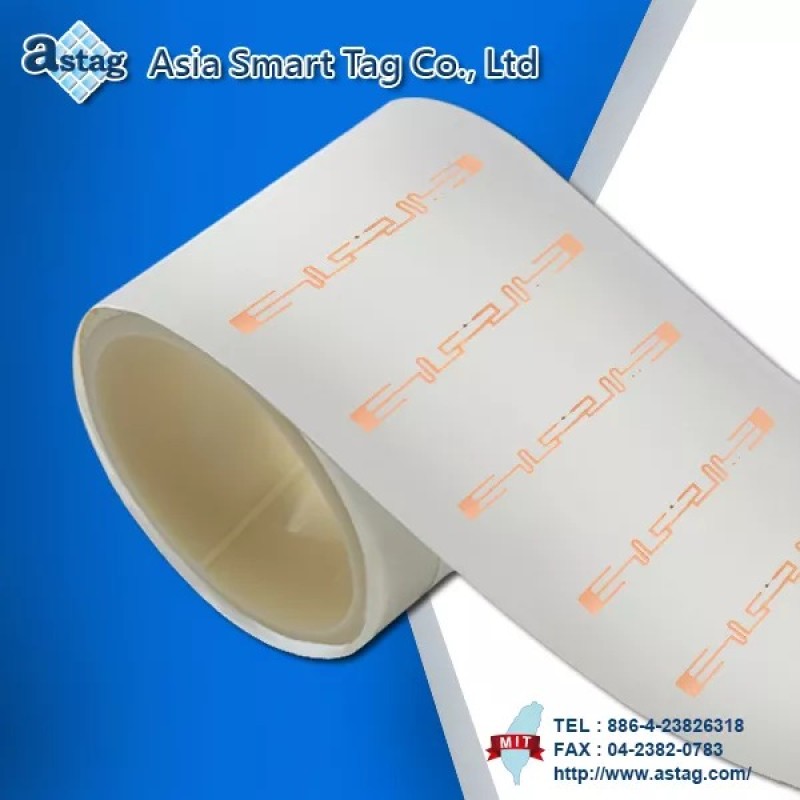

RFID UHF Inlay & Label
Specifications
| Operating frequency | 860 ~ 868 MHz；902 ~ 928 MHz |
|---|---|
| Tested read range | 7~10 M |
| Tested reader | AWID_TLR3000(EPC+TID) |
| Power source | Passive |
| Transmission principle | HDX (Half Duplex) |
| ISO Standard | ISO 18000-6C |
| EPC-C1G2 | |
| IC | Monza 4E / Monza R6 / ALIEN H3 / ALIEN H9 / NXP U Code 8 / NXP U Code 9 |
| IC memory(Bits) | 800 |
| EPC memory(Bits) | 96 |
| TID memory(Bits) | 96 |
| Programming cycles | 100000 |
| Functionality | Read |
| Write | |
| EPC-extended temperature | -30 ℃ ~ +80 ℃ |
| Antenna material | Copper |
| Waterproof | IP66 |
| Label size | 105 x 25 (mm) |
Features
Introduction
Applications

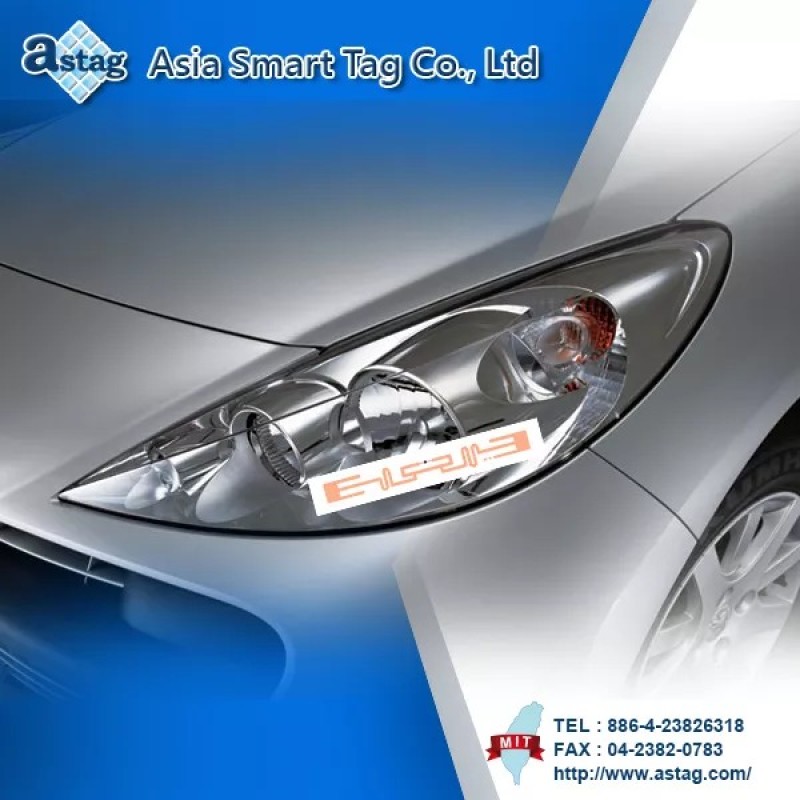

- Car label.
- Convenient for ETC system.
- Tracking Management.
- Welcome customized.
- Reliable quality.
Product Inquiry
| Image | Product Name |
|---|---|
|
RFID UHF Inlay & Label PLU-025105 |
