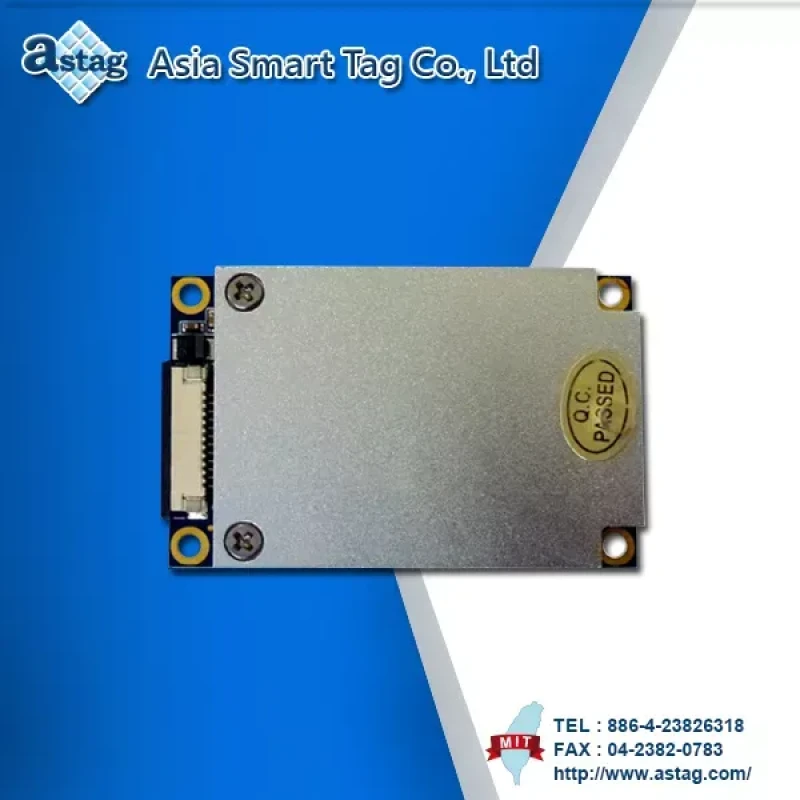

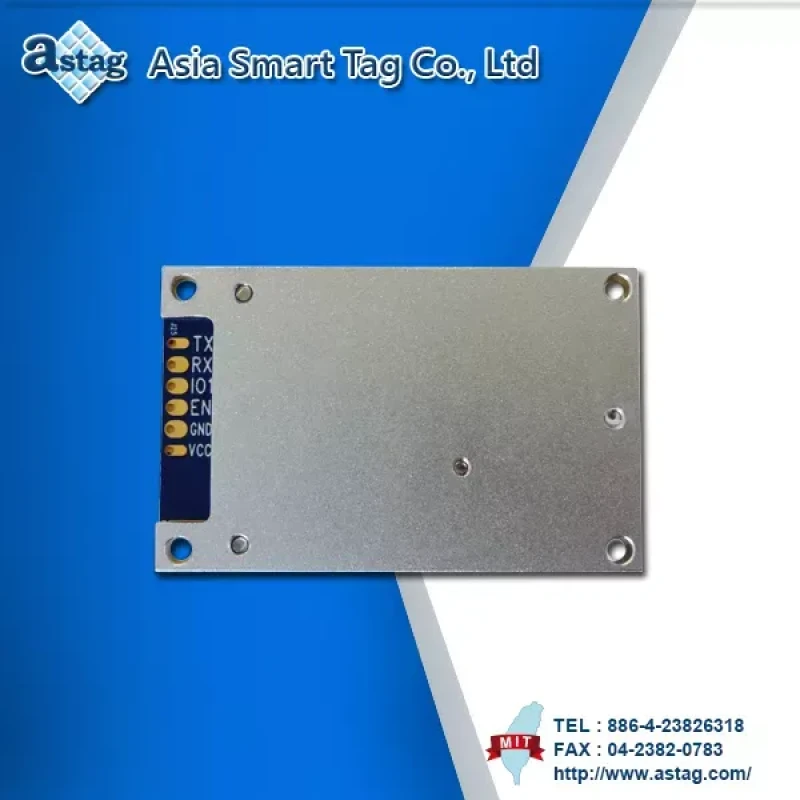

RFID UHF Module 4 Port
Specifications
| Product Name | RFID UHF Module 4 Port |
| Product No. | PRUM4IR2R01 |
| Frequency band | NA : 902~928 MHz Eu : 865~868 MHz Ta : 922~928 MHz |
| Reading range | Around 5 m |
| Interface | UART |
| RS-232 / RS-485 | |
| Wiegand (option) | |
| Channel bandwidth | 250 KHz(customizable) |
| Frequency hopping speed |
≤ 2 s |
| Tag protocol | EPC C1G2 |
| ISO 18000-6C | |
| Muti-tags | > 400/s |
| Working voltage | 5V |
| Max TX power | 30 dBm |
| Stepping interval | 1 dB |
| Working current | 950 mA |
| Current consumption (Standby) |
≤ 1 mA |
| Operating temperature | -30℃ ~ 75℃ |
| Storage temperature | 0℃ ~ 70℃ |
| Dimensions | 55(L) x 35(W) x 7(H) mm |
- UHF RFID Reader uses R2000 chips,it max power output is 30dBm.
- Maximum identifying speed can reach 400 tags/sec.
- Many external ports, Including RS232, GPIO*3, can meet different client’s requirement.
- Supports：These interfaces allow the reader module to communicate with external devices such as computers(Windows 10/11), microcontrollers, or network servers.
- Advantages：UHF RFID technology offers advantages such as longer read ranges, higher data transfer rates, and the ability to read multiple tags simultaneously.
- Other support：can be connected to external Antenna and control switch.
- Excellent read and write performance, it is suitable for complicated environment application, for example logistics, clothing, asset management etc.
Interface
| Product No. | PRUM4IR2R01 | PRUM4IR2B01 | PRUM4IR2D01 | PRUM4IR2W01 |
| Interface | UART | RS-232 | RS-485 | Wiegand |
