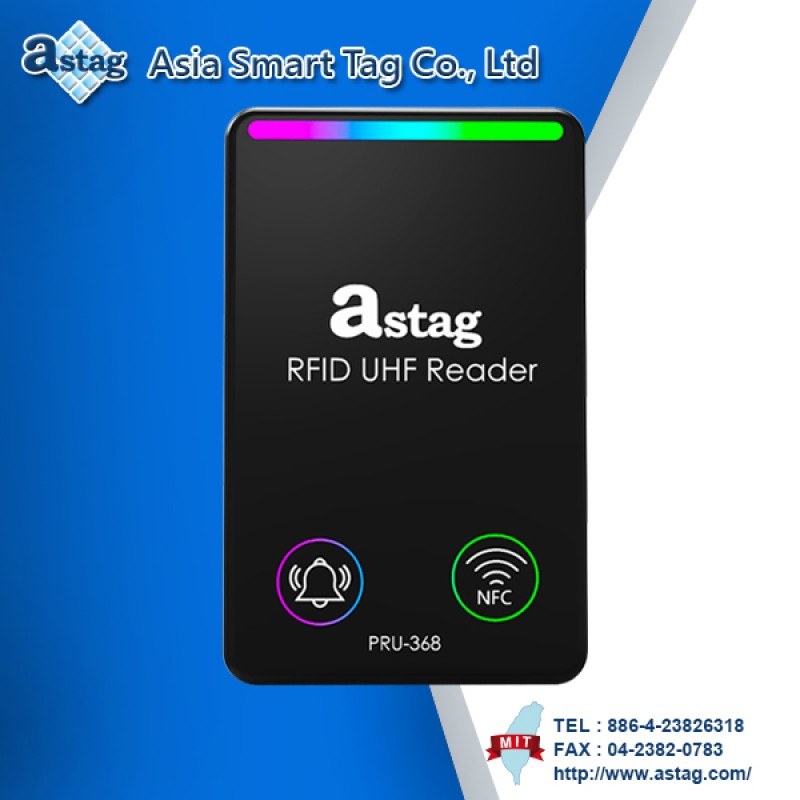

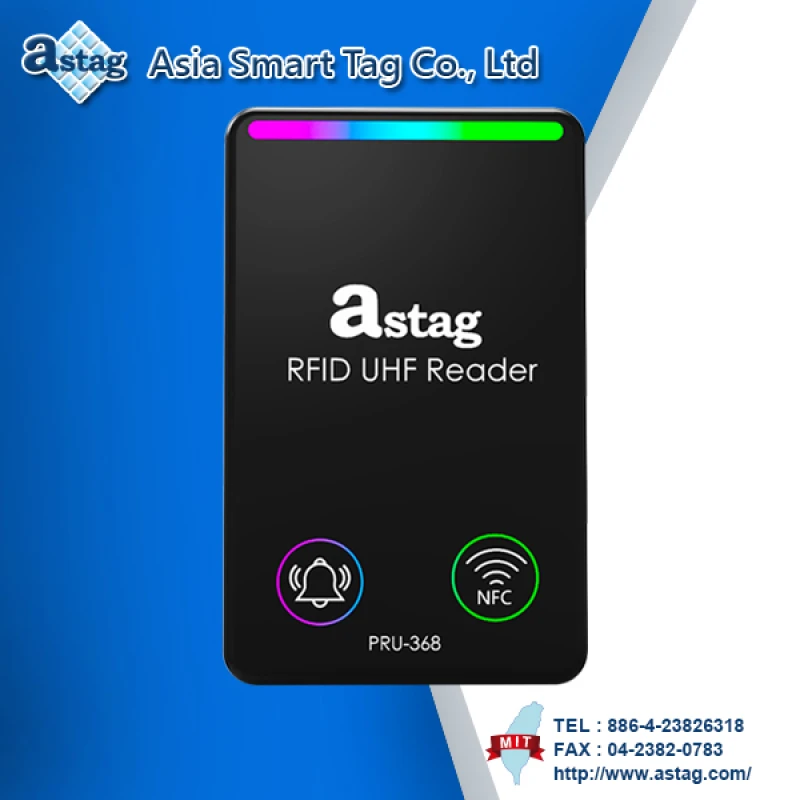

RFID UHF Reader
Specifications
|
Model |
PRU-368 |
|
Frequency band |
UHF 840~960MHz；HF 13.56 MHz |
|
Input power |
DC12V∼24V |
|
Output power |
30dBm (Max.) |
|
ISO standard |
ISO18000-6C、EPC C1G2；ISO-14443A/B/C、ISO-15693 |
|
Interface |
WiFi、RS-485 (3.3 VDC)、Wiegand (5 VDC) |
|
Reading distance |
UHF read range around 4m；HF read range 3cm ±1 cm |
|

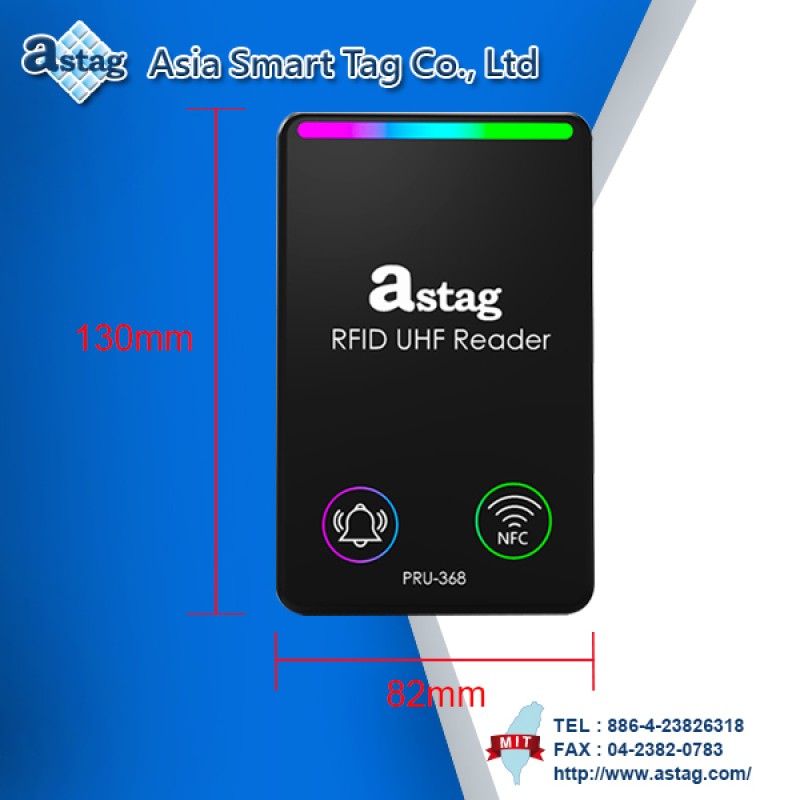

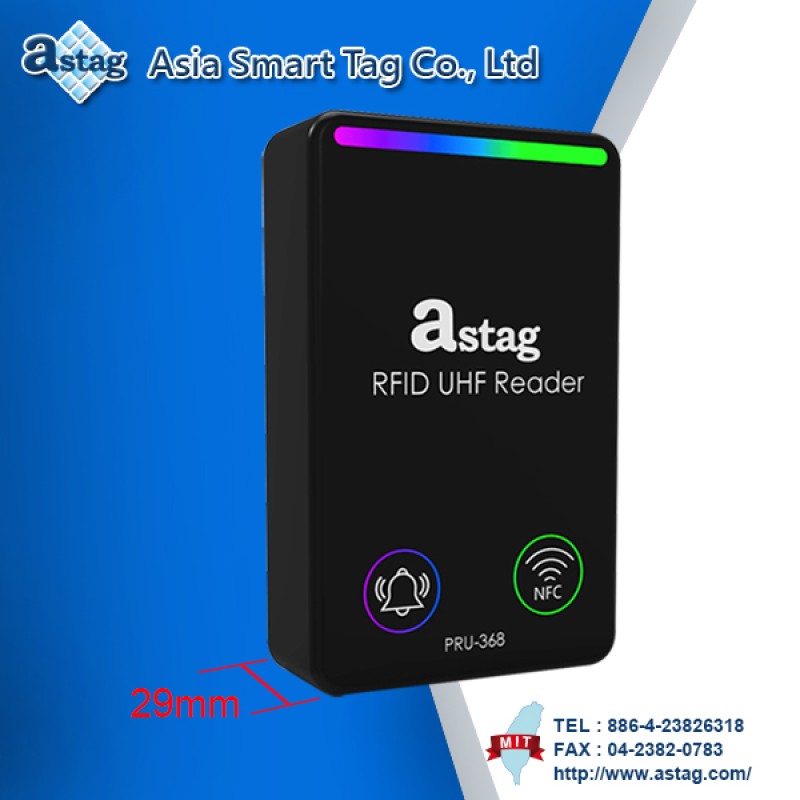

Size |
130 x 82 x 29mm(LxWxH) |
|
Button |
Doorbell |
|
Status indicator |
Buzzer、LED |
|
External control |
Relay outputs 32VDC 1.3A x 3；Sensor inputs x 3 |
|
Card max capacity |
10000 |
|
Memory max capacity |
20000 |
Features
- Supports：These interfaces allow the module to communicate with external devices such as computers, microcontrollers, or network servers.
- Advantages：The PRU-368 dual-band reader integrates“Aliro” technology, allowing smartphones to replace physical keys. iPhone and Android users can unlock doors simply by sensing their phones on the reader without downloading any application. The PRU-368 establishes a secure communication connection with mobile devices, providing users with a safe, stable, and reliable access control management system.
- Customizable：Size / Design / Function / Interface specifications.
Applications
1. Access control management
2. Identity verification
3. Attendance management
