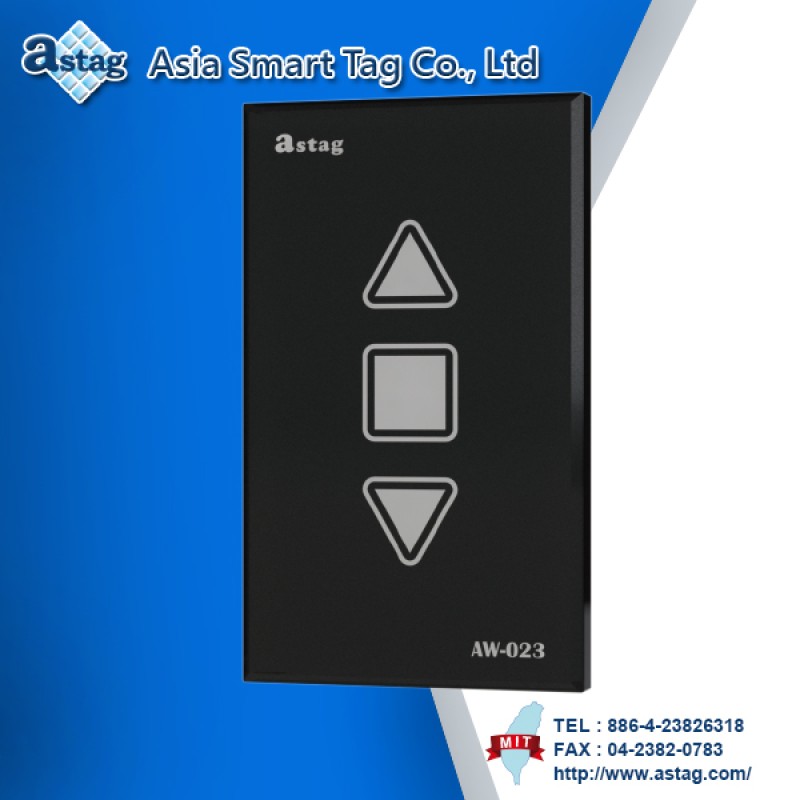

WiFi Smart Roller Shutter
Specifications
|
Model |
AW-023 |
|
Support Communication |
mobile phone、WiFi |
|
Mobile System Version |
IOS8.0 / Android7.0 and above |
|
App |
Astag APK |
|
WiFi protocol |
IEEE 802.11 b/g/n, 2.4 GHz |
|
Pressure Protection Function |
customizable |
|
Shell Material |
PC |
|
Rated Power |
2200W |
|
Rated Current |
10A |
|
Input Voltage |
AC100 ~ 250V, 50 / 60hz |
|
Standby Power Consumption |
< 0.3W |
|
Operating Temperature |
-20°C ~ 70°C |
|
Storage temperature |
0°C ~ 70°C |
|
Size |
120 x 72 x 35mm(L x W x H) |
Features
1. Operated via wireless mobile communication — convenient, simple, and secure.
2. Supports remote control of the roller shutter.
3. Enables remote monitoring of the shutter’s open/close status.
4. Every operation is logged with the user’s name, date, time, and status for future reference.
5. Adjustable output action time, compatible with both new and old electric shutters.
6. Supports both high-speed shutters and traditional roller shutter.
7. Original remote controls remain functional.
8. Push notifications for door open/close actions.
9. Anti-crush function (customizable).
