Access Control Reader
Specifications
| Frequency | 13.56 MHz ±3% | |
|---|---|---|
| Read range | 5 cm | |
| Reading time | 0.1 Sec | |
| Operating time | 0.6 Sec | |
| IC ITEM | Mifare IC | |
| Output interface | Wiegand 26 bit | |
| ISO standard | ISO-14443A / ISO 15693 | |
| Output relay | DC 5 A / 12 V | |
| Power supply input | DC 12V | |
| Stand by current | 69.8 mA | |
| Operating current | 161.2 mA | |
| Card max capacity | 2000 | |
| 6000 | ||
| 10000 | ||
| Memory max capacity | 3000 | |
| 5000 | ||
| 7000 | ||
| 9000 | ||
| Baud rate | 9600,8,N,1 | |
| Operating temperature | -30°C ～ +75°C | |
| Storage temperature | 0°C ～ +75°C | |
| Weight | 240 g | |

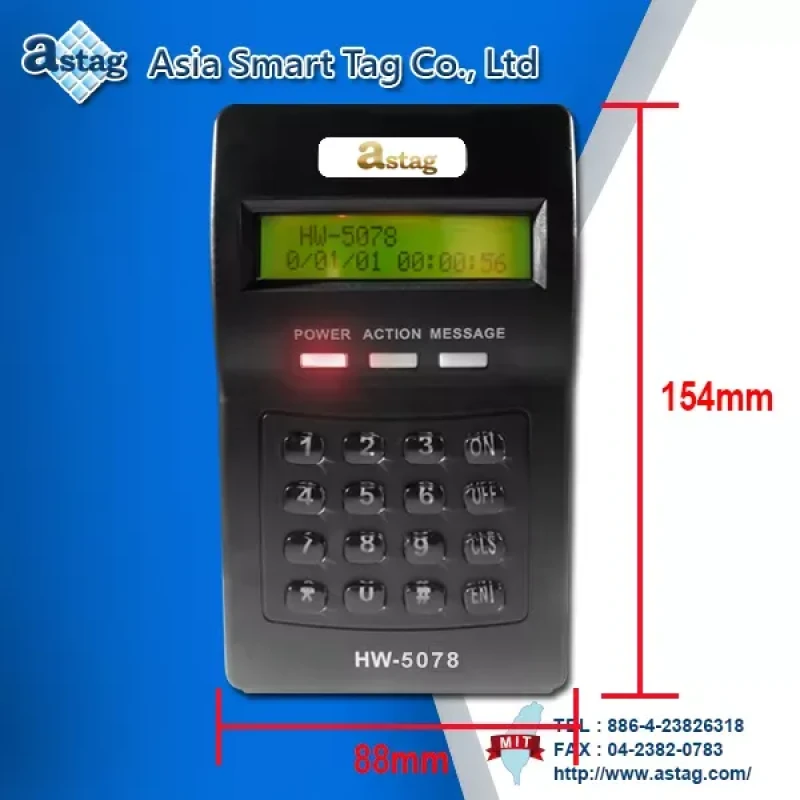

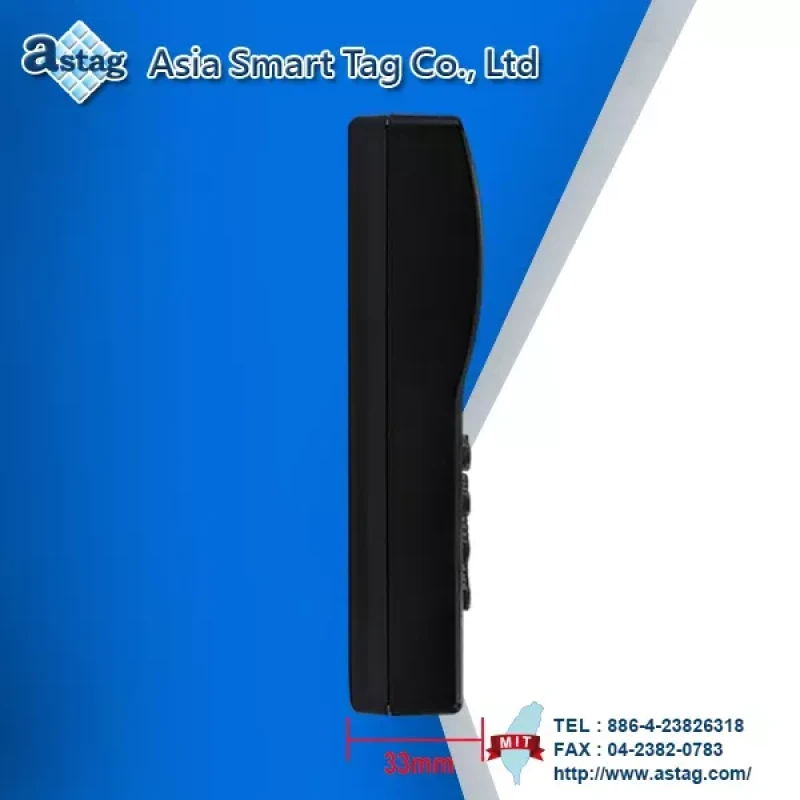

| Size | 154 x 88 x 33 mm(L x W x H) | |
- Password or Proximity Card is available.
- Reading ranges 5cm.
- The capacity is 2000/ 6000/ 10000/ three installation.
- Random card numbers is available.

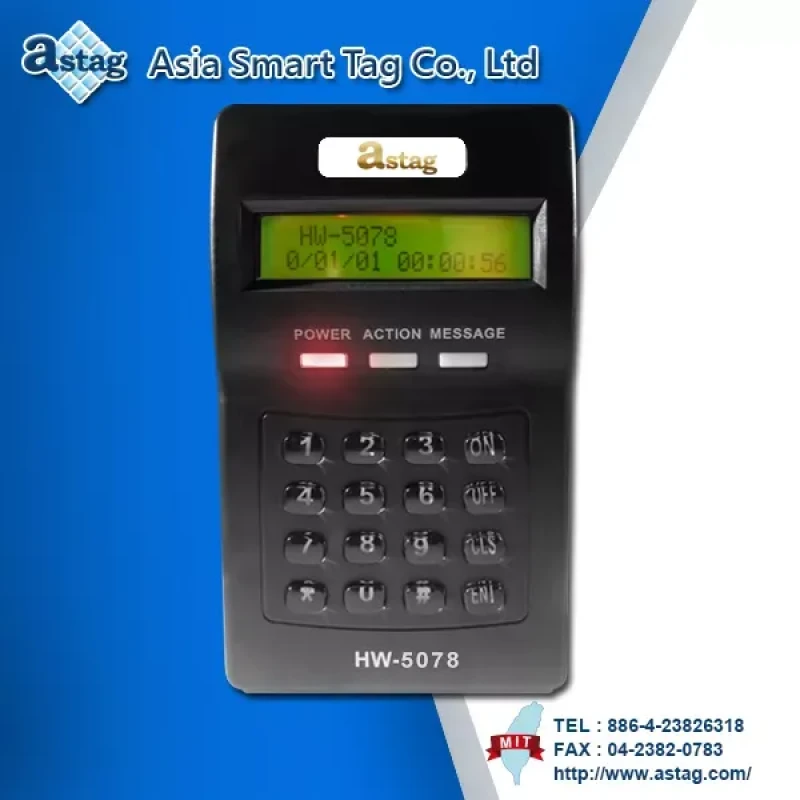

- Large LCD screen and 16 keypads. Displaying 16 characters x 2 lines.
- LCD screen can display the Model, Date and Time when standby.
- Reader can record the data of come in and go out.
- The Original installation is 1000 records.
- Set up 3000/ 5000/ 7000/ 9000/ records that depend on the customers.
- Inquiring the data from Reader directly.
- Built-in the watch output. Compatible with the monitor system.
- Built-in tamper switch detects if case is under force.
- Increasing and deleting card numbers by keyboard directly.
- Set up the functions by keyboard directly. LCD display.
- Reader's memories are never deleted even if power failure.
- Sensor and Alarm will be started when the door is unlocked or under force.
- Compatible with the Reader (Wiegand 26 bit).
- Separating PRH-578 / 588 and Reader (Wiegand 26 bit) too indoors and outdoors.
Features
Supported
| Standard | Manufacturer Tag Brand | UID | Read | Write |
| ISO 15693 | I-Code series | Y | Y | Y |
| TiTag series | Y | Y | Y | |
| Suitable ISO 15693 series | Y | Y | Y | |
| ISO 14443A | NFC series | Y | Y | Y |
| Mifare standard series | Y | Y | Y | |
| Mifare desfire series | Y | Y | Y | |
| Mifare Ultralight series | Y | Y | Y | |
| Mifare Plus series | Y | Y | Y | |
| Suitable ISO 14443A series | Y | Y | Y | |
Applications
ATTENDENCE / ACCESS CONTROL
RFID application is very popular in access and attendance control for convenience and security purposes. With proximity reader (sensor and standalone), access and security management is possible with proximity card and key chain. Information such as attendance, access data tracking and monitoring is stored and can be printed for analysis.
OTHER
Reader's function can be customized.
