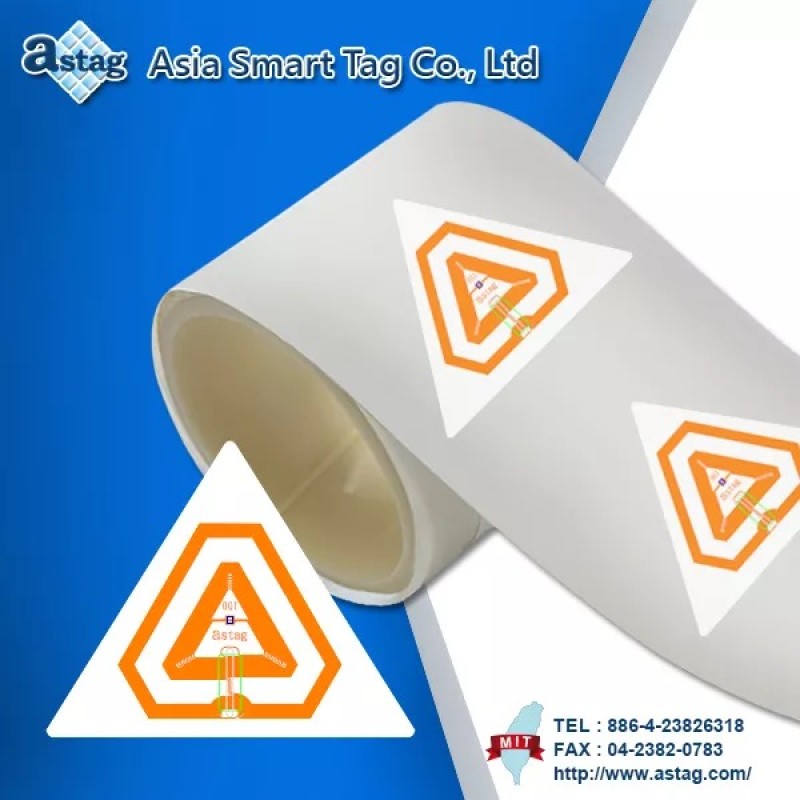

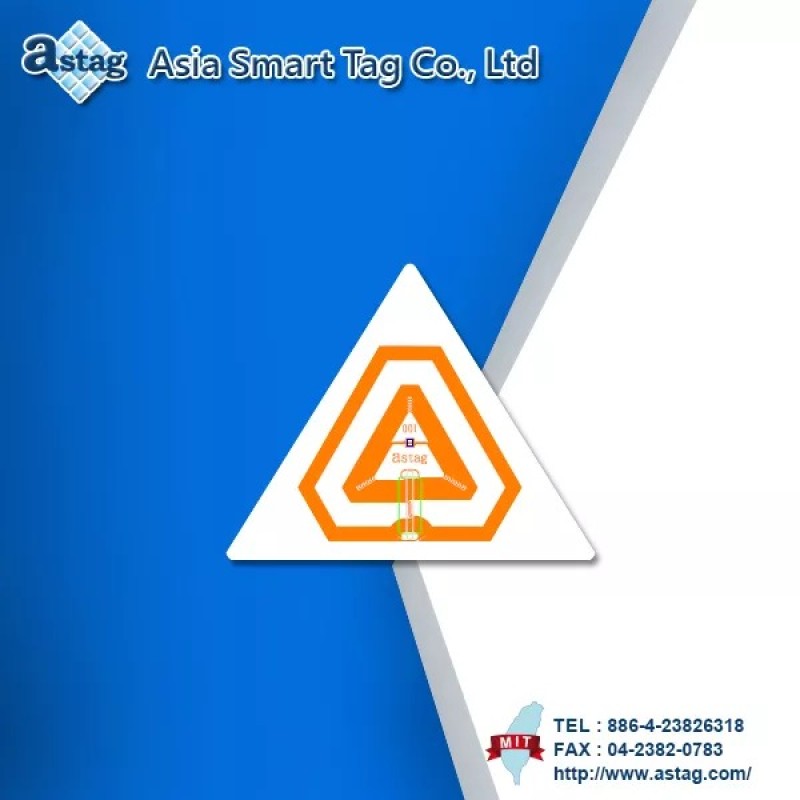

Anti-theft Label
Specifications
| Inlay | Label | |
| Frequency | 13.56 MHz ±3% | |
| Size | 36 x 31 mm(L x W) | 50 x 44 mm(L x W) |
|
Read range |
Up to 4cm | |
| Testing reader | PRH5078 | |
| Transmission principle | Passive | |
| Antenna substrate | PET | |
| Antenna material | Copper | |
| Label cover material | Glossy Paper (PP PEPA Paper) | |
| Tube material | ABS | |
| Tube size | 3 Inch | |
| Operating temperature | -30°C ~ 75°C | |
| Package | 500pcs / roll | 1000pcs / roll |
| 4 roll / carton | 4 roll / carton | |
| ISO standard | ISO-14443A / ISO-14443B / ISO 15693 | |
| IC item(IC can be customized) | I-Code series / NFC series / ST25T series | |
Features
Dimensions

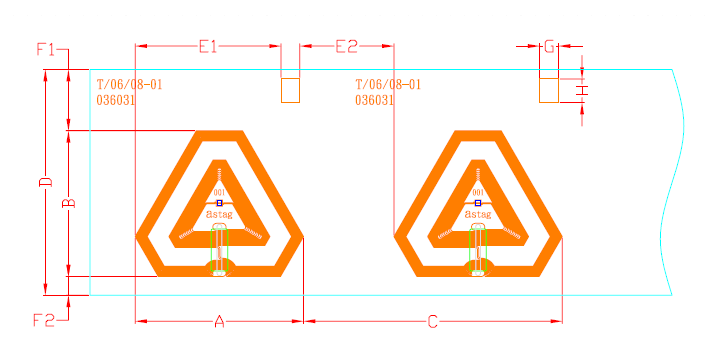

Inlay

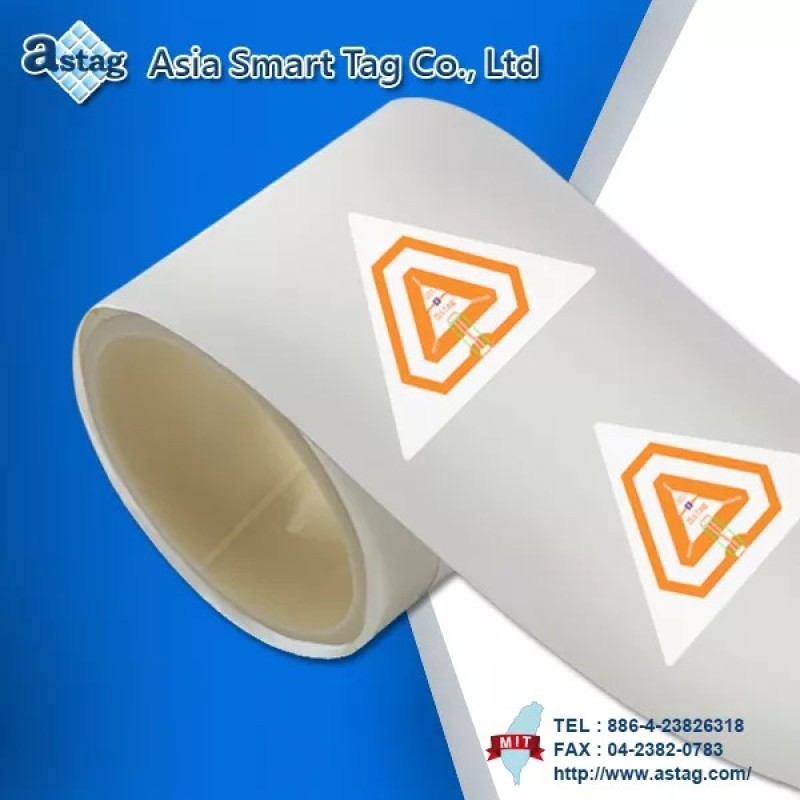

Roll Dimension
| Inlay Size Information (Unit:mm) | |||||
| X axis | Y axis | ||||
| Position | Size | Tolerance | Position | Size | Tolerance |
| A | 36 | ±0.2 | B | 31 | ±0.2 |
| C | 55 | ±0.3 | D | 48 | ±0.3 |
| E1 | 31 | ±0.2 | F1 | 13 | ±0.5 |
| E2 | 20 | ±0.2 | F2 | 4 | ±0.5 |
| G | 4 | ±0.1 | H | 5 | ±0.1 |
| I | 76.2 | ±0.5 | Frequency | 13.56Mhz | ±3% |

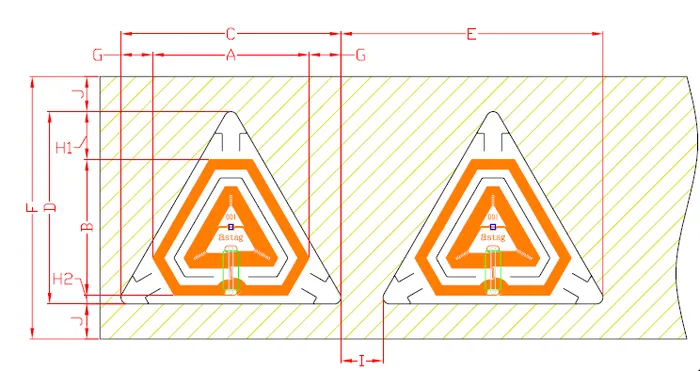

Label
| Label Size Information (Unit:mm) | |||||
| X axis | Y axis | ||||
| Position | Size | Tolerance | Position | Size | Tolerance |
| A | 36 | ±0.2 | B | 31 | ±0.2 |
| C | 50 | ±0.2 | D | 44 | ±0.2 |
| E | 60 | ±1.5 | F | 60 | ±1 |
| G | 7.27 | ±1.5 | H | 2.5 | ±1.5 |
| I | 9.66 | ±1.5 | J | 5 | ±1.5 |
| K | 76.2 | ±0.5 | Frequency | 13.56Mhz | ±3% |
Applications
- RFID Security Label.
- Theft Protection Label.
- Anti-Theft Label.
- Disposable label can be tamper resistant.
