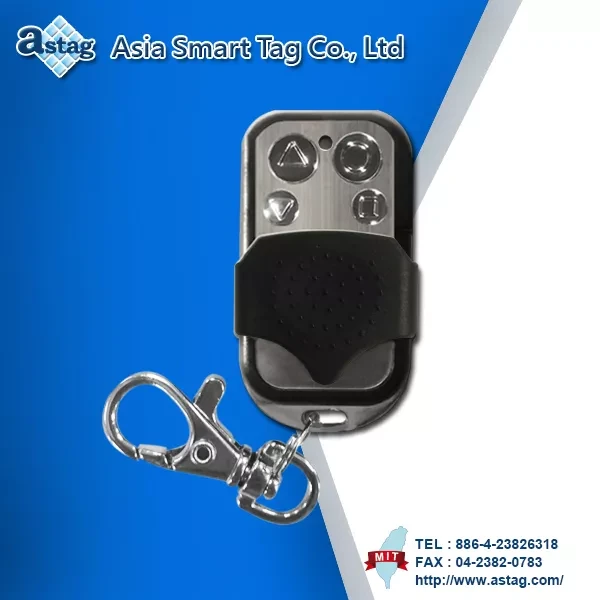

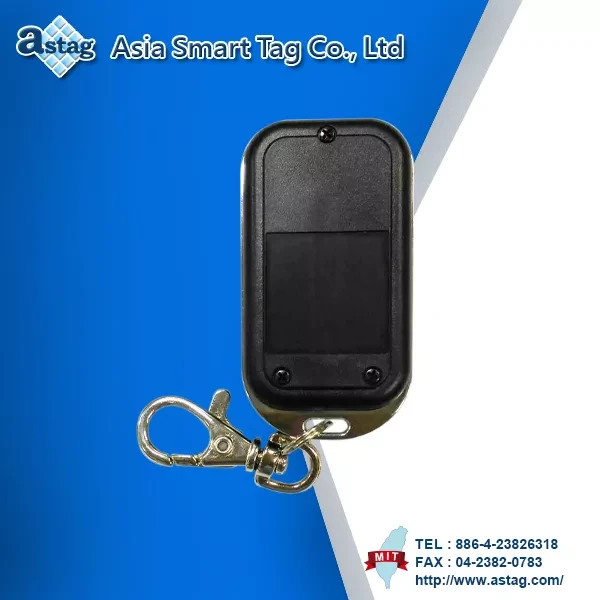

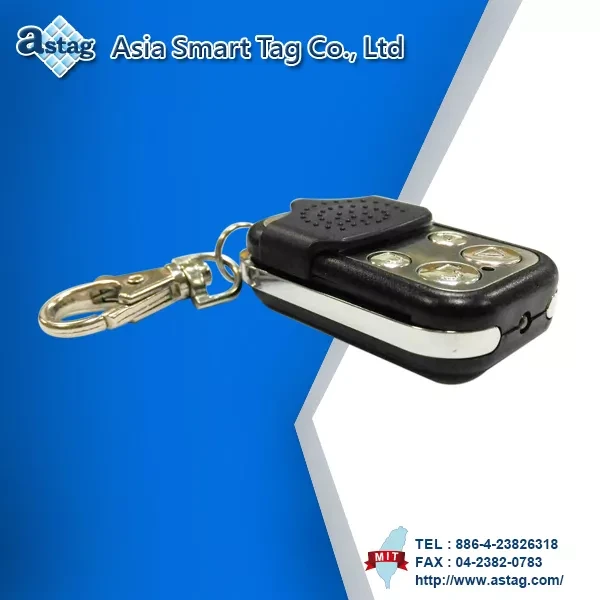

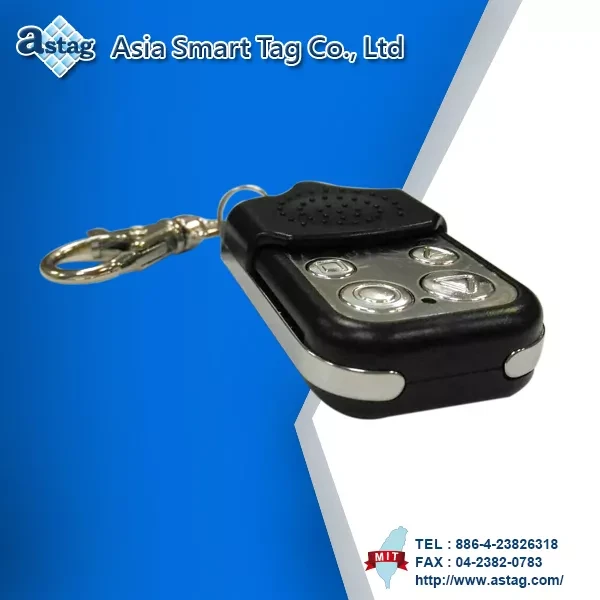

Remote Controller
Specifications
| Frequency |
315MHz (Can Customized) 320MHz (Default) |
|
|---|---|---|
| Code | Hopping Code | |
| Operation voltage | DC 12 V | |
| Consumptive current | 25mA Max | |
| Size | 58 x 32 x 15 mm(L x W x H) | |
| Battery | 12V / 23A | |
| Frequency channel |
Frequency Tuning-320MHz (Default) Fixed Frequency-315MHz Fixed Frequency-320MHz |
|
| Material |
ABS + Aluminum Fixed Frequency-(with LED) Frequency Tuning- (without LED) |
|
| Color |
Case: Black Stainless Steel Panel: Silver (Can Customized) |
|
| Buttons | 4 | |
| Key-Ring material | Steel、Iron、Zinc-Alloy | |
| Key-Ring weight | 8g | |
| Weight | 36.8g | |
- The remote controller has a lighting effect (with LED).
- Suitable for RH268R only, the RH268R frequency must be the same as the remote controller frequency.
- An RFID Mifare Label can be added inside (only suitable for fixed frequency), and the remote controller and access control host are two-in-one.
Applications
Can be used with the Roller Shutter Motor Receiver.
Product Inquiry
| Image | Product Name |
|---|---|
|

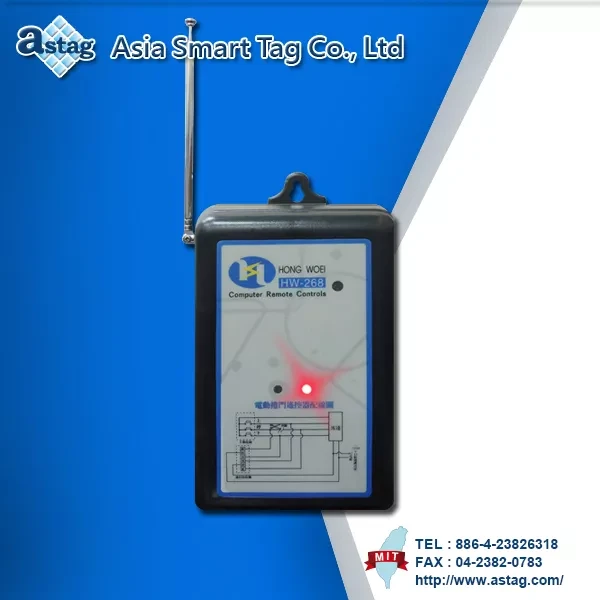

Roller Shutter Motor Receiver RH268TU |
