Remote Control Transmitter

Roller Shutter Motor Receiver

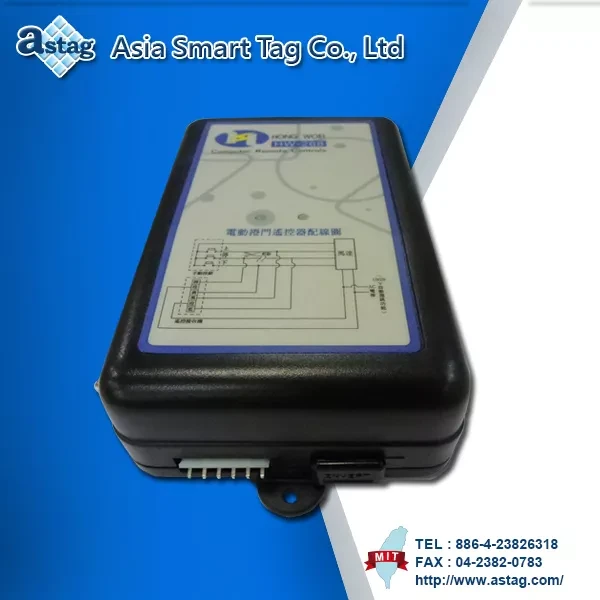

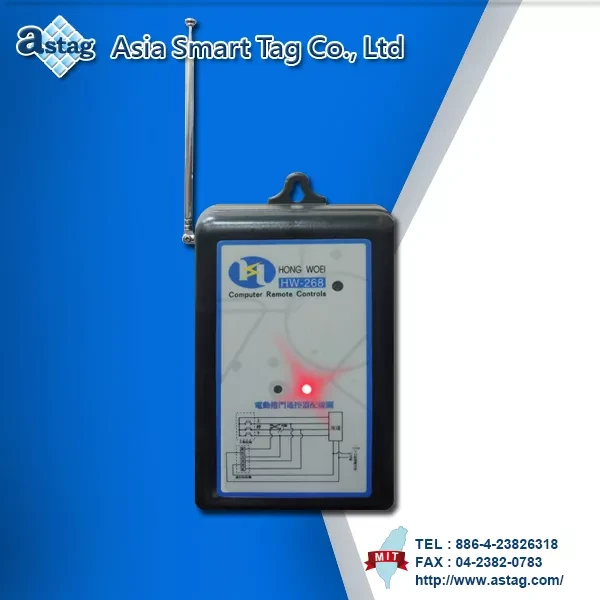

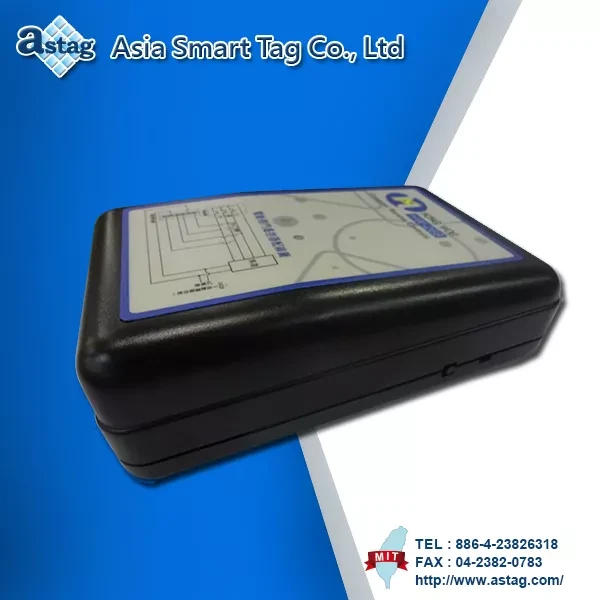

Type：RH268R

Frequency range	315MHz ; 320MHz ; 434MHz (Can Customized)
Code	Hopping Code
Output current	2A1B , 3A(Can Customized)
Consumptive current	98 mA
Sensitivity	-106 dbm
Noise equivalent BW NEB	4KHz Max
Max loading power	0.3 W
Input voltage	AC 110V / 220V
Output salf loading	AC 6A / 120V
Color	Black、Green (Customized color available)
Weight	400 g
Size	185 x 95 x 48 mm(L x W x H)

Coded system: Hopping code system.
Every Remote Control Transmitter owns unique independent code.
Easy installation & easy to use.
Hopping code system can prevent Remote Control from being copied: high security.
Can be utilized with electric roll-up shutter & electric high-speed door.
AC Input voltage range: AC 110V / 220V.

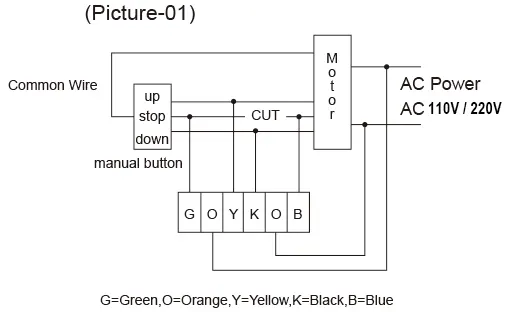

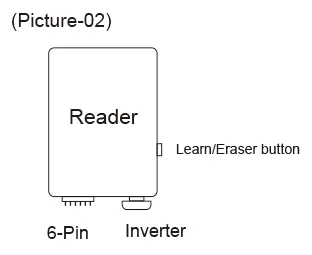

Interface

The coding method of the RH268R is a Hopping Code system. Each Remote Control Transmitter has its own independent code. The Hopping Code system can prevent the remote control from being copied, and has high security.
This product uses a microcomputer password combination with an anti-scanning and anti-copying design. There is no need to worry about password duplication to maintain the safety of residents.
It has AC power supply 110V/220V, automatic jump function, and up and down interchange function.
The RH268R has high induction reception and long remote control distance; the shell is sturdy and durable, and the wiring is simple.
The RH268R has a memory device, so if there is a power outage or power failure, the records stored in the host will not be lost.
