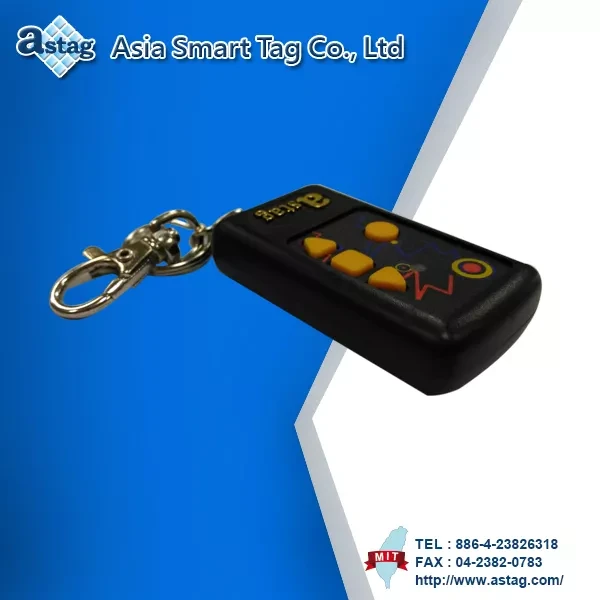

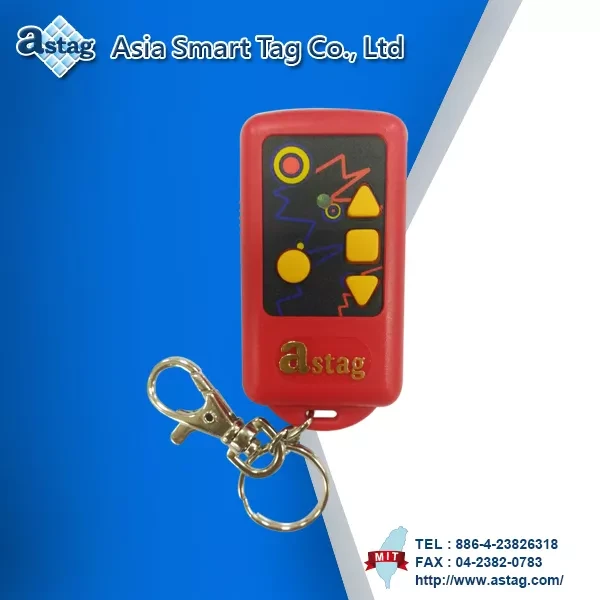

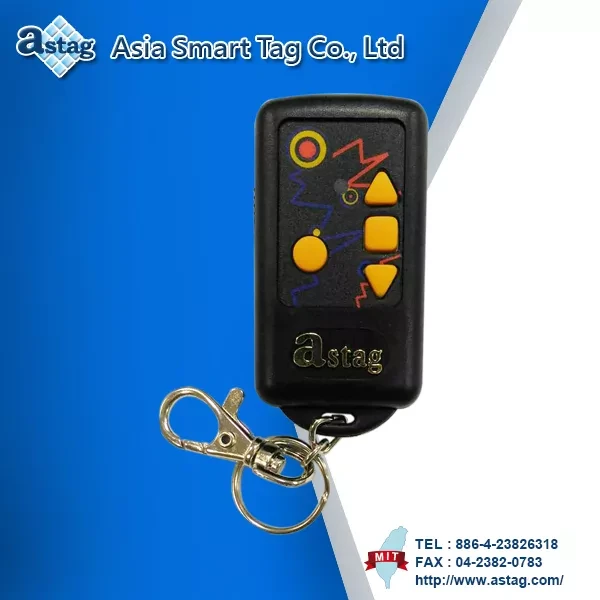

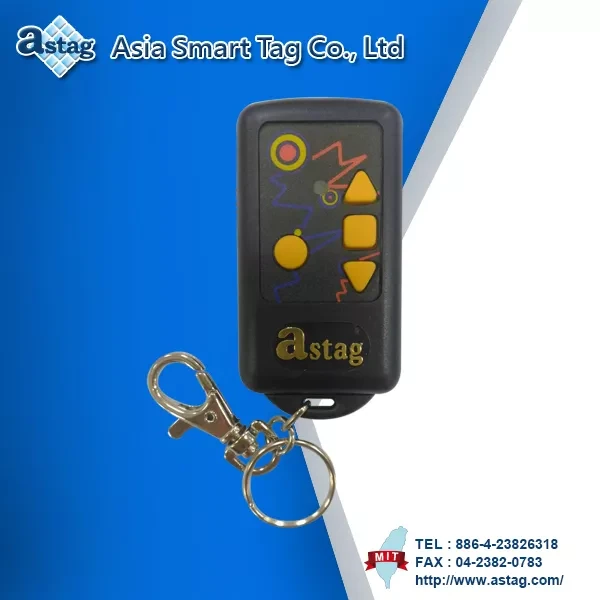

Remote Controller
Specifications
| Frequency |
315MHz (Can Customized) 320MHz (Default) |
|
|---|---|---|
| Code | Hopping Code | |
| Operation voltage | DC 12 V | |
| Consumptive current | 25mA Max | |
| Size | 68 x 35 x 14 mm(L x W x H) | |
| Battery | 12V / 23A | |
| Power switch | Yes | |
| Frequency channel | Frequency Tuning | |
| Material | ABS | |
| Color |
Black, Red, Blue ,Green (Can Customized) |
|
| Buttons | 4 & 5 | |
| Operating temperature | -20℃ ~ +50℃ | |
| Storage temperature | 0℃ ~ +70℃ | |
| Key-Ring material | Steel、Iron、Zinc-Alloy | |
| Key-Ring weight | 8g | |
| Weight | 35g | |
- Suitable for RH268R only, the RH268R frequency must be the same as the remote controller frequency.
Applications
Can be used with the Roller Shutter Motor Receiver.
