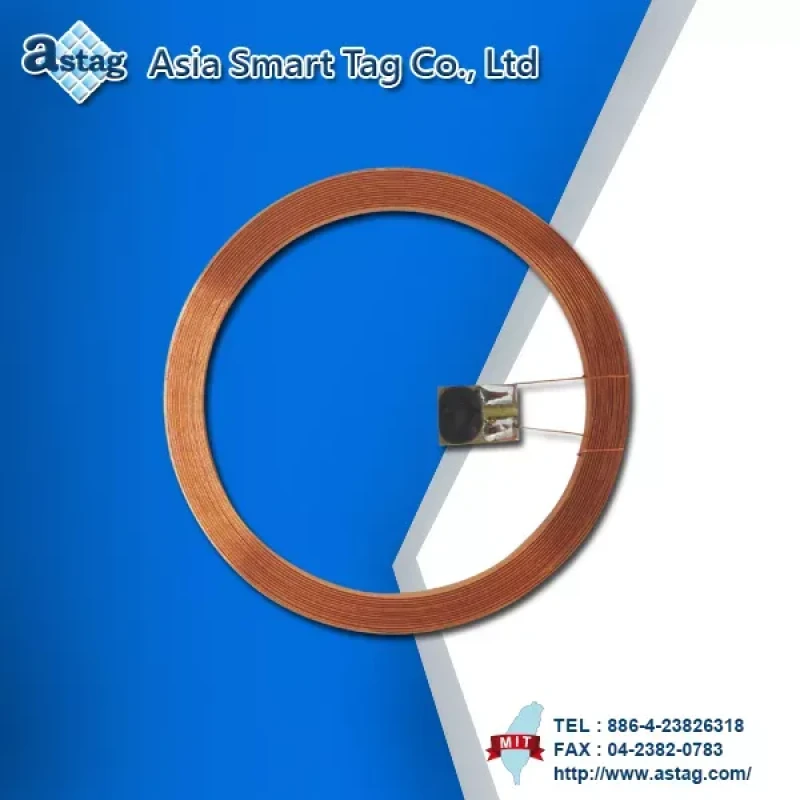

RFID EM coil+COB
Specifications
| Frequency | 125 KHz | |
|---|---|---|
| Read range | Up to 12 cm | |
| Testing reader | PRL578 | |
| Size | 31 x 0.38 mm(OΦ x H) IΦ : 2.5 mm(OΦ = outer diameter; IΦ = inner diameter) | |
| Material | Copper | |
| Operating temperature | -20℃ ~ +70℃ | |
| Package | 50 plate / carton | |
| IC ITEM | EM4100 | |
| EM4200 | ||
| EM4069 | ||
| EM4550 | ||
- Copper material.
- Size and shape can be customized.
- Different chips available, like mifare,icode, em.
Features

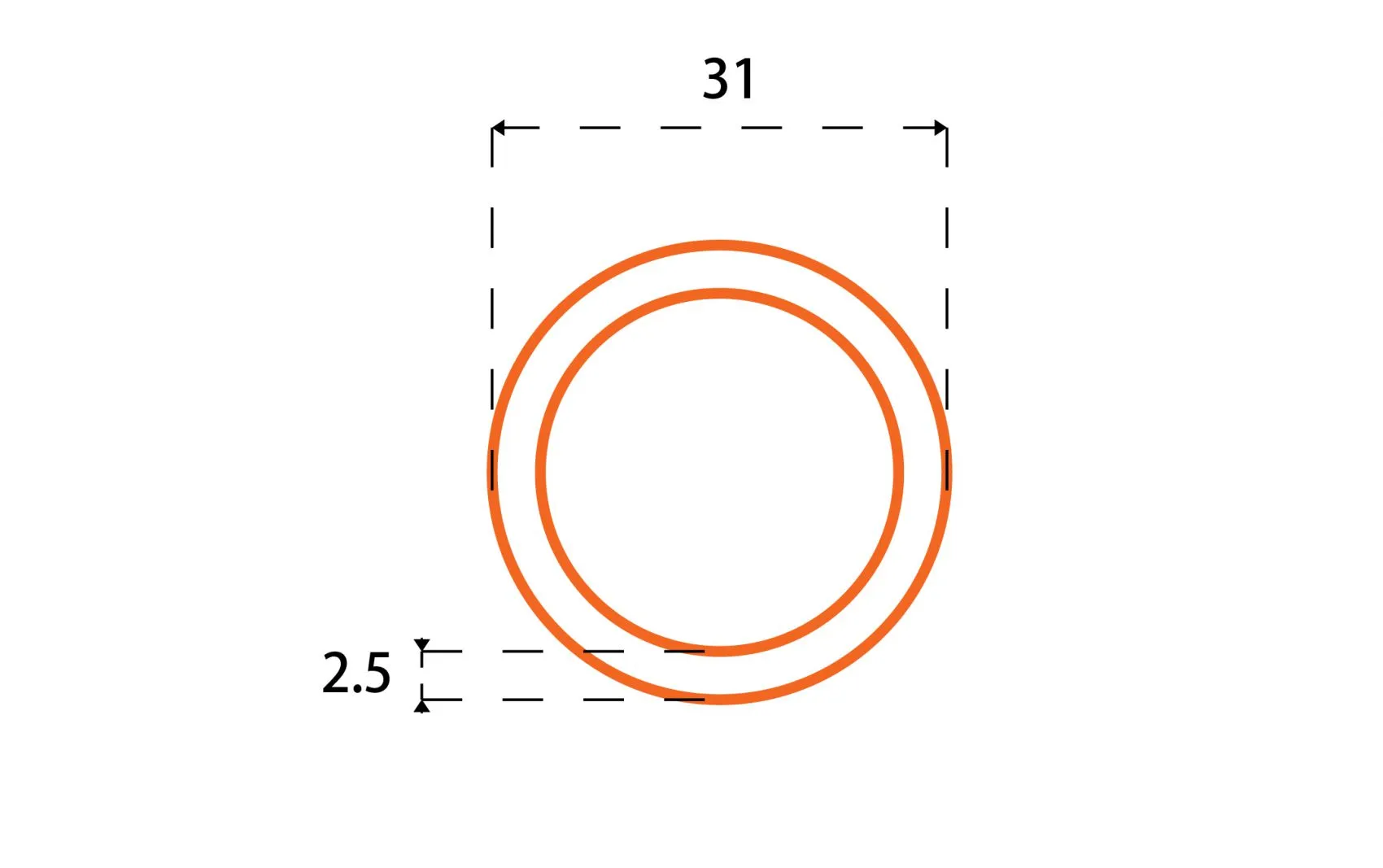

Dimensions
Applications
EMPLOYEE / STUDENT / CREDIT CARD Application
Applicable for employee ID, student ID, and credit card.
