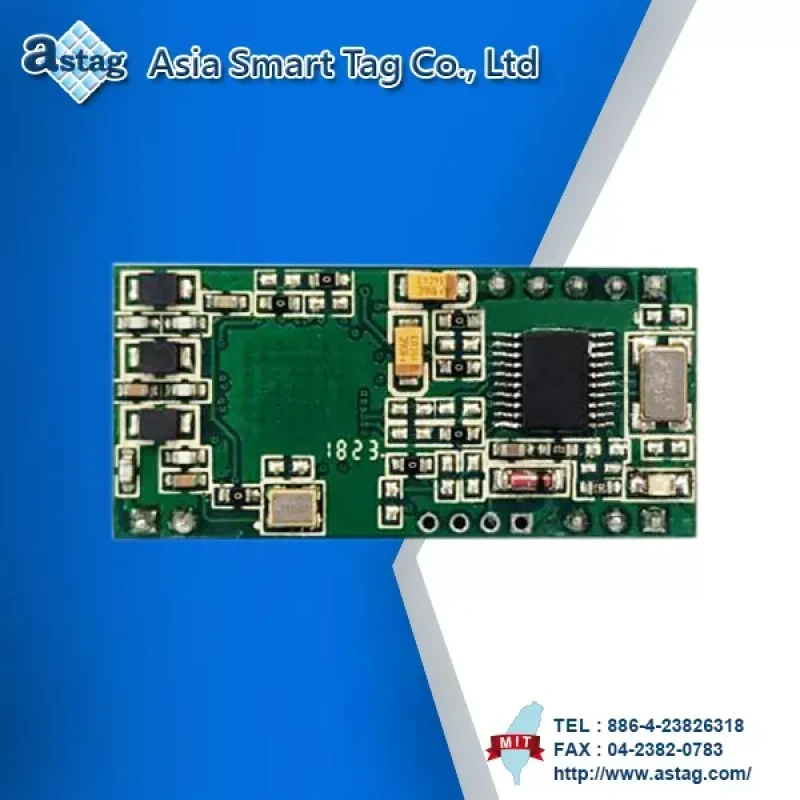

RFID HF Module
Description
- USB Keyboard wedge、TTL interface.
- Frequency Reader Module 13.56 MHz (frequency band).
- On-board Antenna.
- Data transmission can customizable.
- Support IC：Mifare standard series、Mifare desfire series、I-Code series、NFC series.
Specifications
| Product Name | RFID HF Module |
| Product No. | PMH-LL12-K |
| Frequency band | 13.56 MHz |
| Read range |
8cm ±1 cm (Antenna On Board) |
| Interface |
USB Keyboard wedge /TTL (customizable) |
| Baud-Rate | 115200, N, 8, 1 (customizable) |
| Input Voltage Range | DC 5V |
| Operating temperature | -30℃ ~ 70℃ |
| Storage temperature | -30℃ ~ 70℃ |
| Dimensions | 39(L) x 18(W) x 11(H) mm |
| Support |
Legic series card |
|
HF reader supports |
ISO-14443A/B |
| ISO-15693 |
Interface
| Product No. | PMH-LL12-K | PMH-LL12-T |
| Interface | USB Keyboard wedge | TTL |
Supported
| Standard | Manufacturer Tag Brand | UID | Read | Write |
| ISO 15693 | I-Code series | Y | Y | Y |
| TiTag series | Y | Y | Y | |
| Suitable ISO 15693 series | Y | Y | Y | |
| ISO 14443A | NFC series | Y | Y | Y |
| Mifare standard series | Y | Y | Y | |
| Mifare desfire series | Y | Y | Y | |
| Mifare Ultralight series | Y | Y | Y | |
| Mifare Plus series | Y | Y | Y | |
| Suitable ISO 14443A series | Y | Y | Y | |
| ISO 14443B | ATMEL series | Y | Y | Y |
Applications
- Access Control
- Inventory Management
- Asset Tracking
- Identity Recognition
- Data Access
