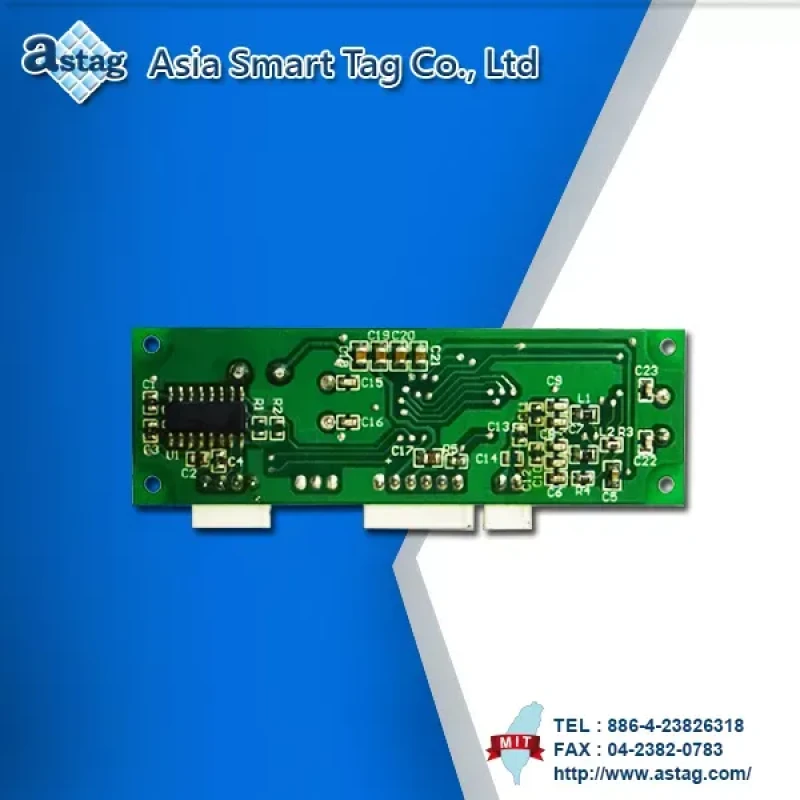

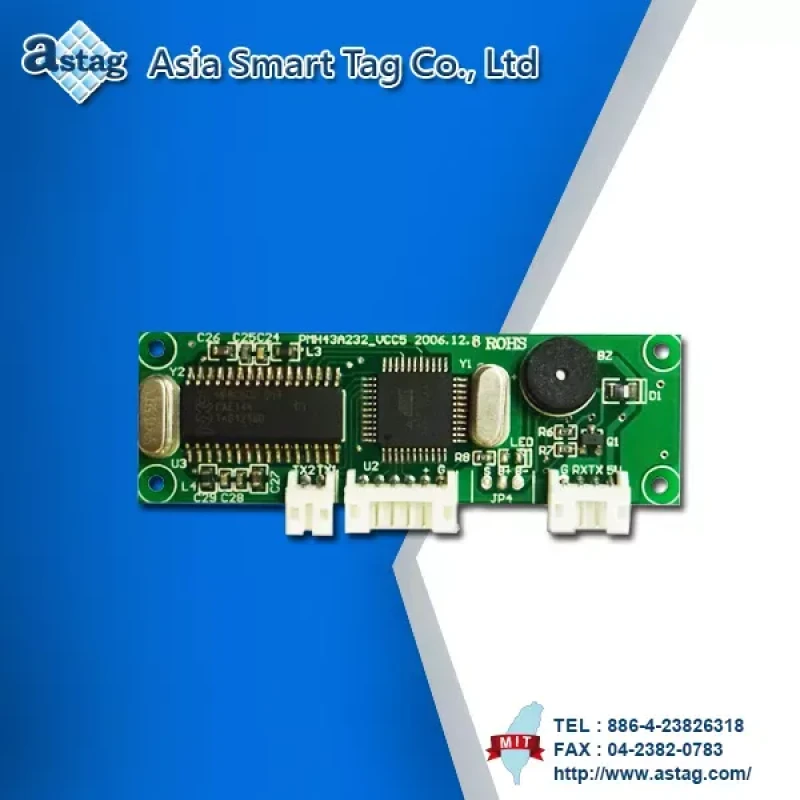

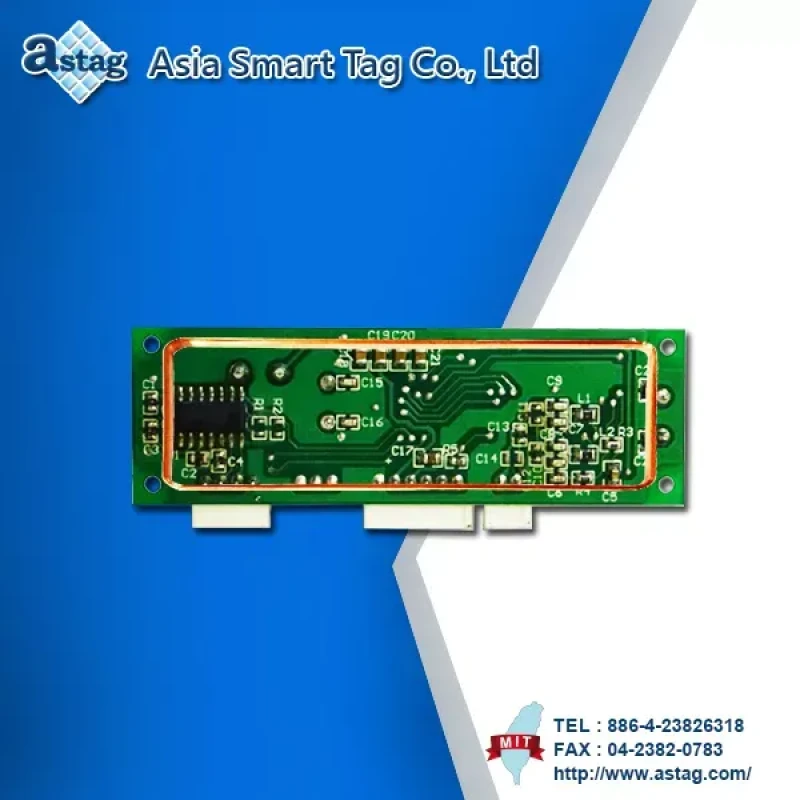

RFID HF Module
Description
- RS-232 interface.
- Frequency Reader Module 13.56 MHz (frequency band).
- External antenna connectivity.
- Data transmission can customizable.
Specifications
| Product Name | RFID HF Module |
| Product No. | PMH43A232_UCC5 |
| Frequency band | 13.56 MHz |
| Read range |
3cm ±1 cm (External Antenna) |
| Interface |
RS-232 (customizable) |
| Baud-Rate | 115200, N, 8, 1 (customizable) |
| Input Voltage Range | DC 5V |
| Dynamic mode | 400 mA |
| Operating temperature | -30℃ ~ 70℃ |
| Storage temperature | -30℃ ~ 70℃ |
| Dimensions | 70.8(L) x 25.7(W) x 6.4(H) mm |
| Audio / Visual Indication | Buzzer |
|
HF reader supports |
ISO-14443A |
| ISO-15693 |
Interface
| Product No. | PMH43A232_UCC5 |
| Interface | RS-232 |
Supported
| Standard | Manufacturer Tag Brand | UID | Read | Write |
|
ISO 15693 (IC: RC632) |
I-Code series | Y | Y | Y |
| TiTag series | Y | Y | Y | |
| Suitable ISO 15693 series | Y | Y | Y | |
|
ISO 14443A (IC: RC500、RC632) |
NFC series | Y | Y | Y |
| Mifare standard series | Y | Y | Y | |
| Mifare desfire series | Y | Y | Y | |
| Mifare Ultralight series | Y | Y | Y | |
| Mifare Plus series | Y | Y | Y | |
| Suitable ISO 14443A series | Y | Y | Y |
