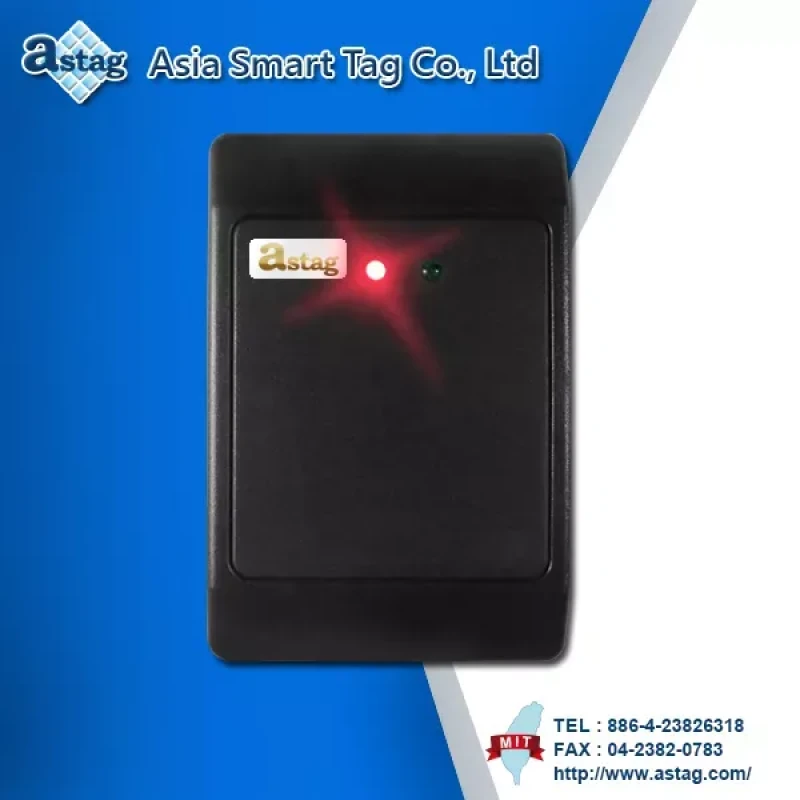

RFID HF Reader - RS-485
RFID HF Reader - RS-485
Type：PRH-578D
Frequency：13.56 MHz
Read range：8 cm(depend on Tag)
Read range：8 cm(depend on Tag)
Specifications
| Frequency band | 13.56 MHz |
| Read range | Up to 8cm (depend on Tag) |
| Host interface | UART |
| Wiegand | |
| RS-232 | |
| RS-485 | |
| BLE | |
| WiFi (option) | |
| ISO standard | ISO-14443A/B/C |
| ISO-15693 | |
| Modulation | ASK |
| FSK | |
| PSK | |
| Transfer rate | Up to 848 Kbit/s in both directions |
| UART data rate | 57600, N, 8, 1(customizable) |
| Input voltage range | DC 12V |
| Current consumption (Dynamic Mode) |
93 mA |
| Current consumption (Standby) |
4 mA |
| Operating temperature | -30℃ ~ 75℃ |

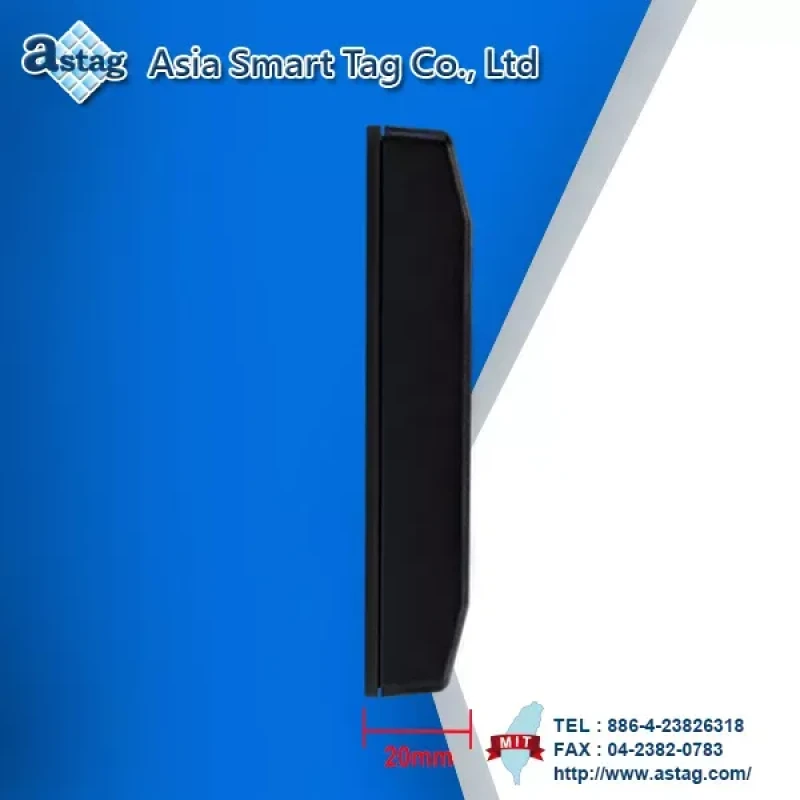

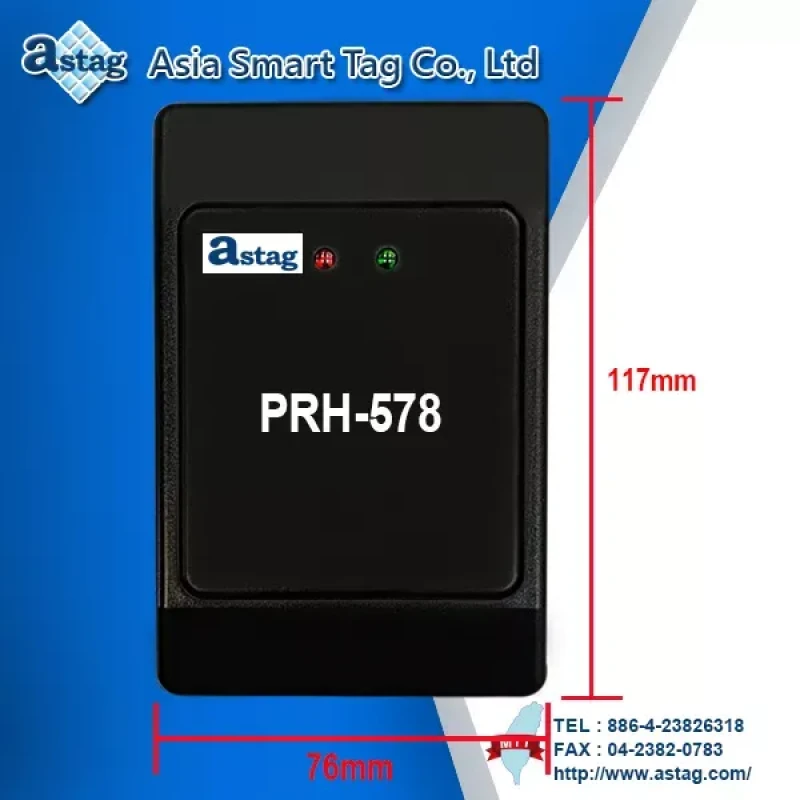

| Dimensions | 117 x 76 x 20mm (L x W x H) |
Features
1. Supports：These interfaces allow the module to communicate with external devices such as computers(Windows 10/11), microcontrollers, or network servers.
2. Supports IC：Mifare standard series、Mifare desfire series、I-Code series、NFC series.
3. Function：HF RFID reader may include security features such as encryption and authentication to prevent unauthorized access or data tampering.
4. Advantages：HF RFID readers play a crucial role in enabling efficient and automated identification and tracking processes across various industries.
Interface
| Product number | PRH578R | PRH578U | PRH578I | PRH578W |
| Interface | UART | USB | I2C | Wiegand |
| Product number | PRH578B | PRH578D | PRH578L | PRH578F |
| Interface | RS232 | RS485 | BLE | WIFI |
Supported
| Standard | Manufacturer Tag Brand | UID | Read | Write |
| ISO 15693 | I-Code series | Y | Y | Y |
| TiTag series | Y | Y | Y | |
| Suitable ISO 15693 series | Y | Y | Y | |
| ISO 14443A | NFC series | Y | Y | Y |
| Mifare standard series | Y | Y | Y | |
| Mifare desfire series | Y | Y | Y | |
| Mifare Ultralight series | Y | Y | Y | |
| Mifare Plus series | Y | Y | Y | |
| Suitable ISO 14443A series | Y | Y | Y | |
| ISO 14443B | ATMEL series | Y | Y | Y |
Applications
1. Access management
2. Access control
3. Asset tracking
4. Inventory management
