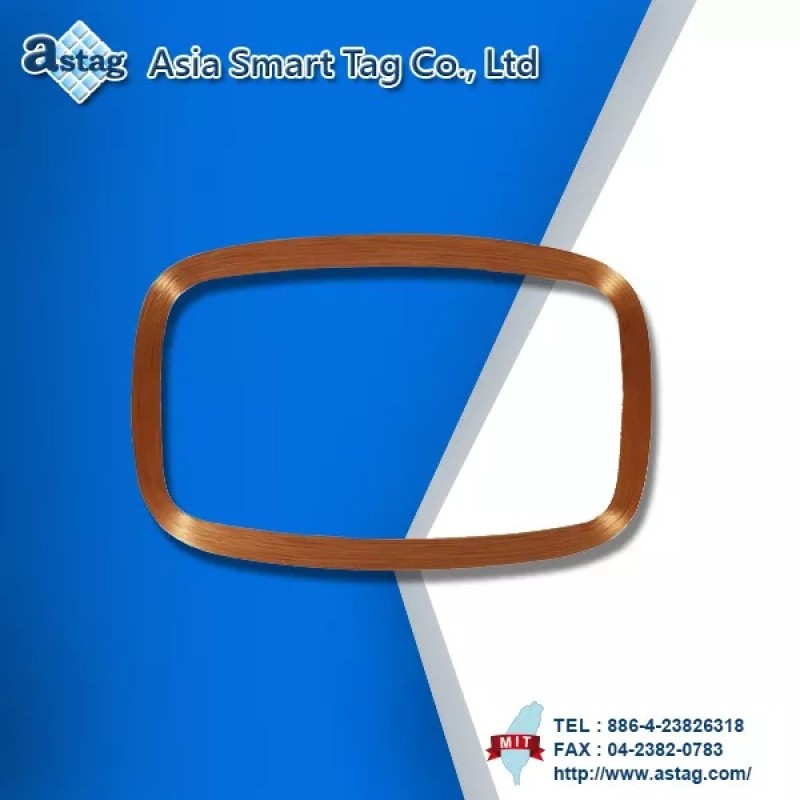

RFID LF Antenna
Specifications
| Frequency | 100-150 KHz | |
|---|---|---|
| Material | Copper wire | |
| Size | 47.5 x 31.5 mm | |
| Wire diameter | 0.09 mm | |
| Inductor value | 5.0 mh ±3% | |
| Resistance | 115Ω | |
| Thickness | 0.55 mm | |
| Number of turns | 200 | |
| ROHs | OK | |
| Temperature | -40 ° C to +200 ° C | |

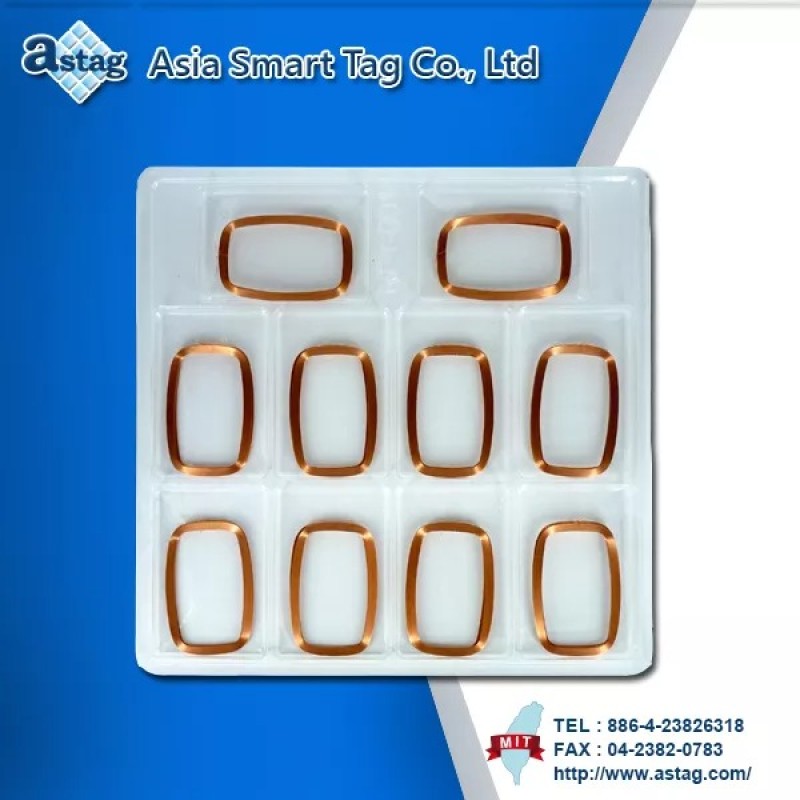

| Packing | Plate 50pcs, case 500pcs | |
- Rfid low-frequency induction IC can be applied to the matching or other needs.
- "Antenna" powered by Diameter, appearance, coil size, size, thickness can be customized.
Features

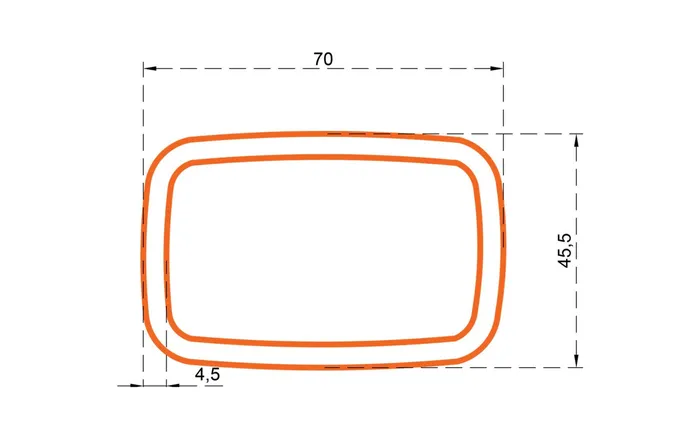

Dimensions
Applications
Access Control Card / RFID Card
Can be used in the employee card, student card, credit card.
Product Inquiry
| Image | Product Name |
|---|---|
|
RFID LF Antenna POL03A |
