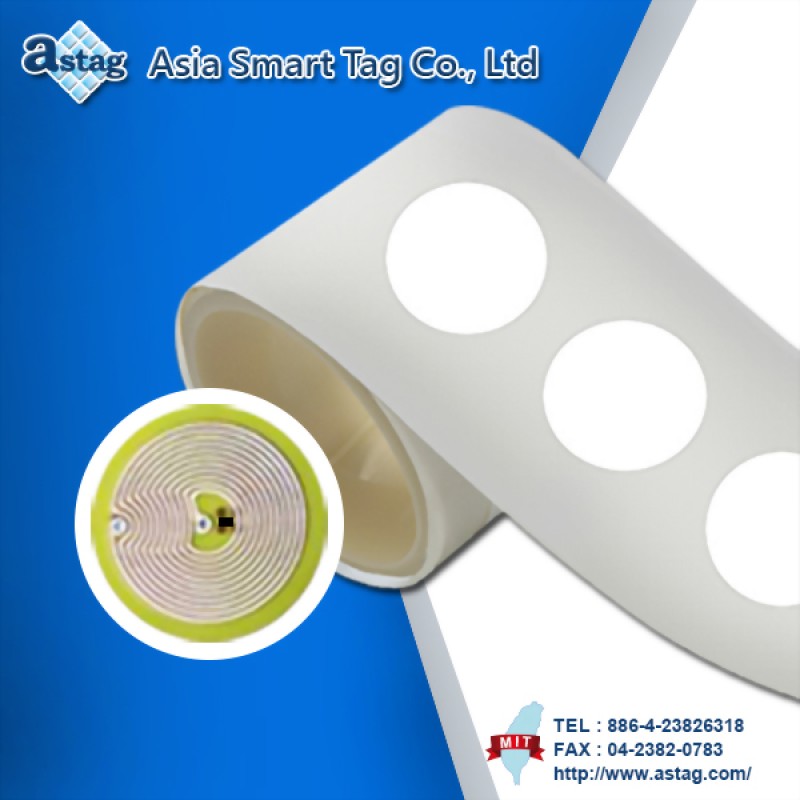

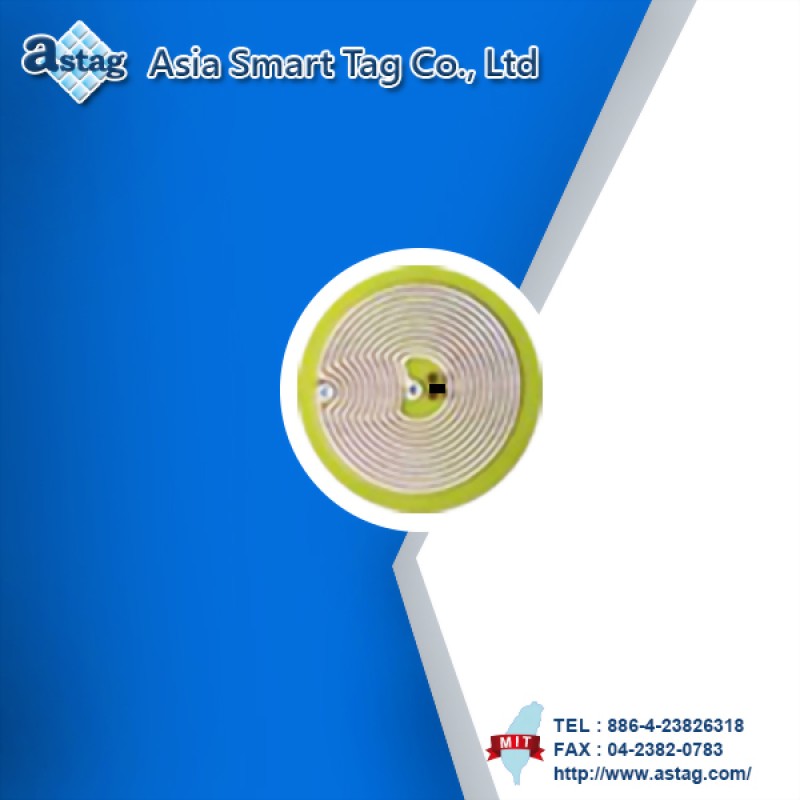

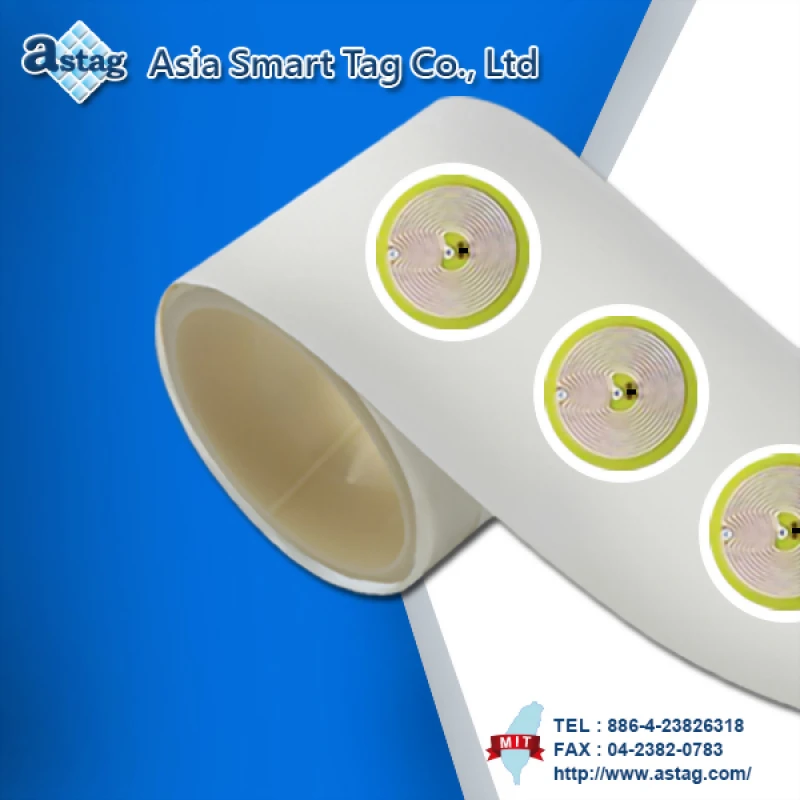

RFID Label
Specifications
| Product | RFID HF Label | |
| Iteam number | PLH-Q010 | |
| Size | Ø10 mm | |
| Frequency band | 13.56 MHz ±3% | |
| Read range (Depends on the reader) |
Up to 3cm | |
| Testing reader | PRH578 | |
| Transmission principle | passive | |
| Antenna substrate | PET | |
| Antenna material | Copper | |
| Label Cover material | Glossy Paper (PP PEPA Paper) | |
| Tube material | ABS | |
| Tube size | 3 Inch | |
| Package | 1000 pcs/roll , 4 roll/carton | |
| Operating temperature | -30°C ~ 75°C | |
| Storage temperature | -20°C ~ 75°C | |
| ISO standard | ISO-14443A / ISO-14443B / ISO 15693 | |
| IC item | Mifare standard series / I-Code series Mifare desfire series /NFC series / ST25T series ※Any IC is acceptable (customizable) |
|
Applications
- Can be used for car management, logistics management, warehouse management, access control management, and has a wide range of practicality.
- Stable quality.
- Easy to track and manage.
- Customized service.
