RFID Label
Specifications
| Product | RFID UHF Label | |
| Iteam number | PLU-100003 | |
| Size | 100 x 3 mm(L x W) | |
| ISO standard | ISO 18000-6C / EPC-C1G2 | |
| Frequency band | 860 ~ 868 MHz；902 ~ 928 MHz | |
|
Read range |
Up to 7m | |
| Testing reader | PRU29 | |
| Antenna substrate | PET | |
| Antenna material | aluminum | |
| IC | H3 | M4 |
| EPC Memory | 96 bit | 128 bit |
| TID Memory | 96 bit | 96 bit |
| Operating Temperature | -20°C ~ 60°C | |
| Storage temperature | -20°C ~ 75°C | |
| Package | 2000 pcs/roll , 4 roll/carton | |
| IC item |
ALIEN H3 / ALIEN H9 Impinj R6 / Impinj M830 NXP U Code 8 / NXP U Code 9 |
|
Features

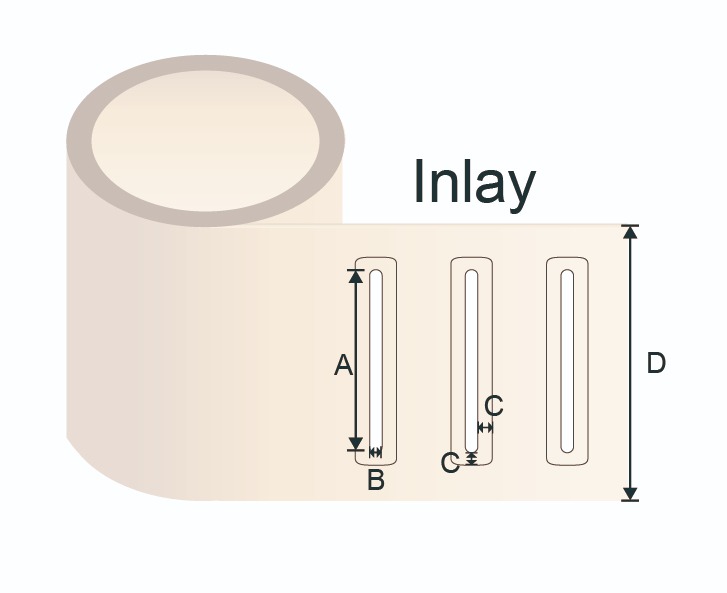

| Inlay Size Information | (Unit:mm) | ||||
| Position | Size | Tolerance | Position | Size | Tolerance |
| A | 100 | ± 0.2 | C | 4.5 | ± 0.2 |
| B | 3 | ± 0.2 | D | 110 | ± 0.2 |
Applications
- Can be used for car management, logistics management, warehouse management, access control management, and has a wide range of practicality.
- Stable quality.
- Easy to track and manage.
- Customized service.
