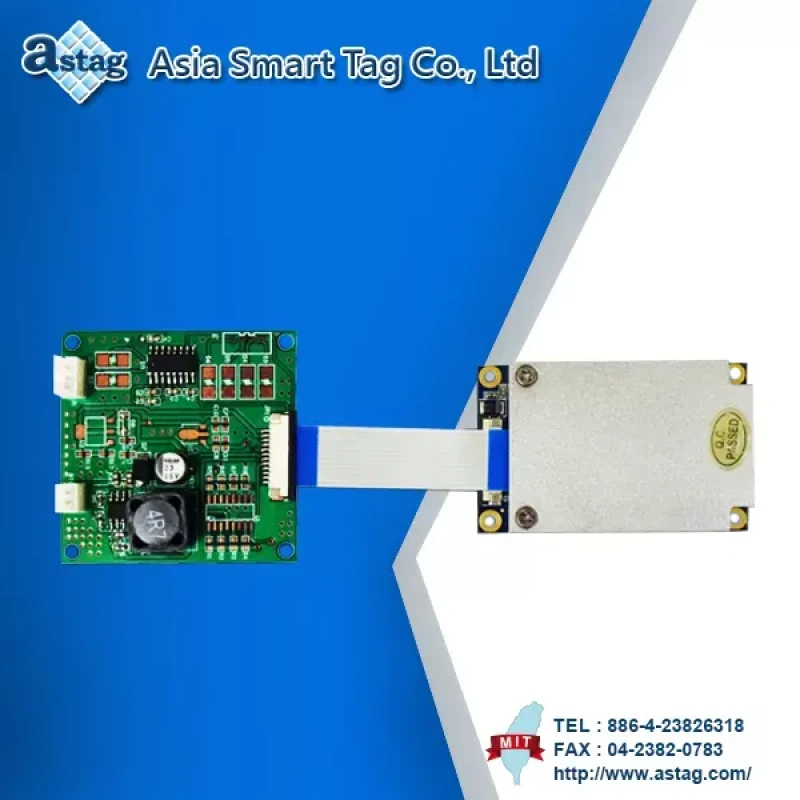

RFID UHF Module
Specifications
| Product Name | RFID UHF Module |
| Product No. | PRUM1IR2RP1/PRUM1IR2BP1 /PRUM1IR2DP1 /PRUM1IR2WP1 |
| Interface | UART |
| RS-232 | |
| RS-485 | |
| Wiegand (option) | |
| Channel bandwidth | 250 KHz(customizable) |
| Frequency hopping speed |
≤ 2 s |
| Tag protocol | EPC C1G2 |
| ISO18000-6C | |
| Muti-tags | 400/s |
| Working voltage | 12 V |
| Max TX power | 30 dBm |
| Stepping interval | 1 dB |
| Working current | 800 mA |
| Current consumption (Standby) |
≤ 100 mA |
| Operating temperature | -30℃ ~ 75℃ |
| Storage temperature | 0℃ ~ 70℃ |
| Dimensions | 157(L) x 50(W) x 8.7(H) mm |
- UHF RFID Reader uses R2000 chips,it max power output is 30dBm.
- Maximum identifying speed can reach 400 tags/sec.
- Many external ports, Including RS232, GPIO*3, can meet different client’s requirement.
- Excellent read and write performance, it is suitable for complicated environment application, for example logistics, clothing, asset management etc.
Interface
| Product number |
PRUM1IR2RP1 | PRUM1IR2BP1 | PRUM1IR2DP1 | PRUM1IR2WP1 |
| Interface | UART | RS232 | RS485 | Wiegand |
