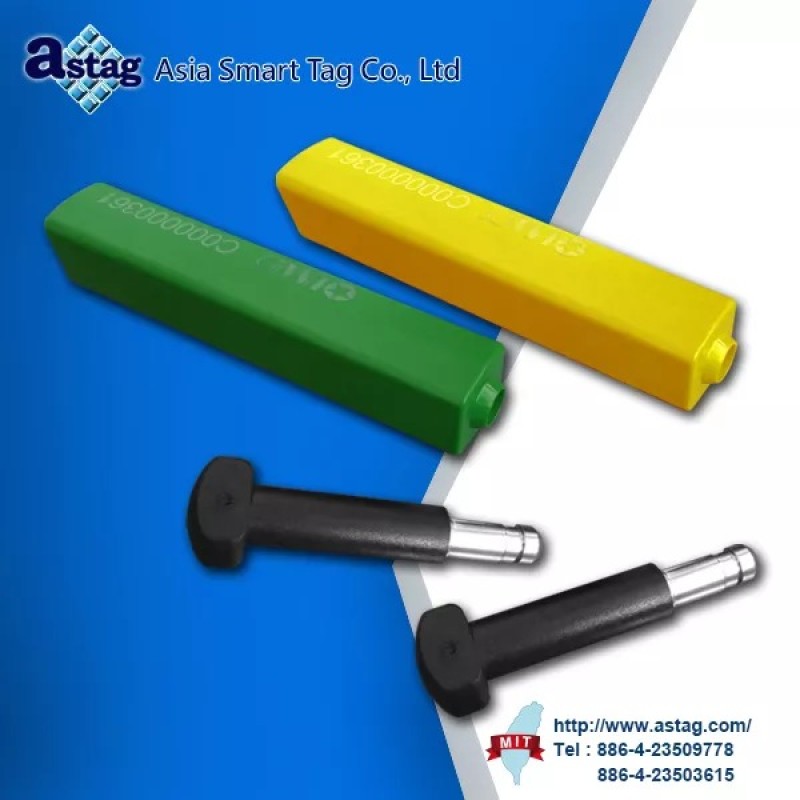

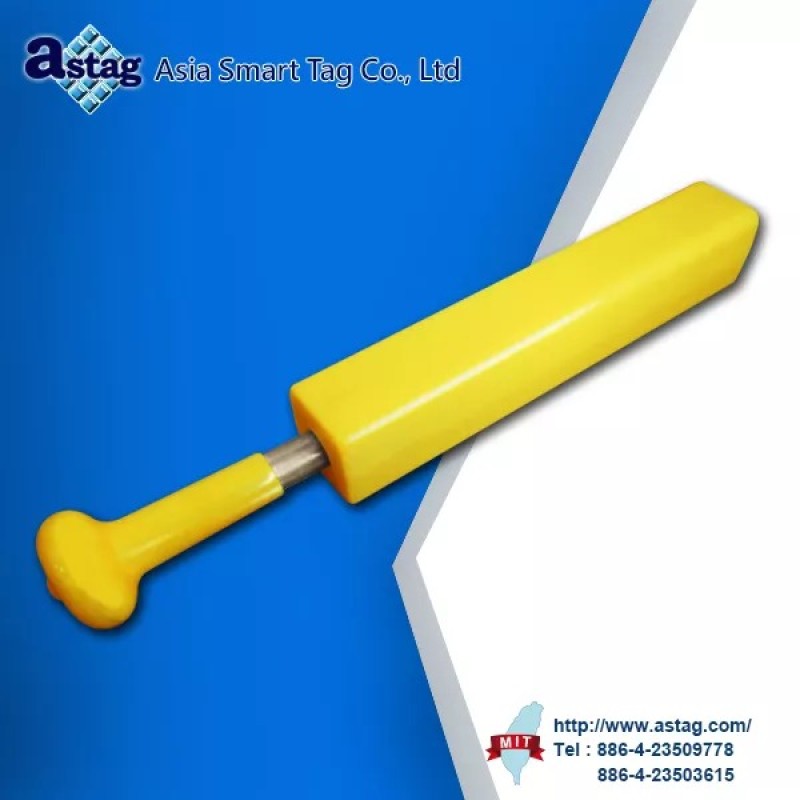

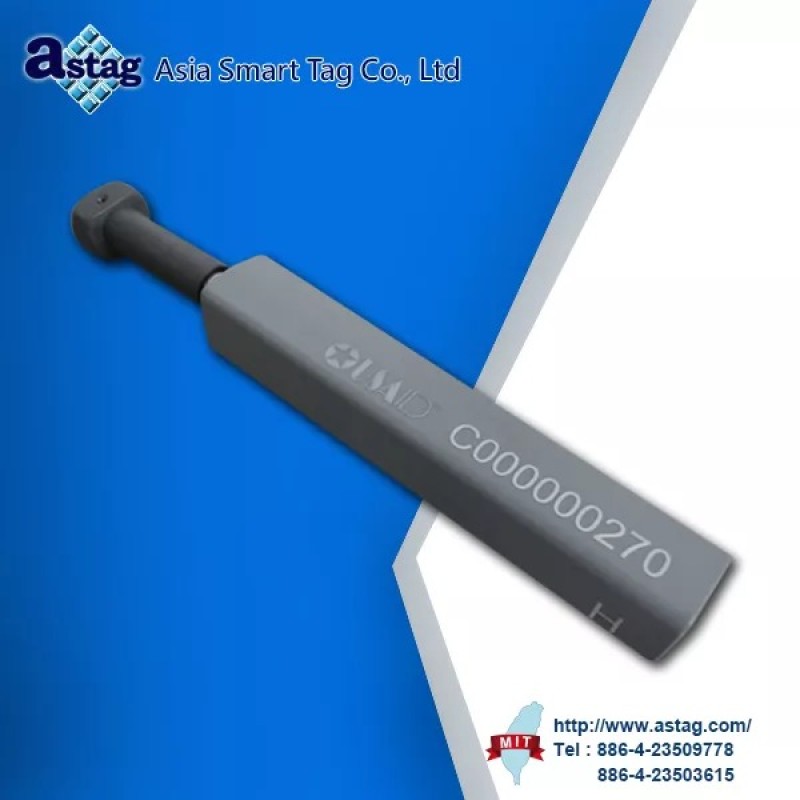

Seal PTUI7

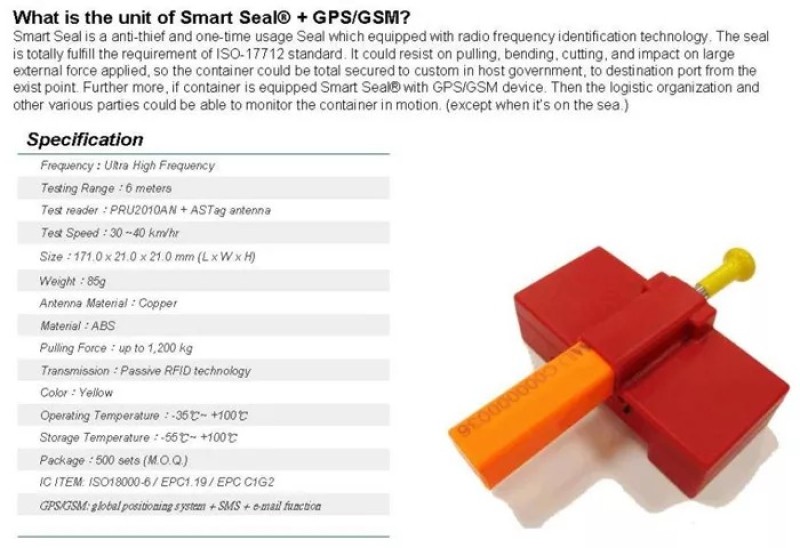

Specifications
| Frequency | 868 MHz；902~928 MHz | |
|---|---|---|
| Read range | 6 m | |
| Testing reader | Standard PRU2010BR、PRU461 | |
| Testing velocity | 70 km | |
| Size | 171 x 21 x 21 mm(L x W x H) | |
| Weight | 85 g | |
| Shell material | Copper、Iron | |
| Antenna material | Copper | |
| Material | ABS | |
| Transmission | Passive | |
| Max pulling force | Conform to ISO-17772 | |
| Color | Red、Yellow、Black、Gray、Green(can be customized) | |
| Operating temperature | -20℃ ~ +70℃ | |
| Storage temperature | 0℃ ~ +70℃ | |
| Package | 500 sets（M.O.Q.） | |
| Protocol | EPC-C1G2 / ISO 18000-6C | |
| IC ITEM | TI / NXP UCODE EPC G2 / Impinj Monza 4 / Alien H3 | |
| GPS / GSM | Global Positioning System / SMS + E-mail Function | |
Features
This will increase the safety of container movement and ensure the safety of container movement, thereby effectively reducing the customs clearance cost of the industry, while preventing illegal smuggling and creating a safe and convenient customs clearance environment.
- Can not be reused.
- Prevent tampering with data.
- Prevent counterfeiting.
- Fast pass.
Applications

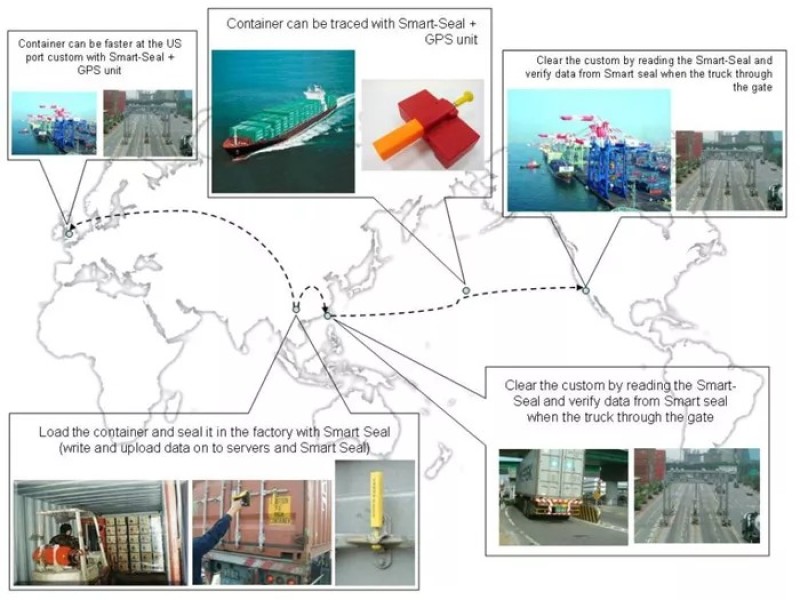

TRANSPORTATION MANAGEMENT

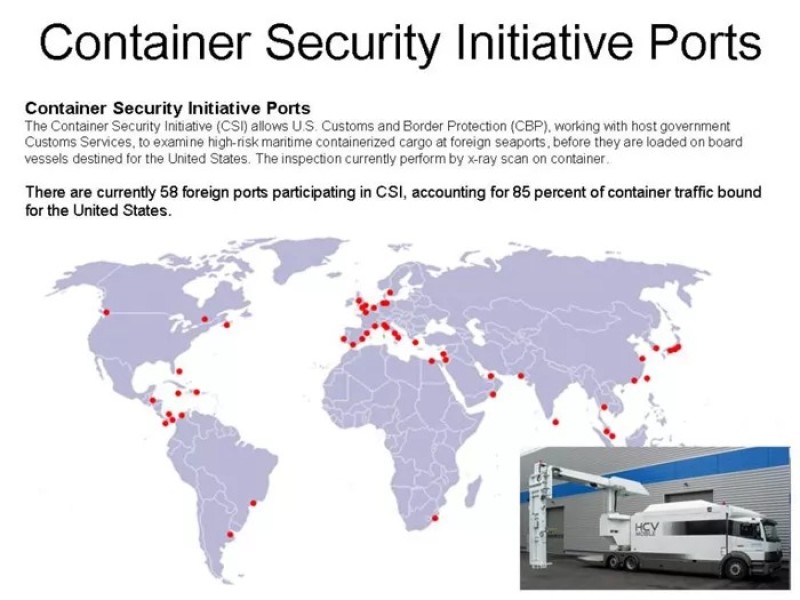

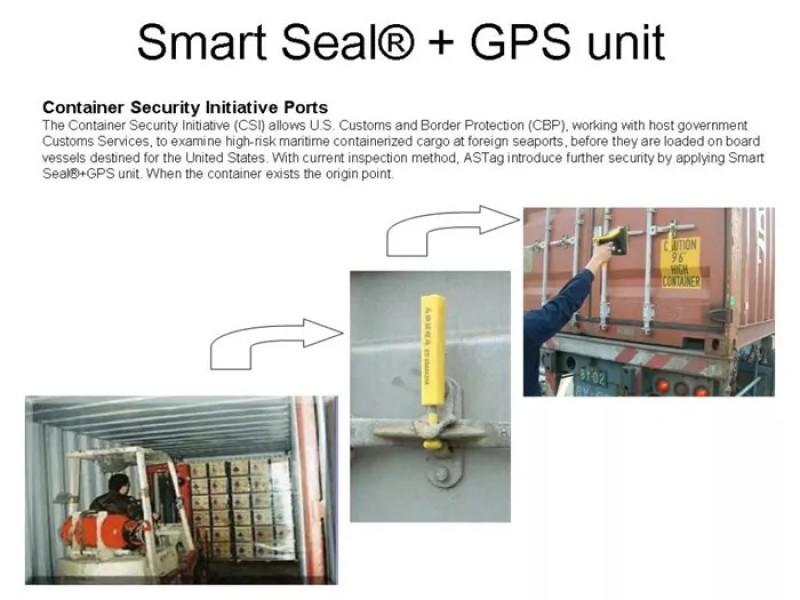

Since the tragic September 11 attacks, there's a highlighted need from US government for terrorist attacks prevention and security. In the US government security plan, it includes RFID H/W, smart seal, etc. to prevent destruction of container or illegal smuggling at safe and scalable solution. These technologies are also used at Taiwan's custom border. Other application: prisoners transportation, oil transportation, or any other transportation that require extreme high level security protection.
