RFID LF Password & Proximity Card Reader
RFID LF Password & Proximity Card Reader
Type：PRL-5078
Frequency：125 KHz
Read range：15 cm
Model : PRL-5078
Read range：15 cm
Model : PRL-5078
Specifications
| Frequency band | 125 KHz | |
|---|---|---|
| Read range | 15 cm (Proximity Card) | |
| Reading time | 0.1 Sec | |
| Operating time | 0.6 Sec | |
| P.I.N.code | 4 Digital | |
| Output interface | RS-485、Wiegand 26 bits | |
| ISO standard | ISO 11785 | |
| Output relay | DC 5 A / 12 V | |
| Power supply input | DC 12 V | |
| Stand by current | 67 mA | |
| Operating current | 127 mA | |
| Card max capacity | 6000 | |
| Memory max capacity | 12000 | |
| Baud rate | No | |
| Operating temperature | -30°C ～ +75°C | |
| Storage temperature | 0°C ～ +75°C | |
| Weight | 240 g | |

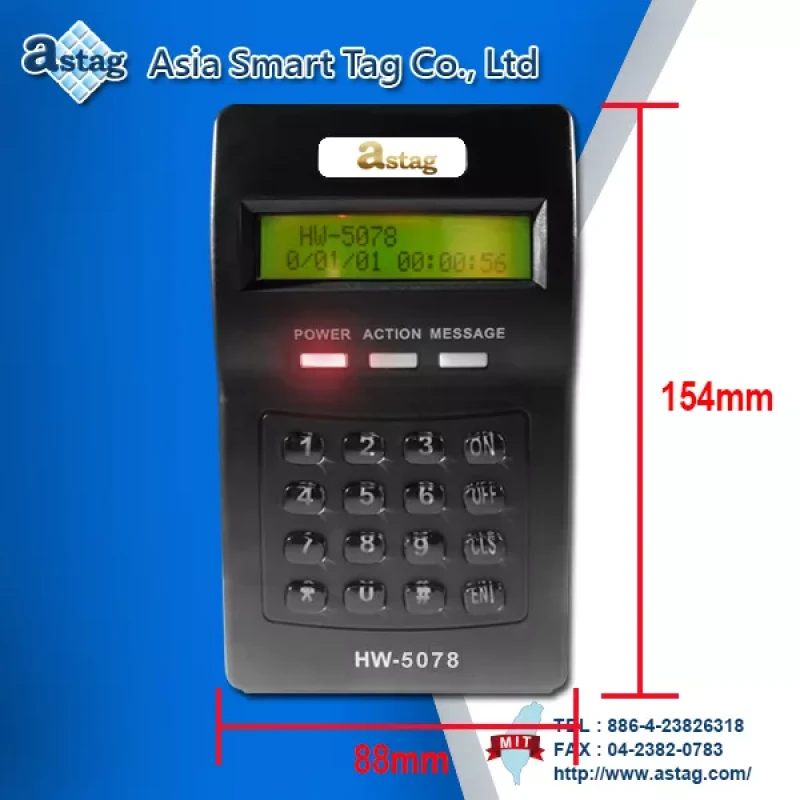

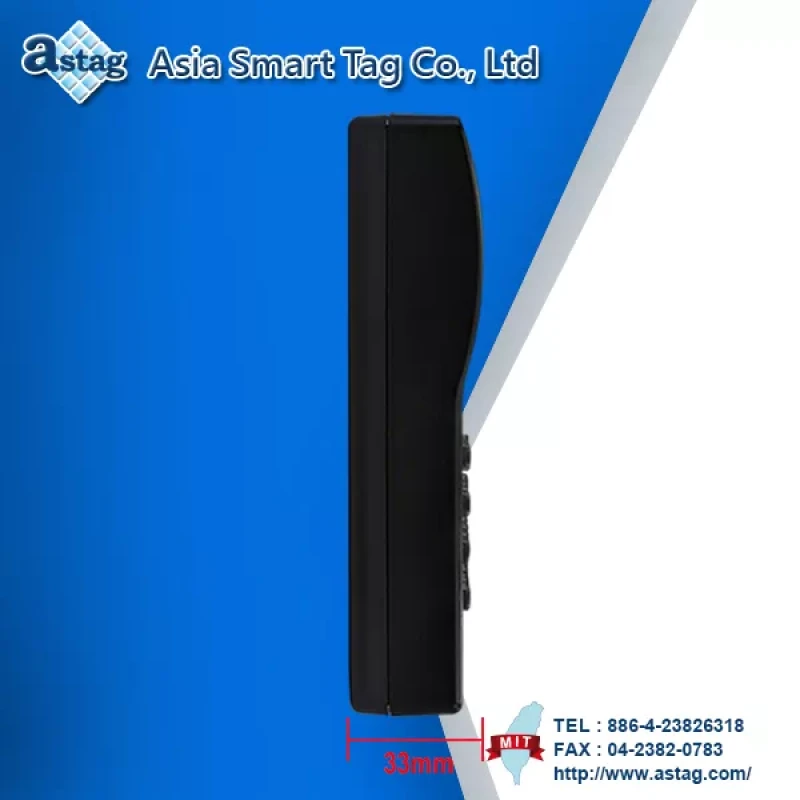

| Size | 154 x 88 x 33 mm(L x W x H) | |
- Password or Proximity Card is available.
- Maximum reading ranges 15cm.
- The capacity is 2000/ 6000/ two installation.
- Random card numbers is available.
- Large LCD screen and 16 keypads. Displaying 16 characters x 2 lines.
- LCD screen can display the Model, Date and Time when standby.
- Reader can record the data of come in and go out.
- The Original installation is 1000 records.
- Set up 3000/ 5000/ 7000/ 9000/ 12000 records that depend on the customers.
- Inquiring the data from Reader directly.
- Built-in the watch output. Compatible with the monitor system.
- Built-in tamper switch detects if case is under force.
- Increasing and deleting card numbers by keyboard directly.
- Set up the functions by keyboard directly. LCD display.
- Reader's memories are never deleted even if power failure.
- Sensor and Alarm will be started when the door is unlocked or under force.
- Compatible with the Reader (Wiegand 26 bit).
- Separating HW-5055 and Reader (Wiegand 26 bit) too indoors and outdoors.
Features
Applications
1. Identity Recognition
2. Access Control
3. Access Management
